Ecler WPaVOL-SR-J Remote Wall Panel Volume & Source Selector with Mini Jack Input

Name: Ecler WPaVOL-SR-J Remote Wall Panel Volume & Source Selector with Mini Jack Input
Brand: Ecler
Price: 102.73 GBP
Availability: InStock

Price Each £85.61 (£102.73 Including VAT at 20%)

REF: JP115424

Quantity:

Ecler WPaVOL-SR-J Remote Wall Panel Volume & Source Selector with Mini Jack Input

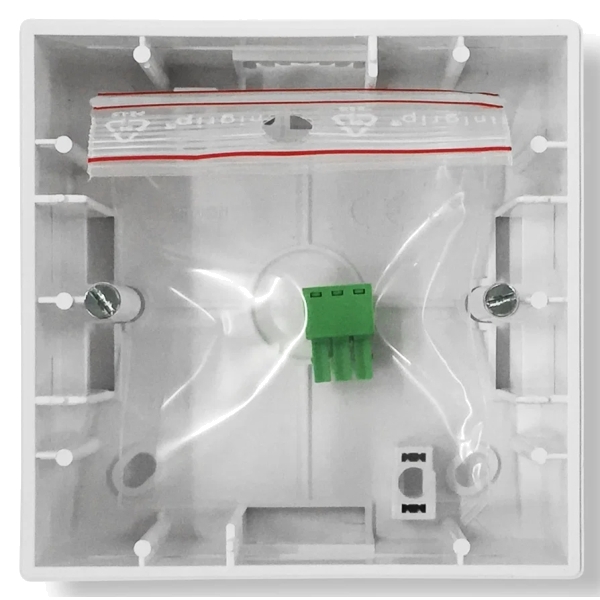

The Ecler WPaVOLSRJ Remote Wall Panel is a remote wall panel control for one volume management and source or preset selection. Compatible with all 0-10V DC REMOTE control port with front panel stereo mini-jack connector. Surface-mount installation box included (WxHxD = 86 x 86 x 38mm).

WPa is a series of remote control wall panels for systems and interconnecting audio signals, with a modern, elegant, discrete aesthetic, designed in collaboration with Italdesign Giugiaro.

Click Here for Printer Friendly Version

Ecler WPaVOL-SR-J Remote Wall Panel Specifications

- Installation options: Surface, in-wall
- Operating temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Operating humidity: <85% HR
- Storage temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Storage humidity: <90% HR
- Finished colour: White (RAL 9016)
- Dimensions with surface-mount box (W x H x D): 86 x 86 x 38 mm
- Weight: 0.13 kg
- Pieces per box: 1 unit

Further Product Information Below

Ecler WPa-Series Manual (PDF)

Ecler WPaVOLSRJ Data Sheet (PDF)

Ecler WPaVOL-SR-J Remote Wall Panel Supplied With

- 1x Ecler CWPAVOLSRJ
- Euroblock connector
- Surface mount box

Please Note: Images are representative only. Final product may vary.
