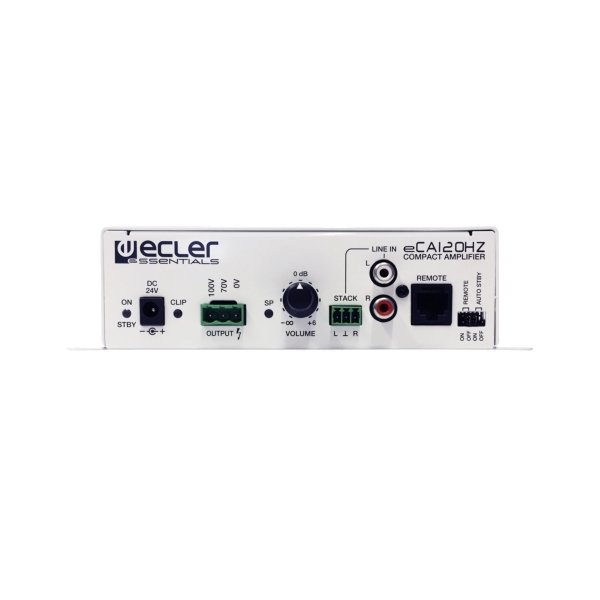

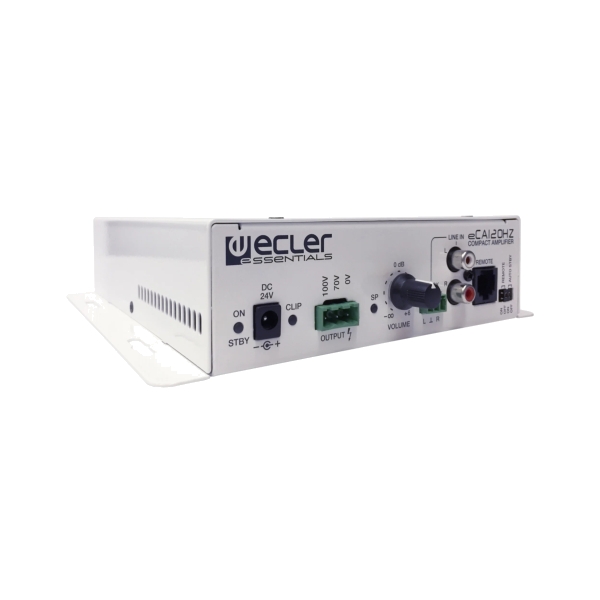

Ecler eCA120HZ Micro Amplifier - 106W @ 70V / 100V Line

Ecler eCA120HZ Micro Amplifier Features

- 1 x 106W RMS @ 70V / 100V line level (high impedance) amplifier
- External, universal power supply
- AUTO STANDBY function: in the absence of an audio signal the unit automatically goes into STANDBY mode, minimizing power consumption
- Light and silent (fanless) design
- 1 unbalanced stereo line input (LINE IN / STACK), with dual RCA connector and 3-pin Euroblock connector
- Local volume control by knob
- Remote volume control by WPa series wall panel (0-10VDC)

Ecler eCA120HZ Micro Amplifier Specifications

Channels:
- Number of output channels: 1
- Output connection type: Euroblock
- Output configuration: 1x 106W RMS @ 70V / 100V line level (high impedance) amplifier
- Number of input channels: 1
- Input connection type: Dual RCA and 3-pin Euroblock
- Input configuration: LINE / STACK input

Output Power - All Channels Driven @ 1%Thd:
- Max output power @ 100V: 106W @ 100Ω

Signal:
- Input sensitivity: 0dBV
- Input impedance: >20kΩ
- Frequency response: 70Hz - 30kHz (-3dB)
- THD + Noise: SPKR OUT < 0.07% @ 1kHz
- SNR: >85dB (VOLUME at 0dB)
- Crosstalk: >65dB @ 1kHz

Electrical:

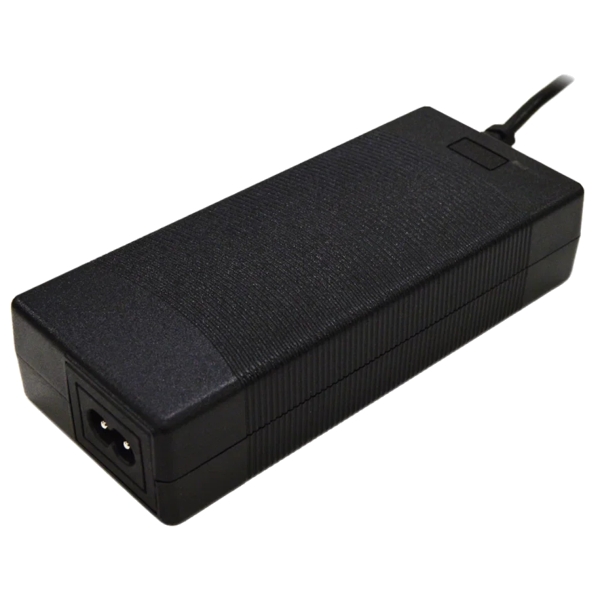

- Power supply: External, universal power supply
- AC mains requirement: 100-240V @ 50-60Hz + External PSU 24VDC
- AC mains connector: DC24V power connector

Power Consumption:
- Power Consumption (1/3 POWER, @ 4Ω all channels driven): pink noise, 51W / 61VA
- Power Consumption (1/8 POWER, @ 4Ω all channels driven): pink noise, 26W / 38VA
- Power Consumption (STBY/SLEEP): <2.5W

Technologies:
- Energy saving: Auto standby function
- Cooling: Convection (fanless)

Protections:
- AC protection: No
- DC protection: No
- VHF protection: No
- Short-circuit protection: No
- Clip limiter: No
- Long term limiter: No
- Thermal protection: No

Remote Control Connections:
- GPIs: x1 GPI (0-10VDC) for volume control

Settings:
- Attenuators: Front panel knob
- Filters: 70Hz High Pass Filter (internal, not removable)
- Output settings: 70V/100V outputs
- Auto standby function: Front panel jumper
- Auto standby threshold: -40dBV (L&R)
- Auto standby time: 120 seconds

Monitoring:
- Signal Present: SP LED (Green)
- Cliping: CLIP LED (Red)
- Standby: STBY LED (Orange)

Physical:
- Operating temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Operating humidity: <85% HR
- Storage temperature: Min: -10°C ; 14°F Max: 40°C ; 104°F
- Storage humidity: <90% HR
- Installation options: Wall or under a surface (table, shelf, cupboard, etc.)
- Dimensions (W x H x D): 190 x 48 x 190 mm (knobs and connectors excluded)
- Weight: 2.3 kg

Further Product Information Below

Ecler eCA120HZ Manual (PDF)

Ecler eCA120HZ Data Sheet (PDF)

Ecler eCA120HZ Technical Drawing (PDF)

Ecler eCA120HZ Micro Amplifier Supplied With

- 1x Ecler CECA120HZC
