Equinox UVC50B Universal Video Wall Clamp, 30kg

Name: Equinox UVC50B Universal Video Wall Clamp, 30kg
Brand: Equinox
Price: 25.0 GBP
Availability: InStock

Price Each £20.83 (£25.00 Including VAT at 20%)

REF: JP115321

Quantity:

Equinox UVC50B Universal Video Wall Clamp, 30kg

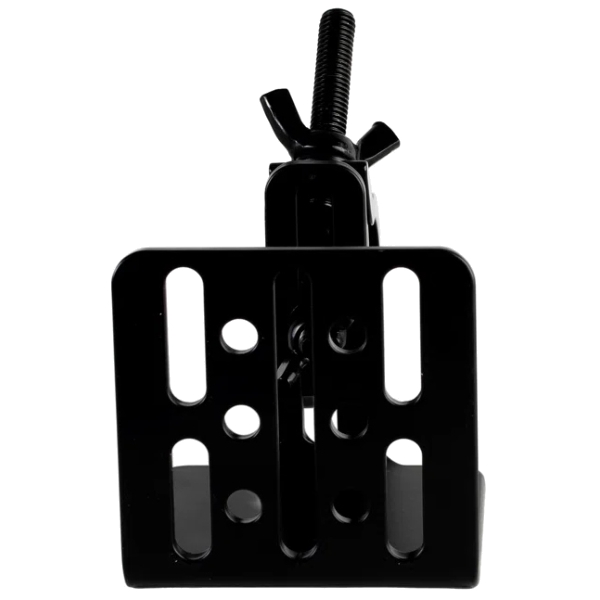

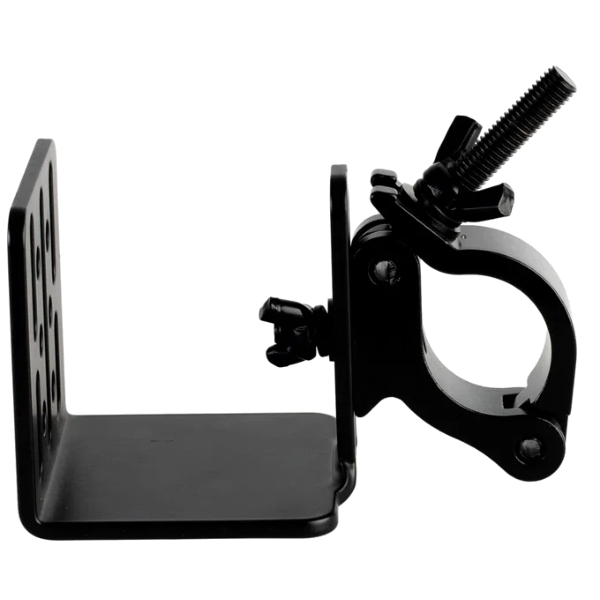

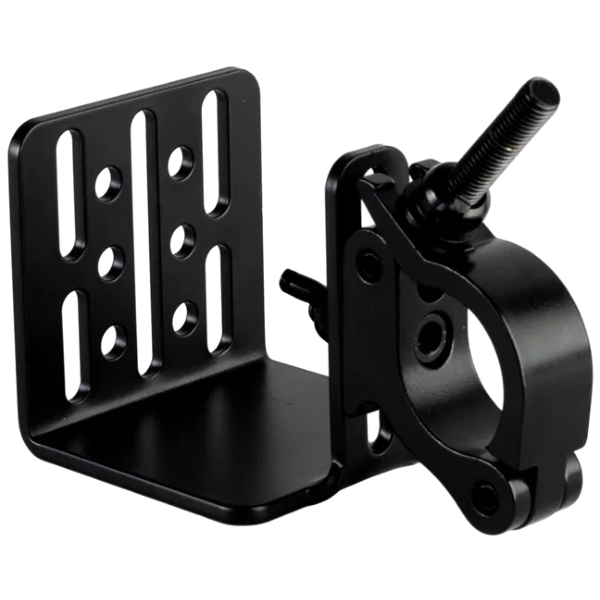

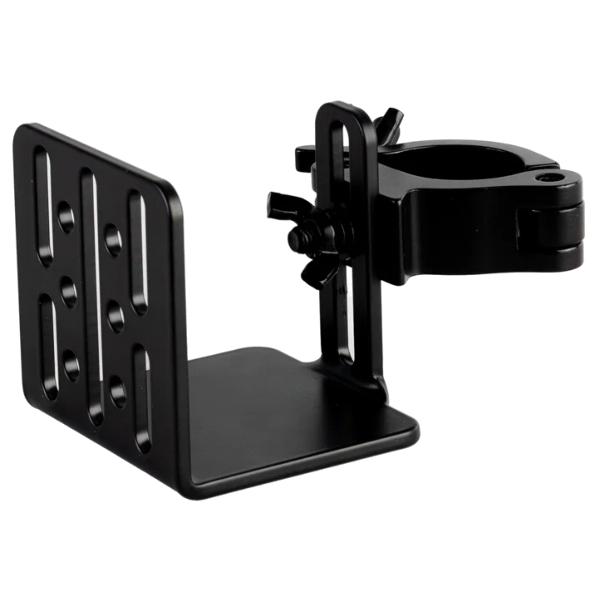

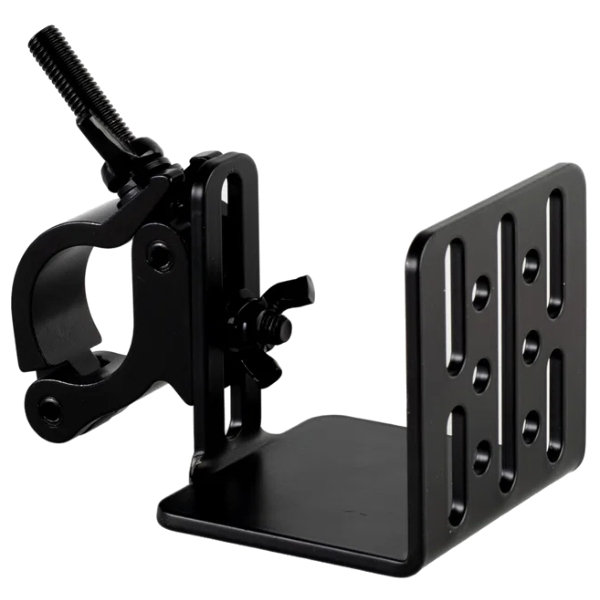

The Equinox UVC50B Universal Video Wall Clamp is a universal bracket system designed to facilitate fixing video wall panels onto truss and alloy tubes of 45-52mm in diameter. The bracket is supplied with a side-entry-style half coupler, fixed to the bracket via an M10 set screw and nyloc nut. The truss clamp features a standard M12 wing nut for closure.

Click Here for Printer Friendly Version

Equinox UVC50B Universal Video Wall Clamp Features

- Drilled and slotted mounting bracket
- 5mm steel bracket
- 30 x 25 up to 75 x 60mm mounting with 10.5mm holes
- WLL: 30kg

Equinox UVC50B Universal Video Wall Clamp Specifications

- Dimensions (H x W x D): 69 x 64 x 30mm

Further Product Information Below

Equinox UVC50B Tech Drawing (PDF)
