Equinox Quad Blox RGBWW, 16x 4W

Name: Equinox Quad Blox RGBWW, 16x 4W
Brand: Equinox
Price: 122.05 GBP
Availability: InStock

Price Each £101.71 (£122.05 Including VAT at 20%)

REF: JP112937

Quantity:

Equinox Quad Blox RGBWW, 16x 4W

The Equinox Quad Blox RGBWW delivers bold, vibrant colour with seamless blending and a removable frost filter for smooth washes. It features a variety of built-in shows accessible via the onboard menu or an included IR remote, facilitating straightforward plug-and-play operation. For advanced users, multiple DMX modes provide individual control over each segment, and the unit is compatible with W-DMX USB for wireless connectivity. The Quad Blox comes equipped with a dual bracket, allowing for flexible rigging or floor-standing setups.

Click Here for Printer Friendly Version

Equinox Quad Blox RGBWW Features

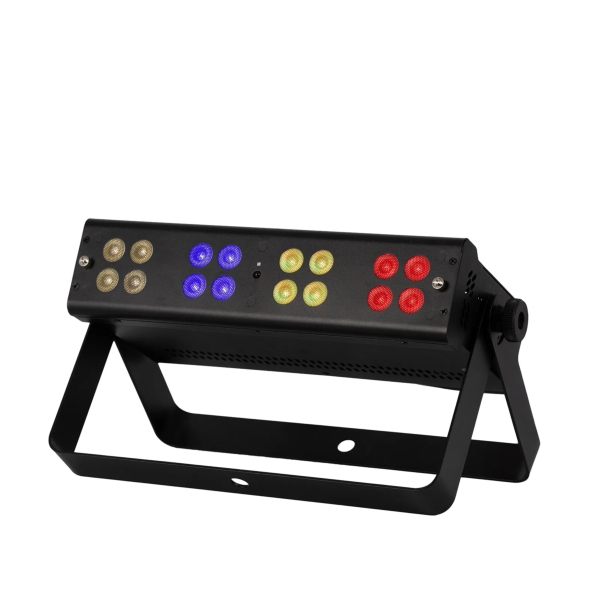

- 16x 4W quad-colour LEDs (RGBWW)

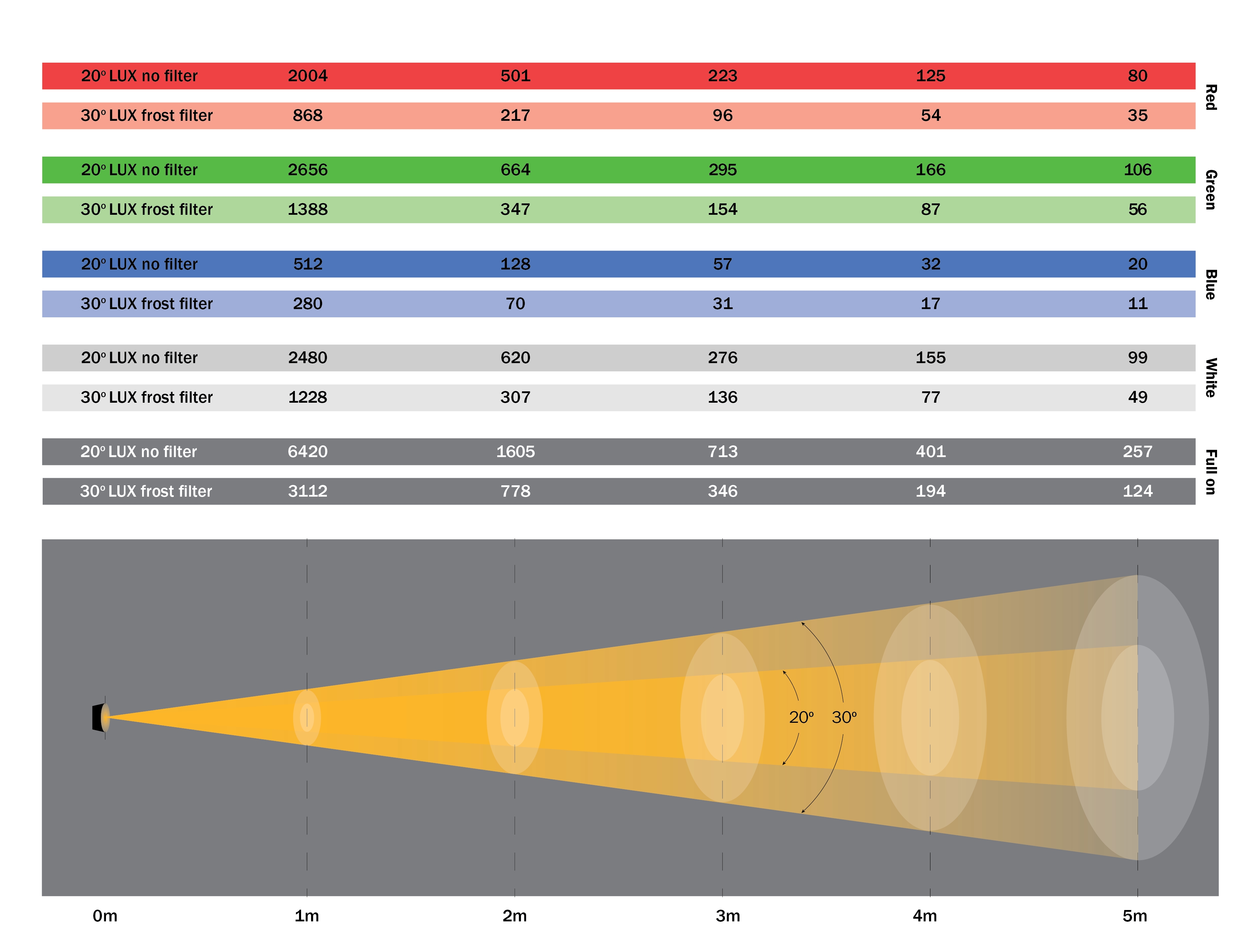

- Beam angle: 20°

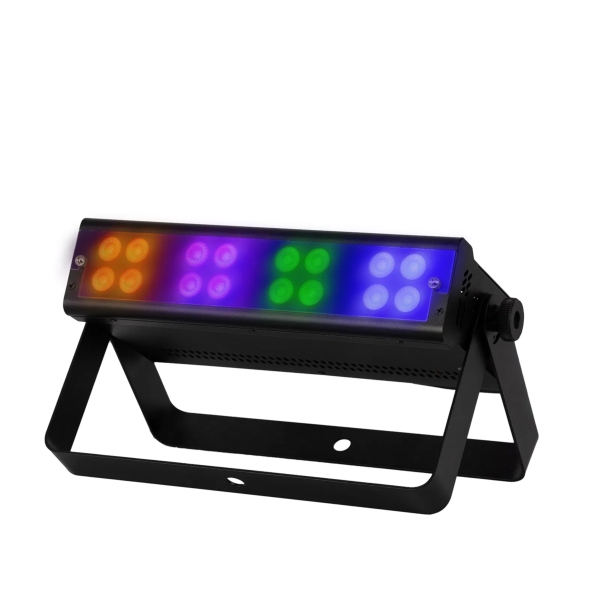

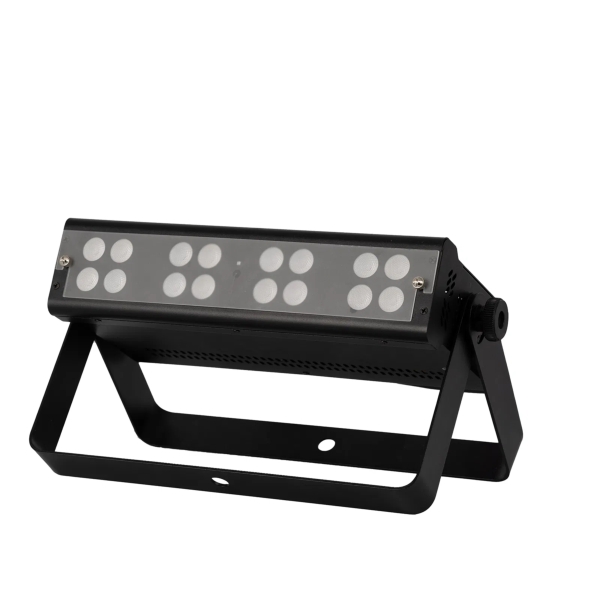

- 30° frost filter included
- Pixel zone mapping (4 segment)
- Refresh rate: 1200Hz
- Selectable DMX channels: 4/6/8/16/18/20
- W-DMX USB compatibility
- Auto, static colour, sound active, manual & primary/secondary modes
- 0-100% dimming
- Variable strobe
- Dual bracket for rigging or floor use
- 4-button menu with LED display
- PowerTwist input/output
- 3-pin XLR in/out
- Convection cooled
- Supplied with IR remote

Equinox Quad Blox RGBWW Specifications

- Power consumption: 70W
- Power supply: 100~240V, 50/60Hz
- Fuse: T1.6A 250V
- Dimensions: 186.5 x 335 x 171.5mm
- Weight: 2.6kg

Further Product Information Below

Equinox Quad Blox Manual (PDF)
