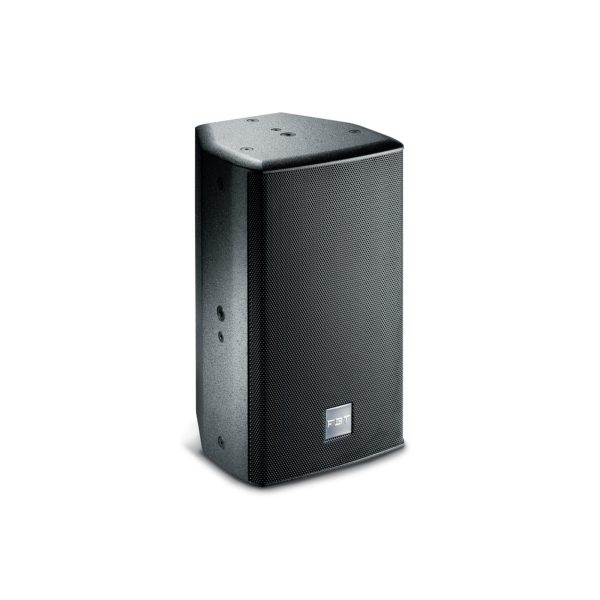

FBT Archon 105 Archon 2-way Passive speaker - 5 inch + 1 inch - 200Wrms - White

FBT Archon 105 Archon 2-way Passive speaker - 5 inch + 1 inch - 200Wrms - White

FBT Archon 105 Archon 2-way Passive speaker - 5 inch + 1 inch - 200Wrms - White

Price Each 241.76 Exc VAT or (290.11 Inc VAT at 20%)

Contact us for quantity price breaks 01271 862221

Ref: JP54333

<Back

Click Here For PDF User Manual

FBT Archon 105 2-way Passive speaker - 5 inch + 1 inch - 200Wrms - White The Archon series of full-range and bi-amped speaker systems have been designed to provide ample bandwidth and high SPL for an accurate sound reproduction in the most various application projects. The FBT Archon series lines up three 2-way full range/bi-amp models and three 2-way full range compact models; in addition, two low-profile subwoofers (2x8 and 2x15) increase the low frequency extension of the desired systems. All Archon speakers are elegantly designed and crafted to meet the most demanding architectural design. The cabinets are constructed of 0.47 Baltic birch plywood covered in a scratch & scuff resistant black or white finish. Archon speakers can be installed in suspension by wall bracket, on tripod stand, with adjustable wall support and simple stack installation.

Features & Specifications

1 x 5 (1.25 VC) custom made LF woofer with rubber surround
1 x 1 HF dome tweeter
2-way, passive sound reinforcement systems
12mm (0.47) baltic birch plywood cabinets
Custom designed LF woofers, made in Italy
Custom designed HF dome tweeter, Made in Italy
Crossover networks equipped with 4 x Euroblock speaker terminals; factory preset for optimal line transformer installation
Multiple M5 threaded rigging points
Acoustically transparent steel grille and antidust protection cloth
New FBT rotatable logo badge following vertical or horizontal installation
Optional mounting hardware
Optional line transformer 50W

Configuration: 2 Way
Frequency response: 70Hz - 22kHz
Low Frequency woofer: 5"
High Frequency driver: 1"
Maximum SPL cont/peak: 112/115dB
Dispersion: 110 x 110 (HxV)
Crossover Frequency: 3kHz
Input connector: 4x Euroblock
Net Dimension (WxHxD): 180 x 300 x 180mm / 7.08 x 11.81 x 7.08in
Net Weight: 4kg / 8.8lb
Transport Dimension (WxHxD): 260 x 380 x 260mm / 10.23 x 14.96 x 10.23in
Transport Weight: 6kg / 13.2lb
