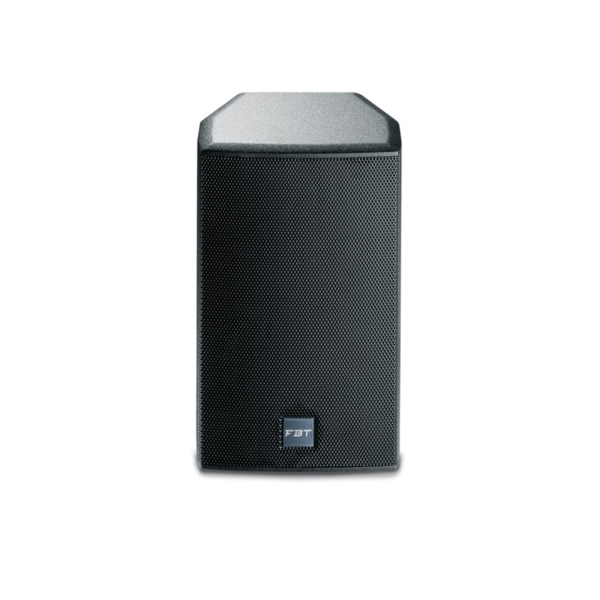

FBT Archon 108 2-way Passive speaker - 8 inch + 1,5 inch - 350Wrms - Black The Archon series of full-range and bi-amped speaker systems have been designed to provide ample bandwidth and high SPL for an accurate sound reproduction in the most various application projects. The FBT Archon series lines up three 2-way full range/bi-amp models and three 2-way full range compact models; in addition, two low-profile subwoofers (2x8” and 2x15”) increase the low frequency extension of the desired systems. All Archon speakers are elegantly designed and crafted to meet the most demanding architectural design. The cabinets are constructed of 0.47” Baltic birch plywood covered in a scratch & scuff resistant black or white finish. Archon speakers can be installed in suspension by wall bracket, on tripod stand, with adjustable wall support and simple stack installation.
1 x 8” (1.5” VC) custom made LF woofer with rubber surround.
1 x 1.5” HF high-end dome tweeter.
8 x M5 threaded rigging points.
2-way, passive sound reinforcement systems.
12mm (0.47”) baltic birch plywood cabinets.
Custom designed LF woofers, made in Italy.
Custom designed HF dome tweeter, Made in Italy.
Crossover networks equipped with 4 x Euroblock speaker terminals; factory preset for optimal line transformer installation.
Multiple M5 threaded rigging points.
Acoustically transparent steel grille and antidust protection cloth.
New FBT rotatable logo badge following vertical or horizontal installation.
Optional mounting hardware.
Optional line transformer 100W.
Configuration: 2 Way
Frequency response: 55Hz - 22kHz 6dB
Low Frequency woofer: 8" with 1.5" VC
High Frequency driver: 1.5" Dome Tweeter
Maximum SPL cont/peak: 118/121dB SPL
Dispersion: 90 x 90 (H x V)
Crossover Frequency: 2kHz
Input connector: 4x Euroblock
Net Dimension (WxHxD): 248 x 411 x 248mm / 9.76 x 16.18 x 9.76in
Net Weight: 6.5kg / 14.3lb
Transport Dimension (WxHxD): 330 x 491 x 330mm / 12.99 x 19.33 x 12.99in
Transport Weight: 8.5kg / 18.7lb
