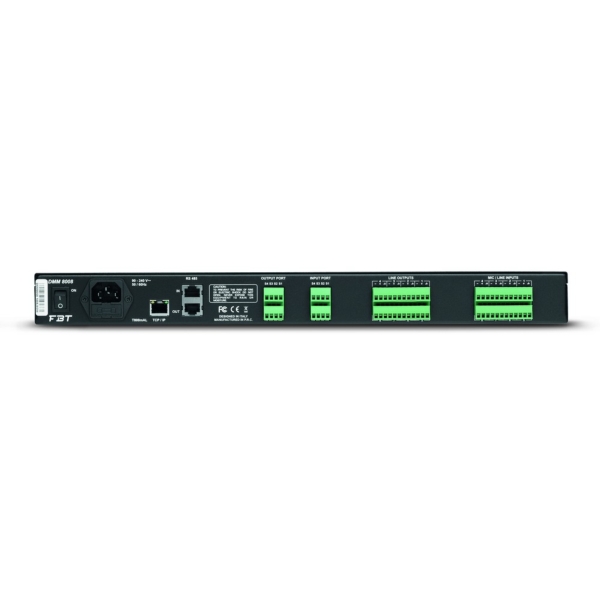

FBT DMM8008 Digital Matrix 8x8

FBT DMM8008 Digital Matrix 8x8

FBT DMM8008 Digital Matrix 8x8

Price Each 1,580.09 Exc VAT or (1,896.11 Inc VAT at 20%)

Buy 2+ units for 3621.57 Inc VAT. To Do So, Click Here to Register.

Ref: JP54325

<Back

Click Here For PDF User Manual

FBT DMM8008 Digital Matrix 8x8 supports a full matrix mixing mode where inputs may be routed/mixed in any ratio to any output. Each Mic/Line input channel provides Lo/Hi pass 1st order filters, 3-band parametric EQ, Noise Gate function and Gain control. In addition Mic inputs include a Feedback Eliminator function, based on a powerful Pitch Shifting algorithm, particularly suitable for voice applications. Automixing function automatically adjusts input level to make operating easier using either NOM (Number of Open Mics) attenuation function or Gain sharing algorithm. In addition Ducking process enforces a priority order of open microphones in order that high-priority inputs attenuate lower-priority inputs. Each output offers up to 5-band of parametric equalization, crossover filters, RMS compressor, Peak limiter, Phase and Delay controls; 8 digital In/Out ports are provided for general purpose (preset recall, trigger third parts or device); 8 front knobs provides a quickly way to control input Gain; Up to 32 units can be managed by software applications.

Features & Specifications

Excellent audio performance with 24 bit converters coupled with 48kHz sample rate
8 Mic/Line inputs, 8 outputs with full matrix mixing, 3 band parametric equalization and Low/High pass filters per input channel
5 band parametric equalization per output channel; each band can be switched to peaking, Low/High shelving with variable Q response
Crossover filters with slopes from 6dB/Octave up to 24dB/Octave including Butterworth, Bessel, Linkwitz-Riley
Gain control, Noise Gate, Feedback eliminator (Mic input only) per input channel
Each output features a precision dynamic range controller composed of a Peak Limiter and a RMS Compressor with selectable ratio and variable knee
Automixing functions include: Configurable NOM attenuation, Gain sharing algorithm, Priority Ducking
Adjustable Delay time up to 380mS per output channel
Front panel interactive LCD display for local access and configuration
Front panel 6-led status indicators per In/Out channel
8 front knobs available for Mic input Gain control
4 input contacts for additional 4 preset selections with priority configuration
4 digital output ports for triggering external devices
Simultaneous control up to 32 units via PC software - iPad
Security lockout
TCP/IP, RS 485 and USB connection for remote controls

AC Power requirements: 90-240Vac (50/60Hz) - 40W
Net Dimension (WxHxD): 483 x 44 x 229mm (1U)
