FBT Shadow 108CT IP 55 Coax speaker

FBT Shadow 108CT IP 55 Coax speaker

FBT Shadow 108CT IP 55 Coax speaker

Price Each 521.16 Exc VAT or (625.39 Inc VAT at 20%)

Buy 2+ units for 1194.5 Inc VAT. To Do So, Click Here to Register.

Ref: JP54460

<Back

Click Here For PDF User Manual

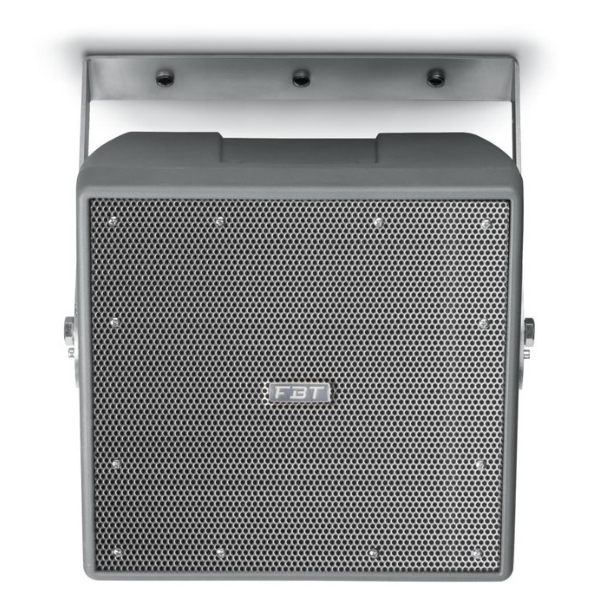

FBT Shadow 108CT IP 55 Coax speaker is a weatherproof coaxial two way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications. The low frequency transducer is a 8" woofer with a 2" voice coil. The high frequency section is a 1" driver with 1.4" voice coil on conical 90 horn. The SHADOW 108CT features a line transformer for 70-100V applications. The cabinet is a single piece rotational moulded in polyethylene, fully UV protected. The cabinet is equipped with a stainless steel U-bracket. The grille is in custom perforated with 3 layers of protection. The SHADOW 108CT meets the requirements of IP55 code (International Protection Rating)

Features

8 coaxial woofer with 2 coil and 1 HF driver with 1.4 coil on conical 90 horn
100V line transformer with selectable100W/50W power tapping
Sturdy molded polyethylene curved enclosure
Steel U bracket and other included hardware accessories
4 wires cable to select the desired power tapping

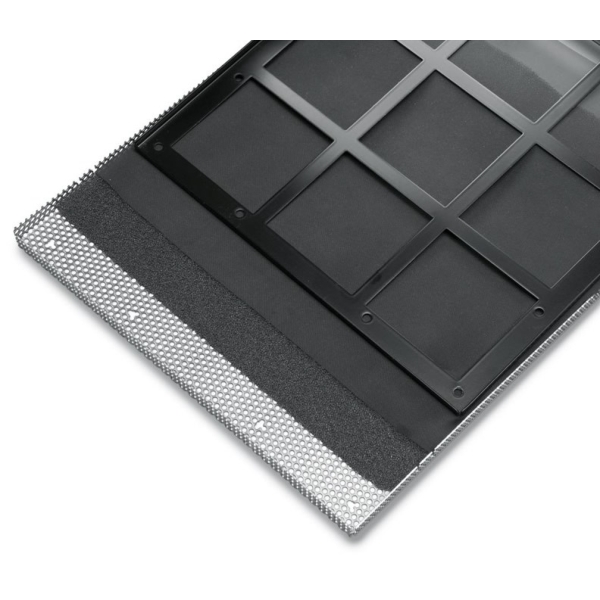

Water-stop grill with 3 layers of protection
IP55 weather resistant
Standard grey finish
RAL 7011

Specifications

Configuration: 2 Way
Frequency response: 80Hz - 20 kHz
Low Frequency woofer: 8
High Frequency driver: 1
Maximum SPL cont/peak: 120 / 124 dB
Dispersion: 90 x 90 (HxV)
Input impedance: 8 ohm
Crossover Frequency: 1.8 kHz
Input connector: 4 wire cable
Net Dimension (WxHxD): 285 x 285 x 250mm
Net Weight: 7kg
Transport Dimension (WxHxD): 365 x 265 x 330mm
Transport Weight: 9kg
