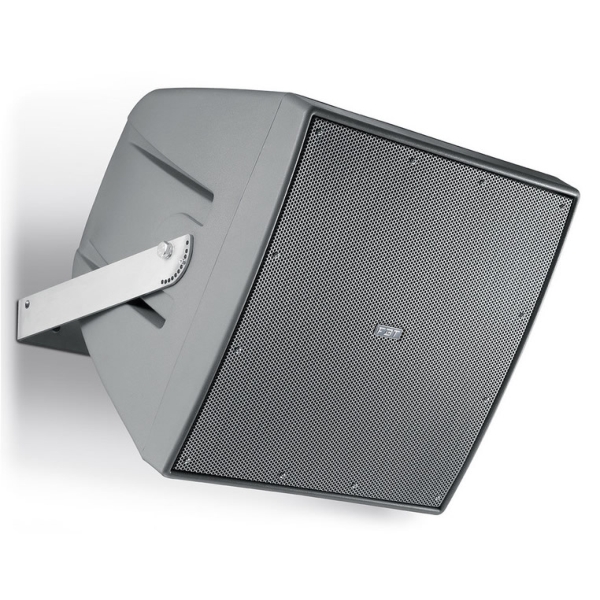

FBT Shadow 112HC IP 55 coax horn loaded speaker The SHADOW 112HC is a weatherproof coaxial two way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications. The low frequency transducer is a 12" woofer with a 2.5" voice coil. The high frequency section is a 1" driver with 1.7" voice coil on 90°x60° rotatable horn. The SHADOW 112HCT features a line transformer for 70-100V applications. The cabinet is a single piece rotational moulded in polyethylene, fully UV protected. The cabinet is equipped with a stainless steel U-bracket. The grille is in custom perforated with 3 layers of protection. The SHADOW 112HC meets the requirements of IP55 code ( International Protection Rating).
12” woofer with 2.5” coil horn loaded.
Constant directivity horn 1” HF driver with 1.7” coil.
An optional transformer model, SHADOW 112HCT, is also available with 200W/100W power tapping selection.

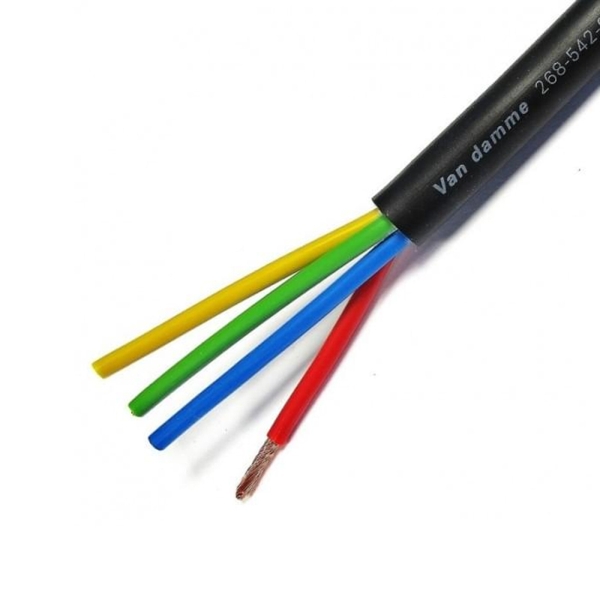

4 wires cable to select the desired power tapping.
Sturdy molded polyethylene curved enclosure.
Water-stop grill with 3 layers of protection.
Steel U bracket and other included hardware accessories IP55 weather resistant.
Standard grey finish RAL 7011.
Configuration: 2 Way
Frequency response: 95Hz - 20kHz
Low Frequency woofer: 12" with 2.5" VC
High Frequency driver: 1" with 1.7" VC
Maximum SPL cont/peak: 128 / 132dB
Dispersion: 90 x 60 (HxV)
Input impedance: 8 ohm
Crossover Frequency: 1.6 kHz
Input connector: 4 Wire Cable
Net Dimension (WxHxD): 430 x 430 x 300mm
Net Weight: 21kg
Transport Dimension (WxHxD): 530 x 530 x 500mm
Transport Weight: 23kg
