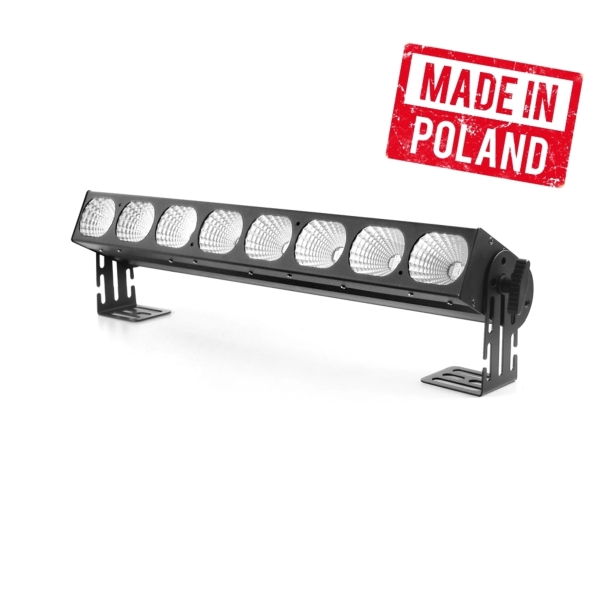

Flash Pro Led Bar 8x 30W RGBW

Flash Pro Led Bar 8x 30W RGBW Features

- 8 sections controlled separately by DMX
- 16-bit dimming resolution
- Various dimming curves for smooth dimming in 8-bit mode
- Dim delay (light bulb simulation)
- Full DMX signal regeneration
- Electronic protection against overheating
- THEATRE or DISCO cooling volume modes.
- Permanent color correction
- Native support for optional wireless DMX module

Flash Pro Led Bar 8x 30W RGBW Specifications

Electrical:
- Supply voltage: 100-245V
- Power consumption: 270W
- Power frequency: 50-60Hz

Light source:
- Type: LED (RGBW)
- Quantity: 8
- Power (W): 30W
- Number of control sections: 8
- Color Rendering Index (CRI): 85.3

Color Mixing System:
- RGBW: 8 bit - 16 bit

Dimming:
- Dimming: 8 bit - 16 bit

Beam angle:
- Beam angle: 50?

Strobe:
- Frequency: 1Hz-20Hz

DMX Control:
- Number of modes: 30
- Number of channels: 3-64

Modes of operation:
- DMX512: Yes
- Sound control: Yes
- Auto control: Yes
- Master-slave: Yes

User Interface:
- Physical buttons: Yes
- LCD display: Yes

Connectors:
- AC IN: PowerCON
- AC OUT: PowerCON
- DMX IN: 3-pin DMX
- DMX OUT: 3-pin DMX

Physical:
- IP protection level: IP20
- Housing type: Aluminium
- Fixing: Integrated
- Fixing: Mounting hole
- Housing color: Black
- Cooling: Active
- Dimensions (W x H x D): 700 x 70 x 170 mm
- Weight: 4.2 kg

Further Product Information Below

Flash Pro Led Bar 8x 30W RGBW Manual (PDF)

Flash Pro Led Bar 8x 30W RGBW Supplied With

- Manual: Yes

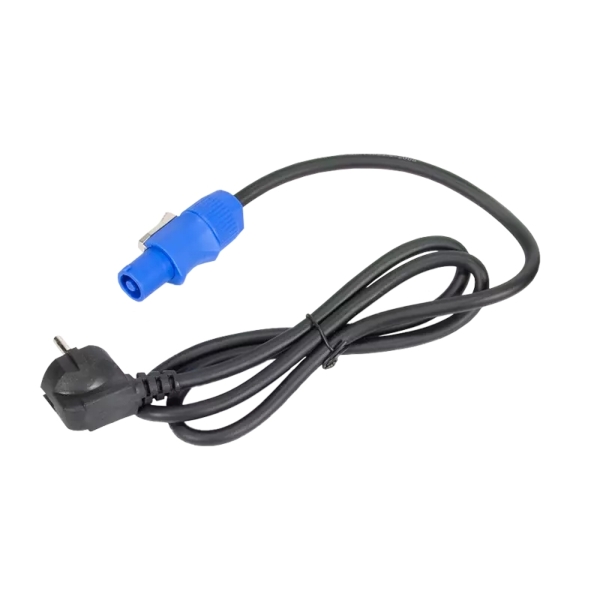

- Wiring: PowerCON
- Device: LedBar L830
