Global Truss Outdoor Rated Narrow Half Coupler (812-B-OD), 100kg - Black

Name: Global Truss Outdoor Rated Narrow Half Coupler (812-B-OD), 100kg - Black
Brand: Global Truss
Price: 8.14 GBP
Availability: InStock

Price Each £6.78 (£8.14 Including VAT at 20%)

REF: JP115485

Quantity:

Global Truss Outdoor Rated Narrow Half Coupler (812-B-OD), 100kg - Silver

The Global Truss Outdoor Rated Narrow Half Coupler (812-B-OD). Proven millions of times over within the industry and an indispensable element for any event, its slim design means you can attach the coupler at nearly any point on the truss. It is the ideal choice for smaller and mediumsized devices.

Thanks to the use of V4A stainless steel, this outdoor coupler is designed for permanent outdoor use and is resistant to chlorine and salt water.

Click Here for Printer Friendly Version

Global Truss Outdoor Rated Narrow Half Coupler Features

- For tubes 48-51mm in diameter

Global Truss Outdoor Rated Narrow Half Coupler Specifications

- WLL: 100 kg
- Light fixing: M10
- Safety Factor 3:1
- Compatibility: 48-51 mm
- TÜV certificate: Yes
- Material: Aluminum 6061 T6

Fittings:
- Clasp: M8 wing nut
- Retaining screw: M10 wing nut, snap ring, washer

Technical Data:
- Width: 30 mm
- Tensile load: 100.00 kg
- Dimensions (H x W x D): 93 x 81 x 30 mm

Further Product Information Below

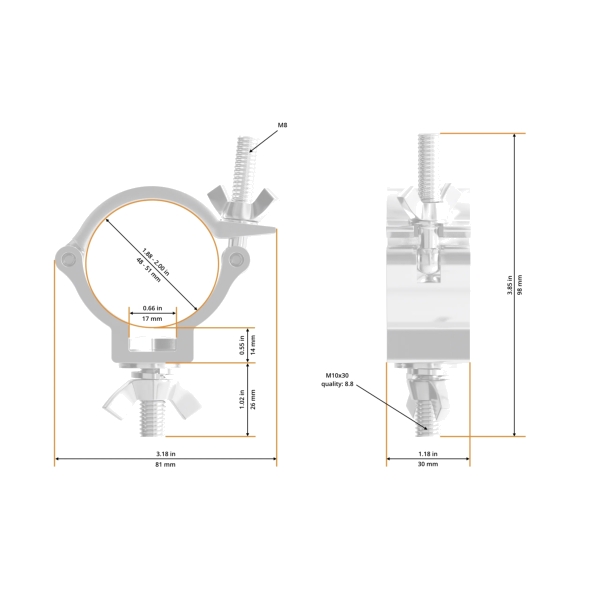

Global Truss 812-B-OD Technical Drawing (PDF)
