Global Truss Outdoor Rated Half Coupler (823-OD), 500kg - Silver

Name: Global Truss Outdoor Rated Half Coupler (823-OD), 500kg - Silver
Brand: Global Truss
Price: 16.22 GBP
Availability: InStock

Price Each £13.52 (£16.22 Including VAT at 20%)

REF: JP115486

Quantity:

Global Truss Outdoor Rated Half Coupler (823-OD), 500kg - Silver

The Global Truss Outdoor Rated Half Coupler is the standard in heavy duty couplers and can accommodate up to 500kg tensile load. Due to its width, it offers substantially more load bearing surface, and is thus better secured.

Thanks to the use of V4A stainless steel, this outdoor coupler is designed for permanent outdoor use and is resistant to chlorine and salt water.

Click Here for Printer Friendly Version

Global Truss Outdoor Rated Half Coupler Features

- For tubes 48-51mm in diameter

Global Truss Outdoor Rated Half Coupler Specifications

- WLL: 500 kg
- Light fixing: M10
- Safety Factor 3:1
- Compatibility: 48-51 mm
- TÜV certificate: Yes
- Material: Aluminum 6061 T6

Fittings:
- Clasp: M12 wing nut
- Retaining screw: M10 device screw, snap ring, washer

Technical Data:
- Width: 50 mm
- Tensile load: 500.00 kg
- Dimensions (H x W x D): 116 x 110 x 50 mm

Further Product Information Below

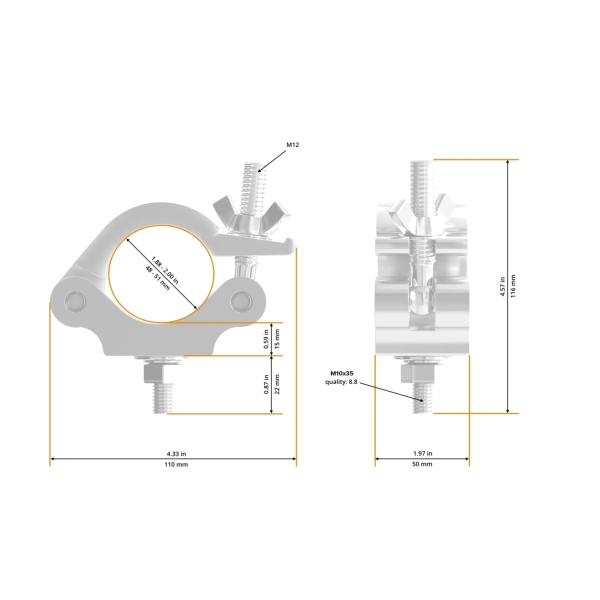

Global Truss 823-OD Technical Drawing (PDF)
