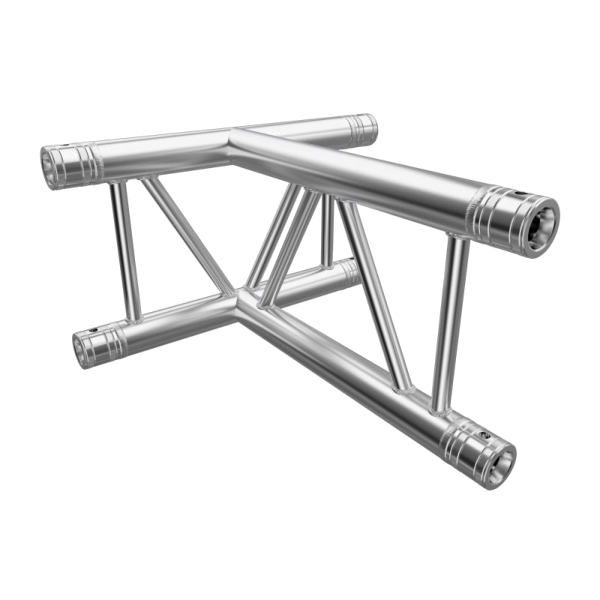

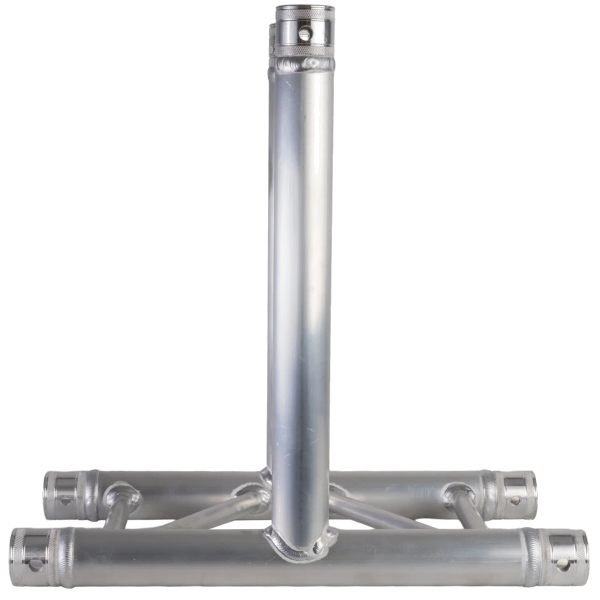

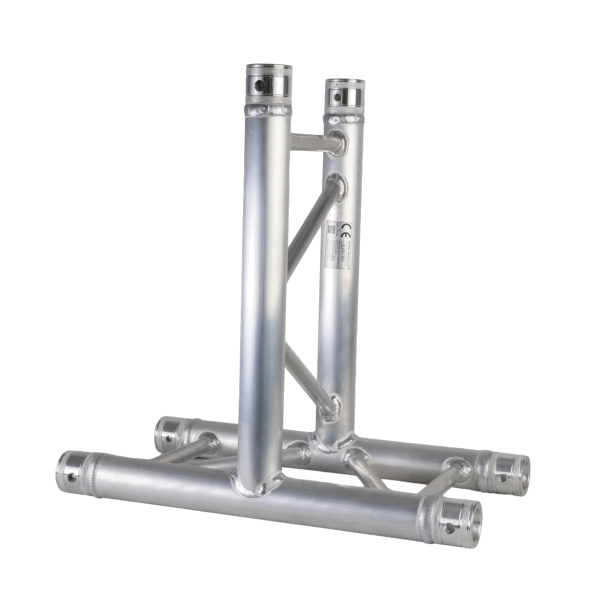

Global Truss F32 Standard Vertical T-Piece (F32T35V)

Name: Global Truss F32 Standard Vertical T-Piece (F32T35V)
Brand: Global Truss
Price: 126.92 GBP
Availability: InStock

Price Each £105.77 (£126.92 Including VAT at 20%)

REF: JP115494

Quantity:

Global Truss F32 Standard Vertical T-Piece (F32T35V)

The Global Truss F32 Standard Vertical T-Piece is a TÜV approved 2-point system with an external dimension of 29cm. Grid constructions for exhibition stands or permanent installations are possible with this system. Short outrigs or cross ways with little loads can also be created. As a grid a maximum span of up to 10 meters can be used.

The F32 truss is built with 50 x 2mm main tubes and 20 x 2mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors.

Click Here for Printer Friendly Version

Global Truss F32 Standard Vertical T-Piece Features

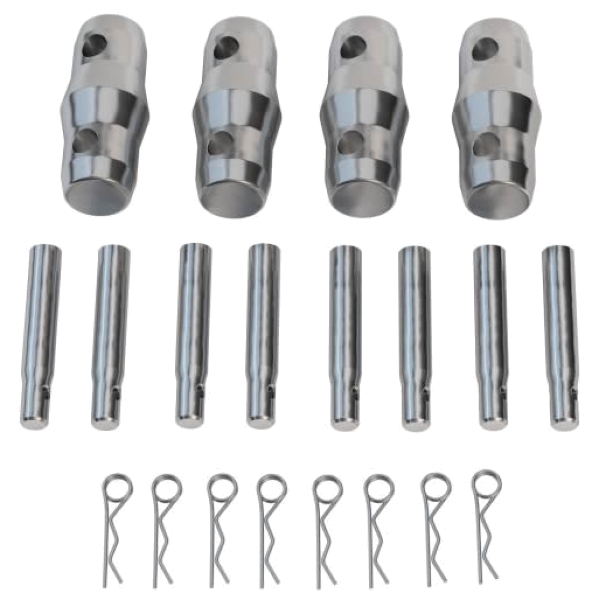

- Supplied with 4x conicals, 8x pins and 8x R-Clips
- 3-way corner
- 90° angle
- Pipe diameter: 50 mm
- Wall thickness: 2 mm

Global Truss F32 Standard Vertical T-Piece Specifications

- Colour: Aluminum
- TÜV certificate: No
- Material: Al EN AW-6082 T6

Technical Data:
- Number of points: 2-point
- Edge dimension: 29 cm
- System: F32
- Type: corner

Main pipe:
- Diameter main pipe: 50 mm
- Wall thickness main pipe: 2 mm

Brace:
- Diameter Brace: 20 mm
- Wall thickness Brace: 2 mm

Hardware:
- Weight: 3.95 kg
- Dimensions (L x W x H): 290 x 500 x 500 mm

Further Product Information Below

Global Truss F32 Standard 4 Way Vertical Corner Structural Report (PDF)

Global Truss F32 Standard 4 Way Vertical Corner TUV Certificate (PDF)
