Global Truss F34 Multi-Box Corner (No Conicals) - Black

Name: Global Truss F34 Multi-Box Corner (No Conicals) - Black
Brand: Global Truss
Price: 277.68 GBP
Availability: InStock

Price Each £231.40 (£277.68 Including VAT at 20%)

REF: JP114099

Quantity:

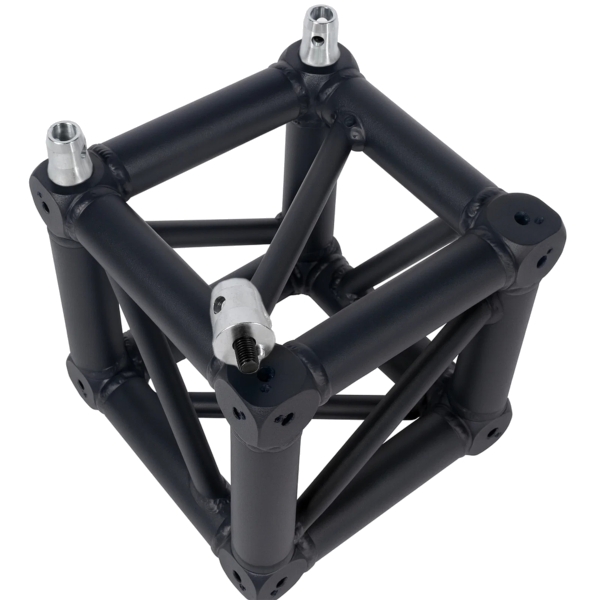

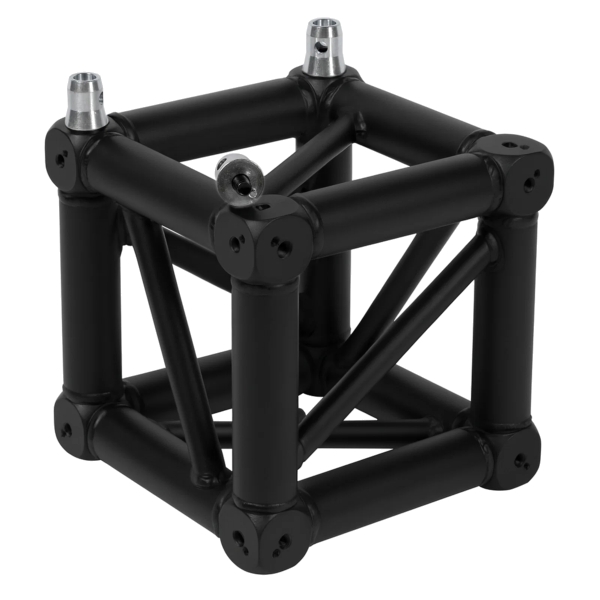

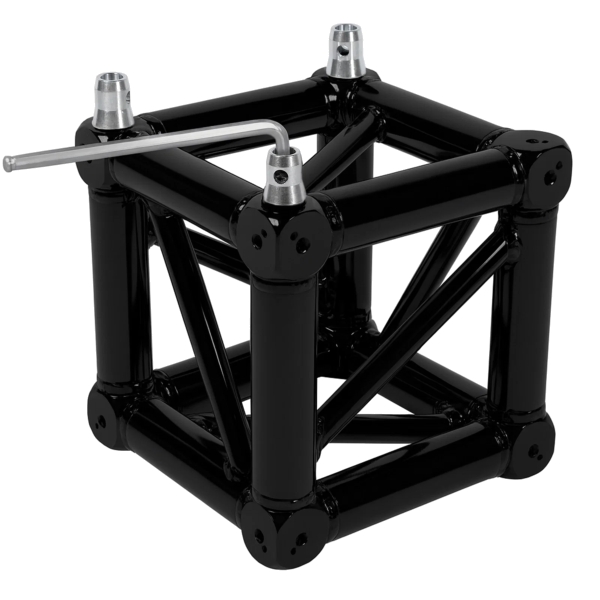

Global Truss F34 Multi-Box Corner (No Conicals) - Black

The Global Truss F34 Multi-Box Corner features TUV Certified aluminium welding and 3mm wall thickness for a superb load handling capacity. A full range of lengths, baseplates, corners, connectors and couplers are available, making them ideal for fixed installation, shop fittings and rental applications. This F34 Box Corner is supplied with no conicals, these are available separately, either M12 PL or M12 Standard style are suitable.

Please Note: The Global Truss F34 Multi-Box Corner is supplied without conicals. Please see related links.

Click Here for Printer Friendly Version

Global Truss F34 Multi-Box Corner Features

- Supplied without half conicals, bullet pins & R Clips
- Prolyte H30 Truss compatible
- Superior 3mm wall thickness aluminium

Global Truss F34 Multi-Box Corner Specifications

- Truss diameter: 290mmØ
- Tube diameter: 50mmØ
- Tube thickness: 3.0mm
- Brace diameter: 20mmØ
- Brace thickness: 2.0mm
- Weight: 5.73kg

Further Product Information Below

Global Truss F34 MultiBox Corner Technical Drawing (PDF)
