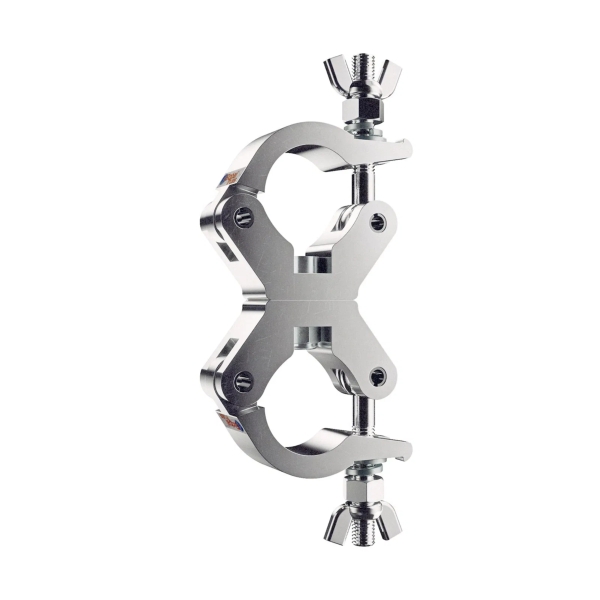

Global Truss Narrow Swivel Coupler 48-51/30mm 750Kg (8222) - Silver

Name: Global Truss Narrow Swivel Coupler 48-51/30mm 750Kg (8222) - Silver
Brand: Global Truss
Price: 26.26 GBP
Availability: InStock

Price Each £21.88 (£26.26 Including VAT at 20%)

REF: JP113239

Quantity:

Global Truss Narrow Swivel Coupler 48-51/30mm 750Kg (8222) - Silver

The Global Truss Swivel Coupler 48-51/50Ø 750Kg is ideal for applications requiring increased load capacity and is compatible with tubes measuring 48-51mm in diameter. The coupler offers a load capacity of 750kg while ensuring maximum freedom of movement thanks to its swivelling connection.

Click Here for Printer Friendly Version

Global Truss Swivel Coupler 48-51/50Ø 750Kg Features

- For tubes 48-51mm in diameter
- WLL: 750kg
- Width: 30mm
- Natural silver finish
- M12 wing-nut clasp
- 6061-T6 aluminium construction

Global Truss Swivel Coupler 48-51/50Ø 750Kg Specifications

- Material: Aluminium 6061-T6
- Conforms to: DIN EN 13814:2004
- Dimensions (L x W x H): 210 x 120 x 30mm
- Weight: 0.8kg

Further Product Information Below

Global Truss Swivel Coupler Technical Drawing (PDF)
