Global Truss F34 Standard 4 Way 90 Degree Corner - Black

Name: Global Truss F34 Standard 4 Way 90 Degree Corner - Black
Brand: Global Truss
Price: 298.52 GBP
Availability: InStock

Price Each £248.77 (£298.52 Including VAT at 20%)

REF: JP113265

Quantity:

Global Truss F34 Standard 4 Way 90 Degree Corner - Black

The Global Truss F34 Standard 4 Way 90 Degree Corner is a versatile 4-point system with an external dimension of 29cm. With its excellent load capacity relative to weight and size, the F34 system is widely used for stage, exhibition, and event structures. The T40 4-way corner connects four truss sections in a cross-formation, making it ideal for building grids, stage frames, and exhibition rigs. Constructed from 50x2mm main tubes and 20x2mm diagonal braces of aluminium, each corner is supplied with conical connectors for secure assembly. This black powder-coated version provides a professional finish suitable for stage and event environments. Please note this corner is not TÜV certified.

Click Here for Printer Friendly Version

Global Truss F34 Standard 4 Way 90 Degree Corner Features

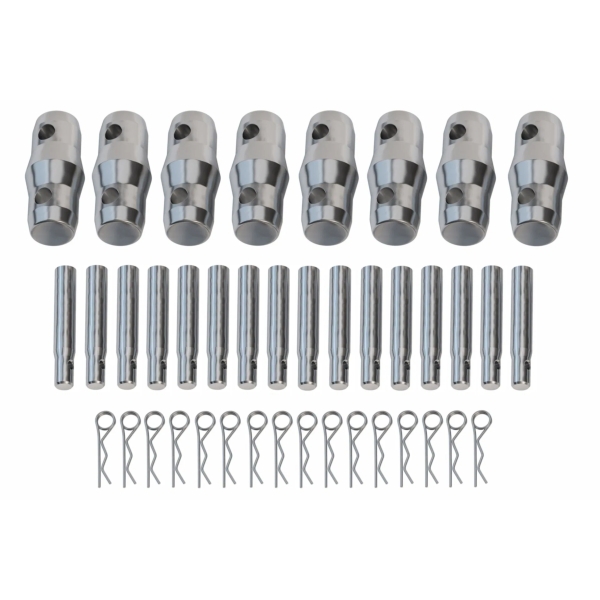

- Supplied with 8 x Conicals, 16 x Pins and 16 x R-Clips
- 2mm wall thickness aluminium
- 4-way T40 cross-corner design
- Powder coated black finish

Global Truss F34 Standard 4 Way 90 Degree Corner Specifications

- Colour: Black
- Material: Al EN AW-6082 T6
- TÜV Certificate: No
- Edge Dimension: 29cm
- Number of Points: 4-point
- System: F34
- Type: Corner
- Main Tube: 50x2mm
- Brace: 20x2mm
- Dimensions (L/W/H): 500 x 500 x 500mm
- Weight: 9.5kg
