Global Truss F34 Standard T Piece - Black

Name: Global Truss F34 Standard T Piece - Black
Brand: Global Truss
Price: 305.51 GBP
Availability: InStock

Price Each £254.59 (£305.51 Including VAT at 20%)

REF: JP113264

Quantity:

Global Truss F34 Standard T Piece - Black

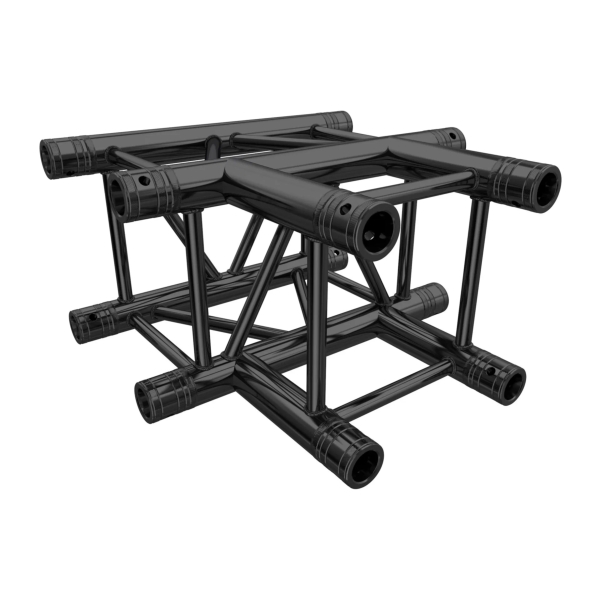

The Global Truss F34 Standard T Piece is a versatile 4-point system with an external dimension of 29cm. With its excellent load capacity relative to weight and size, the F34 system is widely used for stage, exhibition, and event structures. The T35 3-way corner connects truss sections in a T-formation, ideal for building frames, grids, and branching truss structures. Constructed from 50x2mm main tubes and 20x2mm diagonal braces of aluminium, each corner is supplied with conical connectors for secure assembly. This black powder-coated version provides a professional finish suitable for stage and event environments. Please note this corner is not TÜV certified.

Click Here for Printer Friendly Version

Global Truss F34 Standard T Piece Features

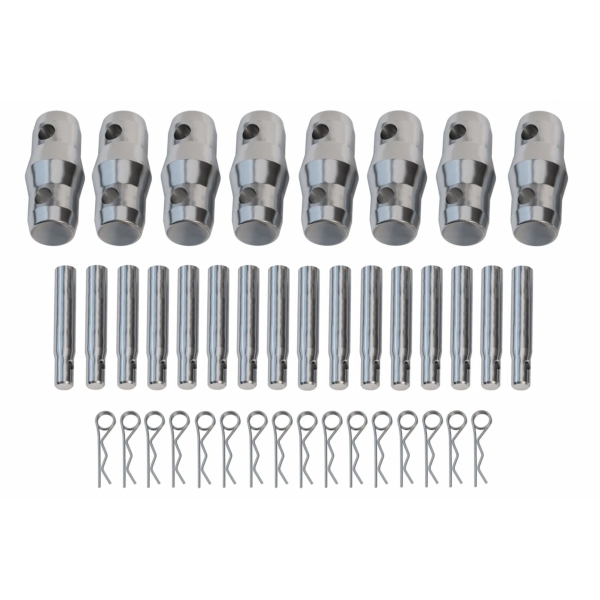

- Supplied with 8 x Conicals, 16 x Pins and 16 x R-Clips
- 2mm wall thickness aluminium
- 3-way T35 corner design
- Powder coated black finish

Global Truss F34 Standard T Piece Specifications

- Colour: Black
- Material: Al EN AW-6082 T6
- TÜV Certificate: No
- Edge Dimension: 29cm
- Number of Points: 4-point
- System: F34
- Type: Corner
- Main Tube: 50 x 2mm
- Brace: 20 x 2mm
- Dimensions (L/W/H): 290 x 500 x 500mm
- Weight: 7.8kg
