Hollyland Astra P1 PTZ 4k Camera

Hollyland Astra P1 PTZ 4k Camera Features

- 5-Year Warranty

Imaging:
- UHD 4K60
- 1/⅛-inch High-quality CMOS Sensor
- 8.42 Megapixels (16:9 aspect ratio)
- 30x Zoom (f=7.1mm~210mm)
- 16x Digital Zoom
- Face Detection AE
- Minimum Illumination: 0.5 Lux (F1.8, AGC ON)
AI Auto Tracking:
- Presenter Tracking
- Zone Tracking
- Define up to 4 key areas (podium, whiteboard, demo table, etc.)
Control & Workflow:
- NDI|HX3 Support
- Web Control
- A single PoE+ cable delivers 4K video, audio, power, and control.
- Optional PTZ Controller
- Supports simultaneous output via HDMI 2.0, 3G-SDI, USB, and LAN.
- Fully supports NDI|HX3, VISCA, Pelco, and more.
- Manage up to 254 cameras and 255 presets per unit.
- Broadcast Tally Support

Hollyland Astra P1 PTZ 4k Camera Specifications

- Image Sensor: 1/⅛-inch High-quality CMOS Sensor
- Effective Pixels: 8.42 Megapixels (16:9 aspect ratio)
- Optical Zoom: 30x Zoom (f=7.1mm~210mm)
- Digital Zoom: 16x
- Video Format HDMI: 2160p25/29.97/30/50/59.94/60, 1080p29.97/30/50/59.94/60, 1080i50/59.94/60, 720p59.94/60
- Video Format 3G-SDI: 1080p25/29.97/30/50/59.94/60, 1080i50/59.94/60, 720p59.94/60
- Aperture Range: F1.61~F5.19
- Field of View (H/V): Horizontal 59.2°~2.5°, Vertical 34.6°~1.4°
- Minimum Illumination: 0.5 Lux (F1.8, AGC ON)
- Shutter Speed: 1/30s~1/10000s
- Signal-to-Noise Ratio (SNR): ≥55dB
- Rotation Range: Pan ±170°, Tilt -30°~+90°
- Rotation Speed: Pan 1.7°/s~100°/s, Tilt 1.7°/s~69.9°/s
- Preset Positions: 255 Positions (Accuracy: 0.1°)

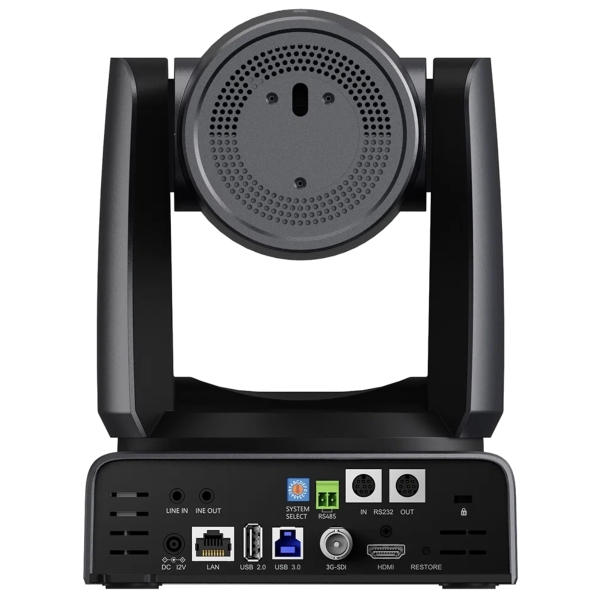

- Audio: 1 x 3.5mm LINE IN, 1 x 3.5mm LINE OUT
- Communication: 1 x RS485 (2-pin Phoenix Terminal), 1 x RS232 IN (8-pin Mini-DIN)
- Network: 1 x RJ45 10M/100M/1000M Adaptive Ethernet
- USB: 1 x USB 2.0 Type-A, 1 x USB 3.0 Type-B
- Video: 1 x 3G-SDI, 1 x HDMI 2.0
- Power: DC 12V (JEITA Type)
- Video Compression: H.264 / H.265 / MJPEG
- Video Streams: Main Stream (First Stream), Sub Stream (Second Stream)
- Main Stream Resolution: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360
- Sub Stream Resolution: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240
- Supported Protocols: NDI|HX3, TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc.
- Input Voltage: DC 12V/PoE+
- Input Current: 2A (max.)
- Power Consumption: 18W (max.)
- Operating Temperature: 32°F~104°F (0°C~40°C)
- Storage Temperature: -40°F~140°F (-40°C~60°C)
- Dimensions: 169 x 188 x 226 mm
- Net Weight: Approx 2.3 kg

Further Product Information Below

Hollyland Astra P1 PTZ Manual (PDF)

Hollyland Astra P1 PTZ Data Sheet (PDF)
