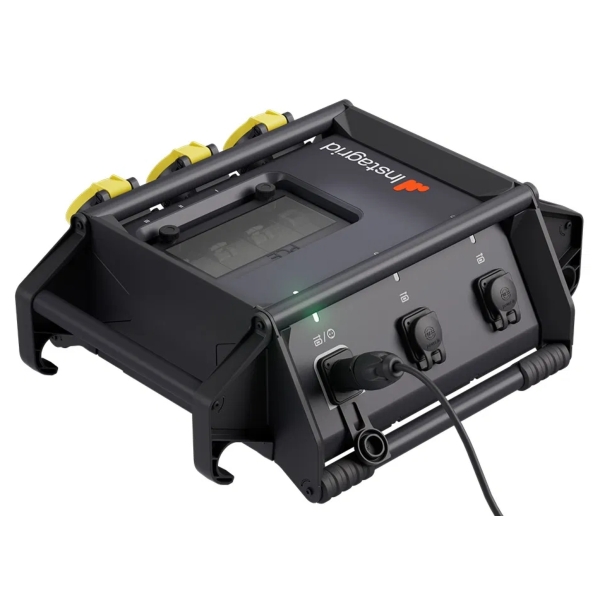

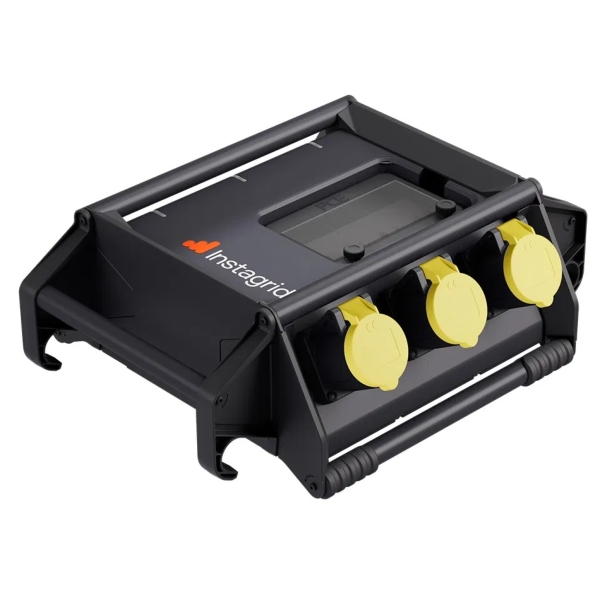

Instagrid LINK 36 230V Portable Power Supply - IP54

The Instagrid LINK 36 230V Portable Power Supply is a compact and intelligent power distributor that expands the capabilities of the Instagrid ONE portable power supply. Designed for professionals in events, film, broadcast, and mobile operations, it allows you to safely power multiple devices, extend runtime, and create continuous backup systems — all with zero noise, fumes, or disruption.

With Island Mode, you can connect up to three Instagrid ONE units to triple your energy capacity — perfect for long off-grid jobs. Units can be hot-swapped during operation, delivering effectively unlimited power. In Continuous Power Mode, LINK seamlessly switches between mains and battery within 20 milliseconds, keeping even sensitive equipment running without interruption.

Power up to three devices simultaneously, thanks to three 230V RCD-protected outputs. Whether you're supporting a film shoot, DJ setup, or field deployment, Instagrid LINK delivers flexible, safe, and clean power in a rugged IP54-rated form.

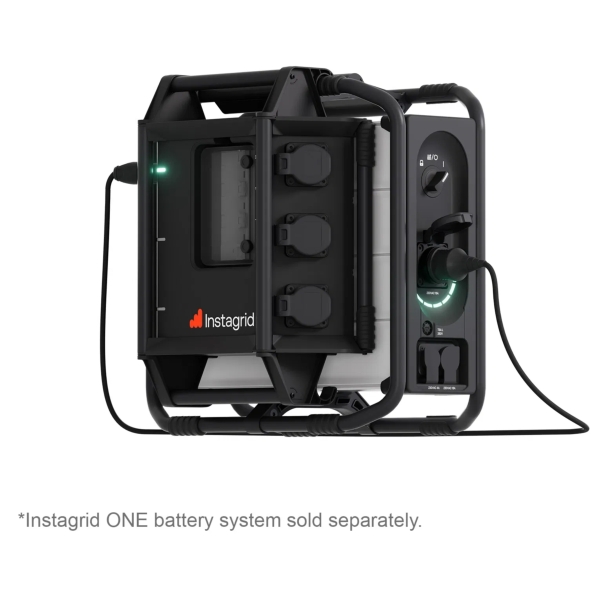

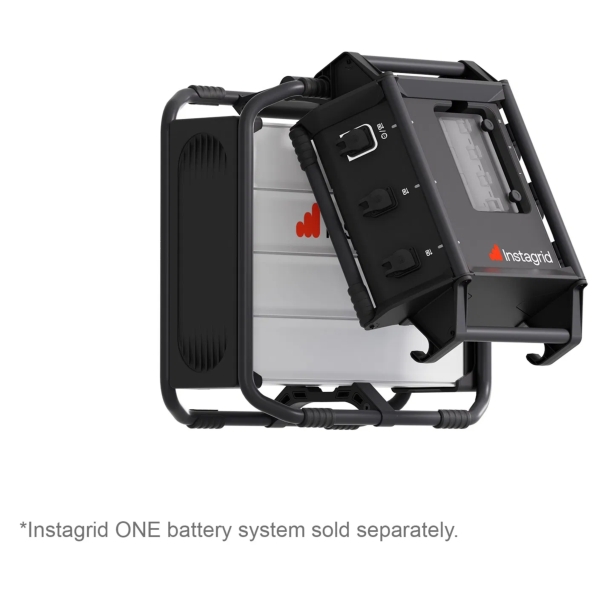

Please Note: This is an accessory for the Instagrid ONE (JP110944)

Click Here for Printer Friendly Version

Instagrid LINK 36 230V Portable Power Supply Features

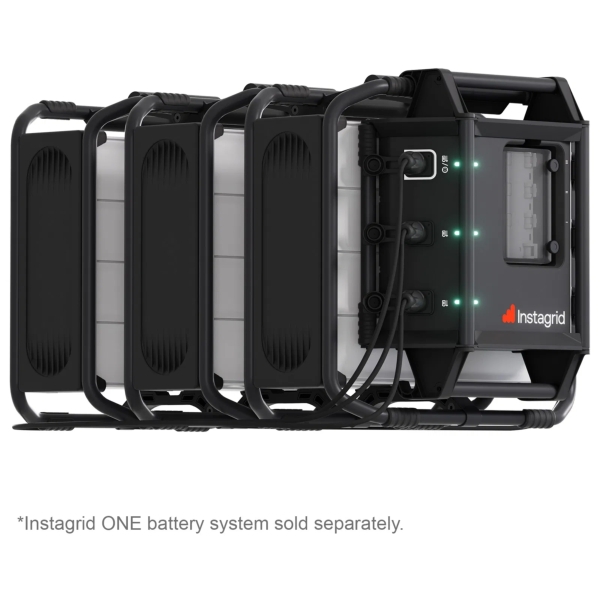

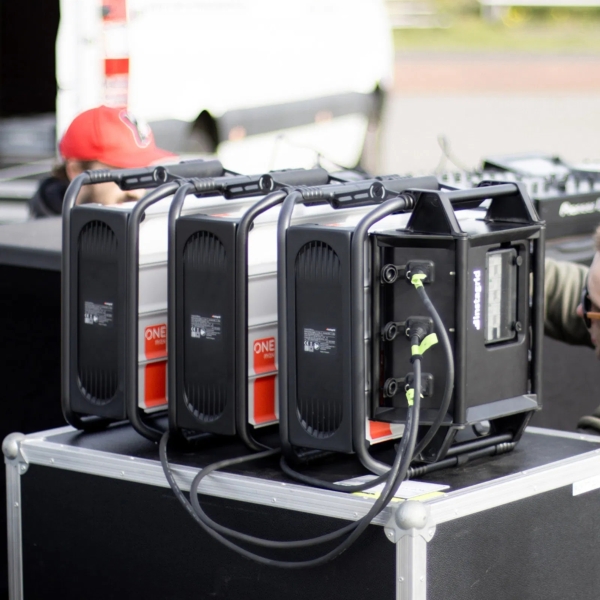

- Connect up to 3 Instagrid ONE units for expanded energy capacity
- Hot-swappable batteries for virtually unlimited runtime

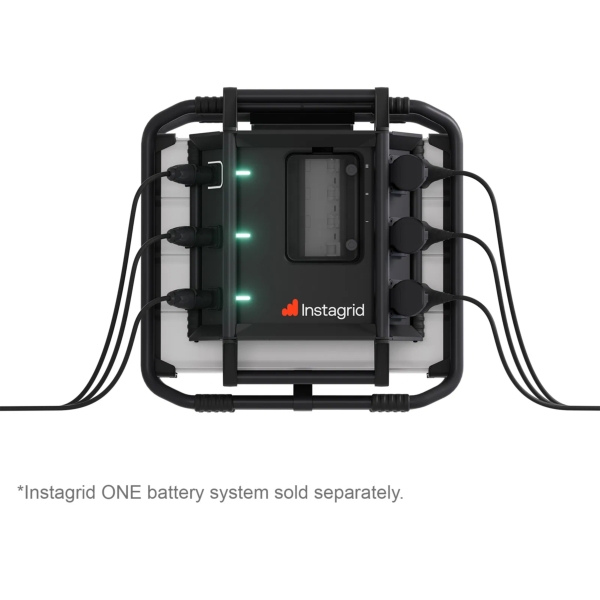

- 3x individually RCD-protected 230V outputs (CEE-Form IEC 60309)
- Seamless switch from mains to battery in under 20ms
- Compact, rugged steel frame weighing only 4.5kg
- IP54 rated for indoor and outdoor use

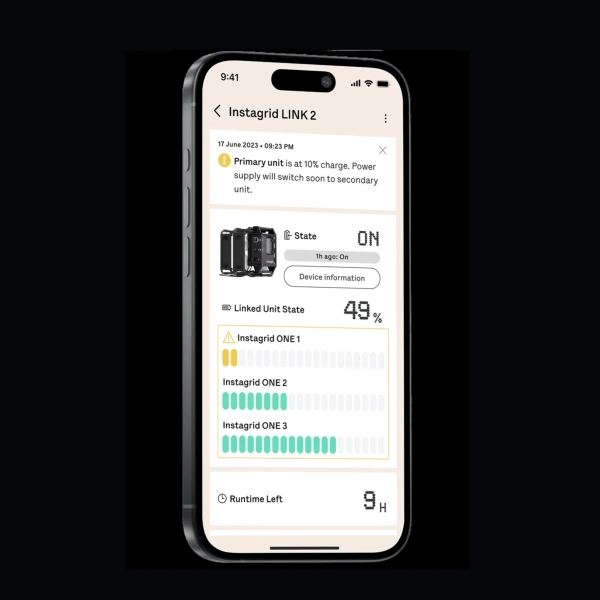

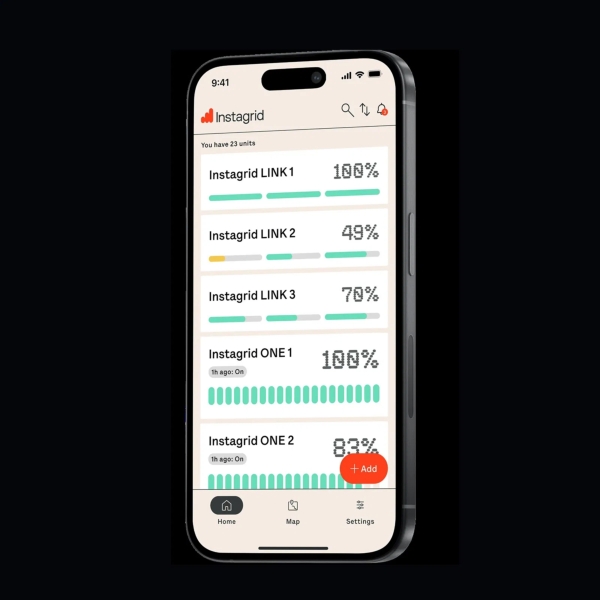

- Compatible with Instagrid App for monitoring location, runtime, and charge
- Example use cases:

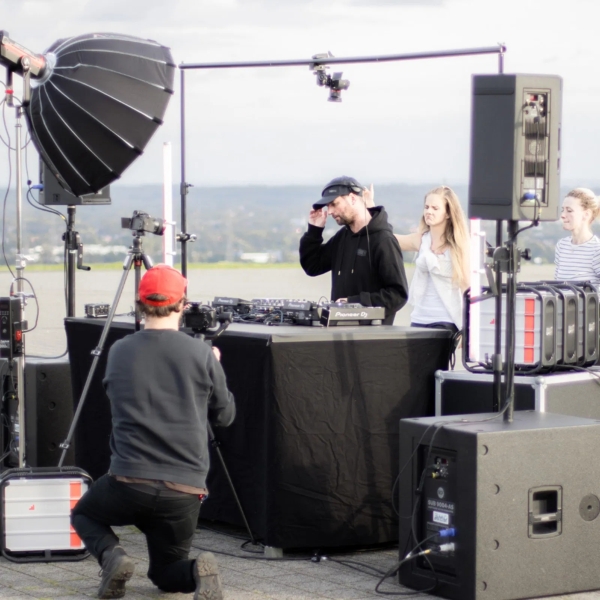

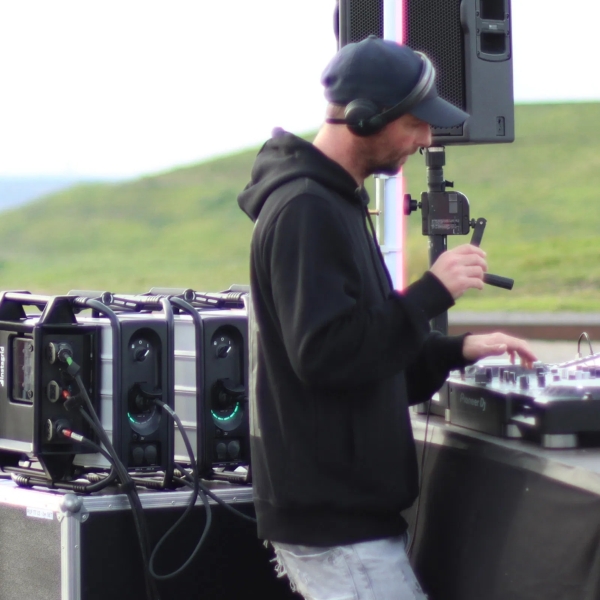

  - Power DJ controller, LED lights, and haze machine simultaneously
  - Keep camera cranes and coffee machines running all day
  - Avoid unsafe extension cables and noisy petrol generators on-site

Instagrid LINK 36 230V Portable Power Supply Specifications

- Compatible With: Instagrid ONE or any 230V AC power source
- Output Voltage: 230V AC / 50Hz
- Output Current: 16A
- Switching Time: < 20ms (mains to battery switchover)
- Rated Outputs: 3x CEE-Form (IEC 60309) 16A / 230V
- RCD Protection: 3x 1P+N RCD Type A (30mA), one per socket
- Line Protection: 1P B16 circuit breaker

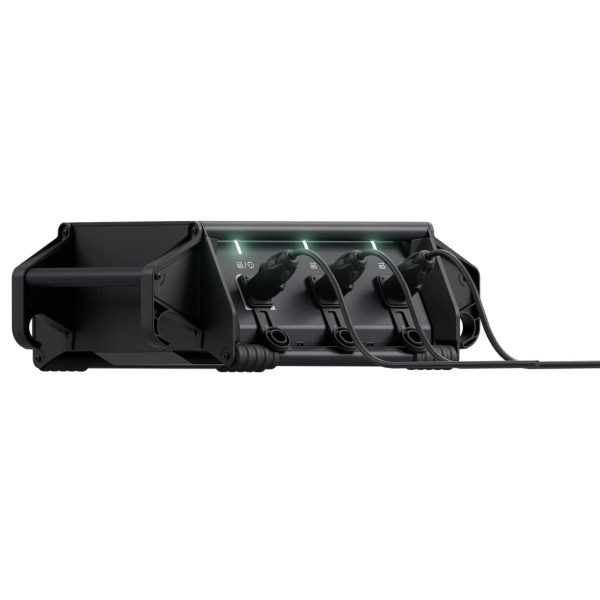

- Input Connections: 3x Neutrik PowerCON TRUE1 TOP (1x primary, 2x secondary)
- Mounting Options: Hook & release, screw, feet, velcro straps
- Weight: 4.5kg
- Dimensions: (Not listed; similar in size to Instagrid ONE footprint)
- IP Rating: IP54 – dust and splash resistant
- Protection Class: Class II / Double-insulated
- Operating Temperature: –15°C to +40°C
- Delivery Scope: 1x LINK unit, 1x connection cable (Neutrik to output)
