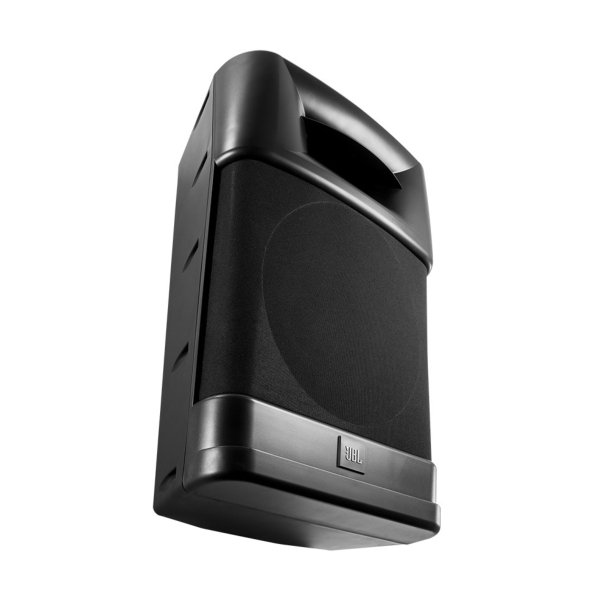

JBL 9300 - 2-Way Passive Cinema Surround Loudspeaker
The JBL 9300Cinema Surround offers high 250 Watt power handling capability, high sensitivity, and extended base response in a groundbreaking design. The two-way 9300 features new transducer technologies, waveguide and horn designs developed specifically to produce studio quality performance with pattern control tailored to modern theatre geometries.
Combining JBL’s Image Control Technology and new asymmetric wave-shaping techniques, the 9300 surround features a Wave Shaping Vane, integral to the design, to distribute acoustic energy in proper proportion to the room. This technique provides a wave-front that is sculpted to the room geometry and provides very precise coverage capability.
The 9300 features a high power, long throw 250mm (10 inch) low frequency driver for smooth extended base response. The high frequency section utilises a 25mm (1 inch) composite diaphragm compression driver with high output capability.
The unique, high tech, moulded, black textured enclosureThe unique, high tech, molded, black textured enclosure with open high frequency horn and black grill will enhance any décor.
250 Watt Power handling capability
Wave Shaping Vane distributes an acoustic energy wave-front sculpted to the room
High Frequency Horn features JBL Image Control Technology for precise pattern control
Three separate horizontal mounting planes at 15 degree angles for specific positioning to improve coverage

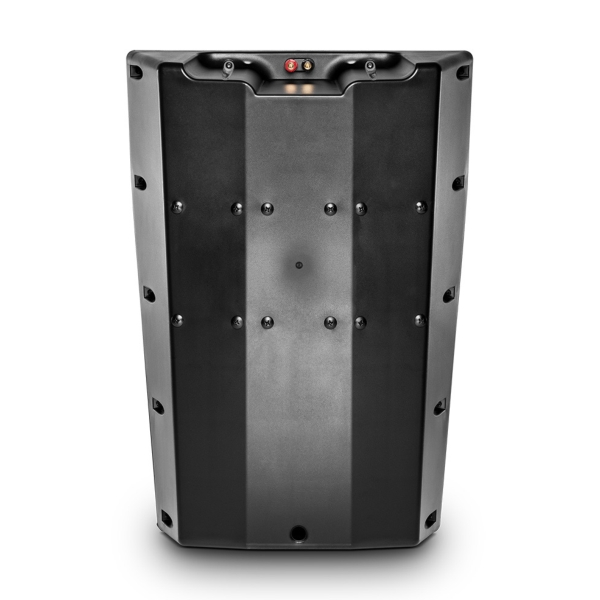

Input terminals on top of cabinet for easy access
Lightweight, Rigid moulded enclosure
Uniform asymmetric 60 degree vertical coverage and 110 degree horizontal coverage
Frequency Range (-10 dB) 50Hz – 25kHz (2p) / 60Hz – 25kHz (4p)
Frequency Range (±3 dB) 60Hz – 20kHz (2p) / 100Hz – 20kHz (4p)
Coverage Pattern 110º × 60º asymmetric >2kHz
Power Handling 30v @ 100hrs, 40v @ 2hrs, IEC/Pink 250W continuous pink noise
Sensitivity 96dB SPL @ 2.83v
Maximum dB SPL 120 dB continuous, 126 dB peak
Rated Impedance 8 Ohm
Minimum Impedance 7 Ohm @ 200Hz
Crossover Frequencies 2800Hz
Low Frequency 610H
High Frequency 2414H-1
System Polarity Woofer (IEC), HF (JBL)
System Protection Network only
System Input Type Banana
Enclosure Volume 1700 sq in. (unoccupied)
Dimensions (H x W x D) 22 x 16 x 11 inches
Weight 21 lbs (ea.)
