JBL 9310 - High Power Cinema Surround Loudspeaker
The JBL 9310 Cinema Surround offers high 350 Watt power handling capability, high sensitivity, and extended base response in a groundbreaking design. The two-way 9310 features new transducer technologies, waveguide and horn designs developed specifically to produce studio quality performance with pattern control tailored to modern theatre geometries.
Combining JBL’s Image Control Technology and new asymmetric wave-shaping techniques, the 9310 surround features a Wave Shaping Vane, integral to the design, to distribute acoustic energy in proper proportion to the room. This technique provides a wave-front that is sculpted to the room geometry and provides very precise coverage capability.
The 9310 features a high power, long throw 250mm (10 inch) low frequency driver for smooth extended base response. The high frequency section utilises a 25mm (1 inch) composite diaphragm compression driver with high output capability.

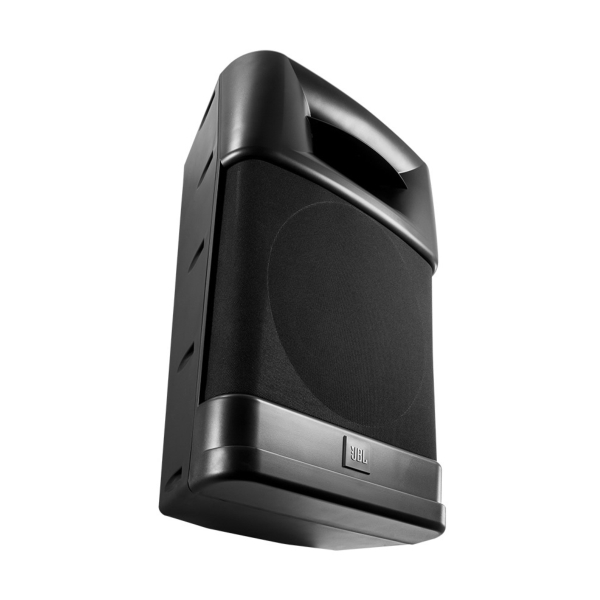

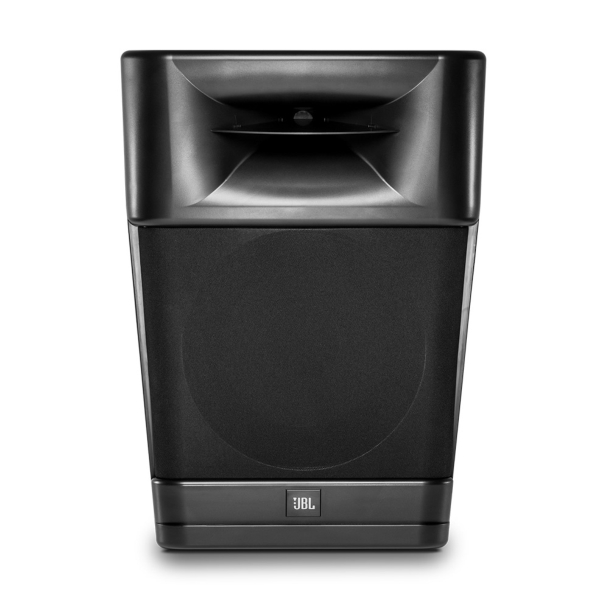

The unique, high tech, molded, black textured enclosure with open high frequency horn and black grill will enhance any décor.
Built to traditional JBL quality standards, the 9310 will stand up to long term use, even under adverse conditions while delivering excellent performance.
350 Watt Power handling capability
Wave Shaping Vane distributes an acoustic energy wave-front sculpted to the room
High Frequency Horn features JBL Image Control Technology for precise pattern control

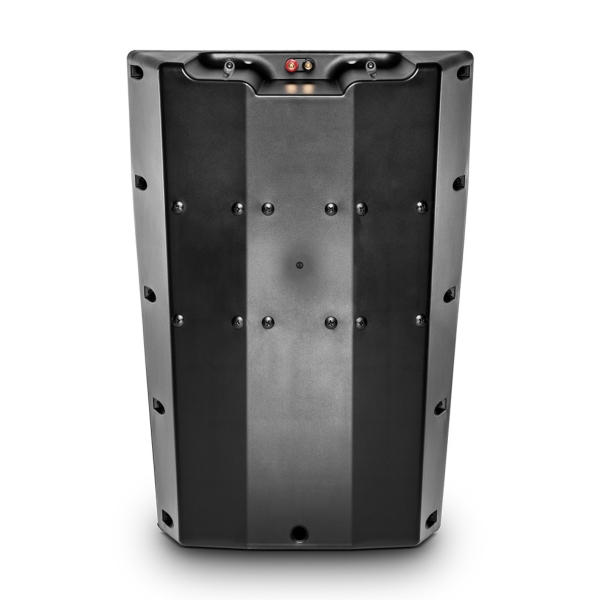

Three separate horizontal mounting planes at 15 degree angles for specific positioning to improve coverage
Input terminals on top of cabinet for easy access
Lightweight, Rigid molded enclosure
Uniform asymmetric 60 degree vertical coverage and 110 degree horizontal coverage
Frequency Range (-10 dB) 50Hz – 25kHz (2p) / 60Hz – 25kHz (4p)
Frequency Range (±3 dB) 60Hz – 20kHz (2p) / 100Hz – 20kHz (4p)
Coverage Pattern 110º × 60º asymmetric >1kHz
Power Handling 40v @ 100hrs, 48v @ 2hrs, IEC/Pink 350W continuous power
Sensitivity 99dB SPL @ 2.83v
Maximum dB SPL 124 dB continuous, 130 dB peak
Rated Impedance 8 Ohm
Minimum Impedance 7 Ohm @ 200Hz
Crossover Frequencies 2600Hz
Low Frequency M110-8
High Frequency 2414H
System Polarity Woofer (IEC), HF (IEC)
System Protection Network only
System Input Type Banana
Enclosure Volume 1700 sq in. (unoccupied)
Dimensions (H x W x D) 22 x 16 x 11 inches
Weight 25 lbs (ea.)
