JBL 9320 12" High Power Cinema Surround For Multi Channel Applications

JBL 9320 12

JBL 9320 12" High Power Cinema Surround For Multi Channel Applications

Price Each 688.16 Exc VAT or (825.79 Inc VAT at 20%)

.

Ref: JP3274

<Back

Click Here For PDF User Manual

The JBL 9320 Cinema Surround Speaker offers very high power handling, high sensitivity, and extended bass response. The two-way 9320's performance features position it as the ideal high power surround for multi-channel surroundapplications.

Features

  • 35 Hz to 20 kHz Frequency Range
  • High Sensitivity, 98 dB SPL, 1 w, 1 m (3.3 ft) High Power Handling Capability.
  • 400 watts continuous pink noise
  • Multiple M-10 threaded mounting points
  • 120 x 60 Coverage
  • Multi-ply birch enclosure

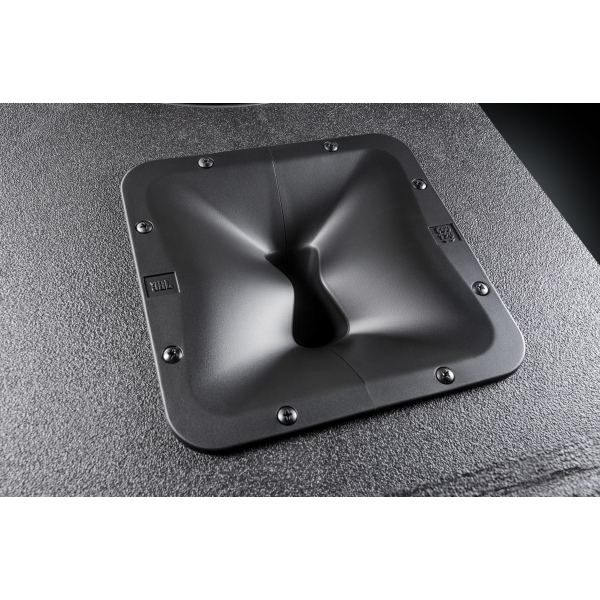

  • Progressive Transition high frequency waveguide
  • Input terminals located on top of cabinet for easy access

Specifications

Frequency Range (-10 dB) 35 Hz-20 kHz
Frequency Response (3 dB) 50 Hz-19 kHz
Power Rating 400 Watts continuous pink noise, 1600 Watts peak
Sensitivity (1W/1m) 98 dB-SPL half space/ wall mounted
Maximum Peak SPL 124 dB/1m
Nominal Impedance 8 ohms
Hor. Coverage Angle (-6 dB) 120 averaged 2 kHz to 10 kHz
Vert. Coverage Angle (-6 dB) 60 averaged 2 kHz to 10 kHz
Directivity Factor (Q) 6.3 averaged 800 Hz to 10 kHz
Directivity Index (DI) 8.4 dB averaged 800 Hz to 10 kHz
Crossover Frequency 1.9 kHz
Polarity EIA (Positive voltage to RED terminal gives forward cone motion)
Low Freq Transducer Nominal 300 mm (12 Inch)
High Freq Transducer Nominal 38 mm (1.5" voice coil)
Downward Firing Angle Nominal 15??? when mounted flush on wall
Enclosure Material Birch multi-ply
Grille Color Black

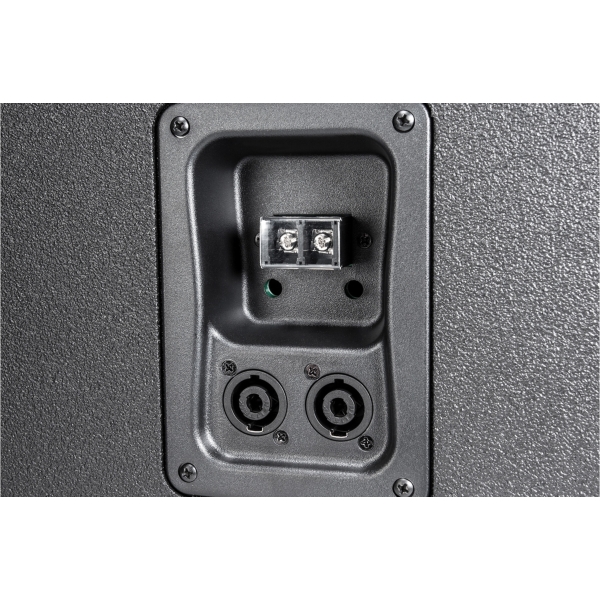

Input Connectors NL4 Neutric Speakon and barrier strip
Dimensions (H x W x D) 638.3 mm x 368.3 mm x 416.6 mm 26.9 in x 14.5 in x 16.4 in
Net Weight 17.5 kg (38.5 lbs)
