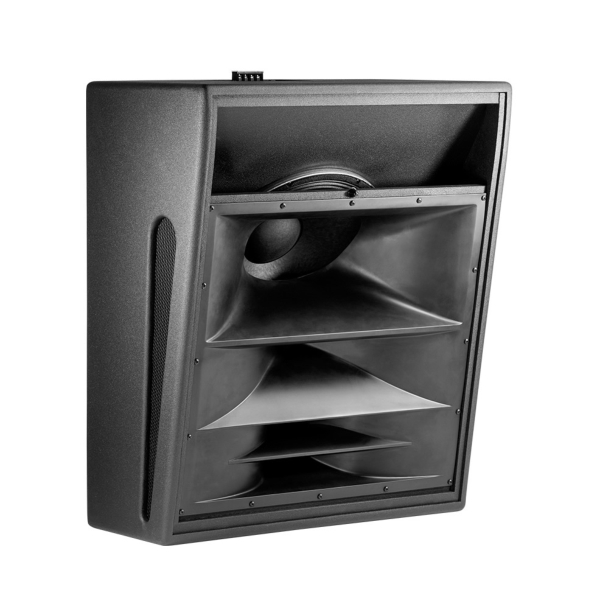

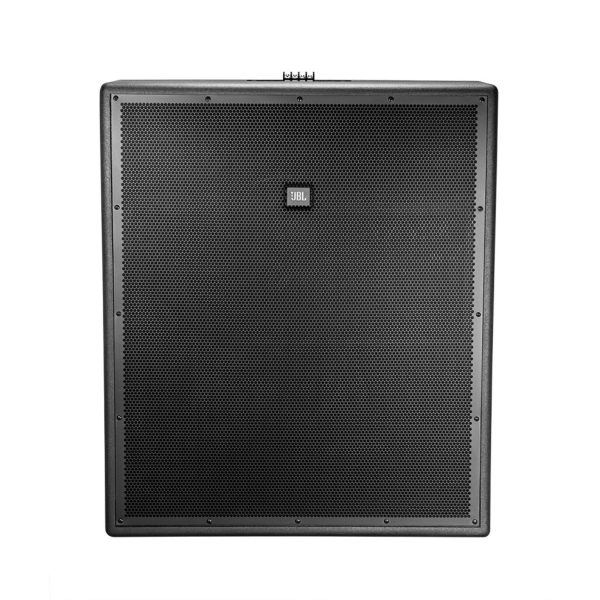

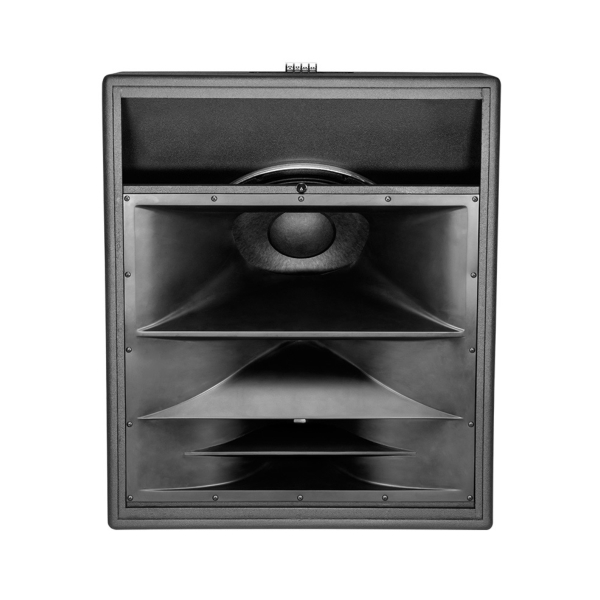

JBL 9350 - High Output/High Impact Cinema Surround Loudspeaker w/Configurable Pattern

The JBL 9350 packs a sonic punch, and delivers extraordinary coverage through its advanced engineering, including three patent-pending technologies. Each loudspeaker generates a sculpted side or rear pattern, adjusted with the flick of a switch. With a passive crossover network, waveguide technologies, and line array techniques, coverage can be adjusted to fit a theatre's unique environment. The 9350 further enhances coverage by configurable vertical and horizontal coverage angles based on whether the surround is located on the rear or side wall location.

The result? Premium performance and left/right balance overall, an accomplishment unheard of in cinema. It means the sonic sweet spot just got a whole lot bigger, and that sculpted, impactful sound now comes from all sides. Ultimately, the audience becomes immersed in an audio experience like none other. Rely on the 9350, the ideal complement to front screen loudspeakers, for superior sonic character and dynamics - everywhere.

FEATURES

350 Watt Power handling capability
Dual Dissimilar Arraying
- Creates line array pattern control with just two horns
- Simple switch engages a sculpted side or rear coverage pattern
- Extends HF output power and pattern control a full octave in both spectrum extremes
Acoustic Divider Waveguide
- Greatly improves midrange performance of the Differential Drive 15 inches woofer
- Smooth crossover transition created by very tight driver spacing and control of break up mode energy
Bi-pole Wall Decoupling
- Acoustic Divider waveguide creates a low frequency acoustic Bi-pole
- Reduces wall reflection notching typical of surrounds by shaping rear hemisphere energy

SPECIFICATIONS

Power Rating 350W
Maximum Measured SPL (Passive) 130 continuous, 133 peak
Horizontal Coverage Angle (-6 dB) 70 / 120 (Rear/Side Configuration)
Frequency Range (-10 dB) 34 Hz - 20kHz
Frequency Range (-3 dB) 40 Hz - 18kHz
Configurable Coverage Patterns SIDE/REAR
Nominal Impedance 8 Ohm
Sensitivity (1W/1m) free field 99dB
Vertical Coverage Angle (-6 dB) Configurable
Crossover Frequency 2,200Hz
Low Frequency Transducer 265H-1
High Frequency Transducer 1 x HF 2408H & 1 x 2414H
265H-1 Dimensions Nominal Diameter 15" (38.1 cm)
2408 Dimensions Nominal Diameter 1.5" (3.8 cm)
2424 Dimensions Nominal Diameter 1" (2.5 cm)
Downward Firing Angle 10 for enclosure face
Enclosure Material Plywood
Grille Colour Black
Input Connectors Barrier Strip
Dimensions (H x W x D) 30.3 x 25.5 x 16.5 inches (769.6mm x 647.7mm x 419.1mm)
Net Weight 64 lbs (29.03 kg) ea.
Bracket JBL-2520
