JBL AW566 - Grey - All Weather High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn

JBL AW566 - Grey - All Weather High Power 2-Way Loudspeaker with 1 x 15

JBL AW566 - Grey - All Weather High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn

Price Each 3,268.33 Exc VAT or (3,922.00 Inc VAT at 20%)

.

Ref: JP3579

<Back

Click Here For PDF User Manual

JBL AW566 High Power 2-Way All Weather Loudspeaker with 1 x 15 Inch LF & Rotatable Horn - Grey

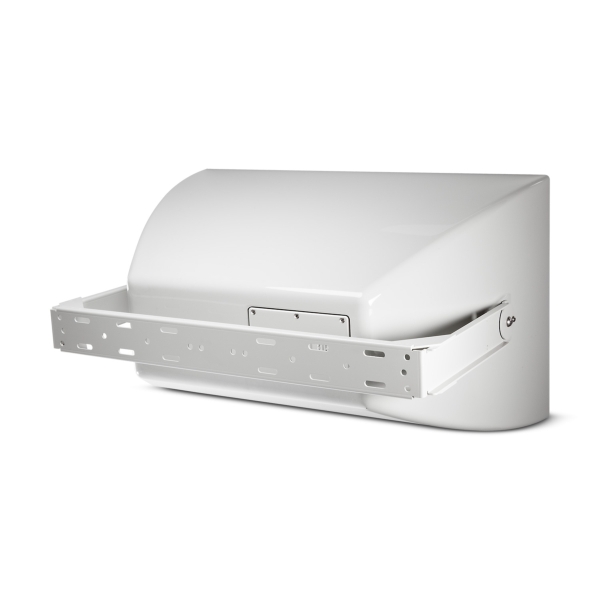

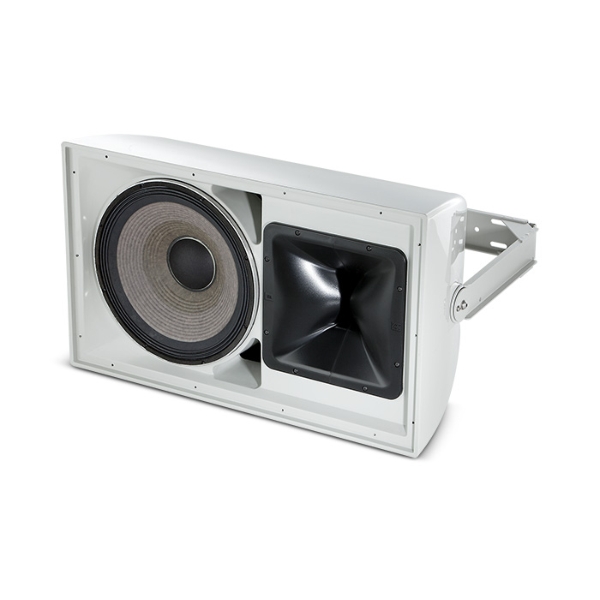

The JBL AW566 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60 x 60 Coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 9 corners. The AW566 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features

  • Weather-Resistant, All Fiberglass Enclosure
  • 60 x 60 Coverage
  • 2265H-1 Differential Driver Low- Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT Progressive Transition waveguide for excellent pattern control and low distortion
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included

Specifications

Frequency Range (-10 dB) 35 Hz - 20 kHz
Frequency Response (3 dB) 54 Hz - 18 kHz
Coverage Pattern 60 x 60
Directivity Factor (Q) 15.8
Directivity Index (DI) 12 dB
Crossover Frequency 1.1 kHz
Long-Term System Power Rating (IEC) 600 W (2400 W peak), 100 hrs
Maximum SPL 128 dB-SPL cont avg (134 dB peak)
System Sensitivity (1W @ 1m) 100 dB SPL
70V/100V Transformer Taps 70V: 400 W, 200 W, 100W100V: 400W, 200W
Low Frequency Driver 1 x JBL 2265H 380 mm (15 in) Differential Driver driver with 75 mm (3 in) dual voice coil
LFD Nominal Impedance 8 ohms
LFD Sensitivity (1W @ 1m, within operational band) 98 dB SPL
High Frequency Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
HFD Nominal Impedance 8 ohms
Sensitivity (1W @ 1m) 113 dB SPL
Waveguide PT-H66HF-1
Enclosure Hand-Laminated Fiberglass, gray gelcoat (black available)
Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
Grille Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.

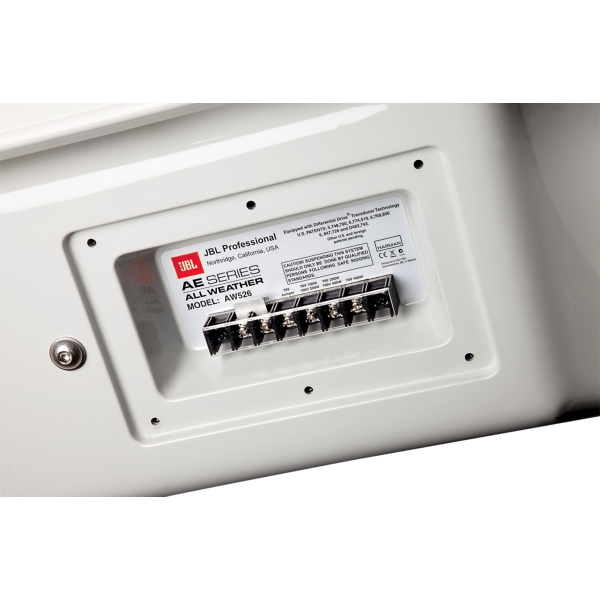

Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental Specifications IP56 per IEC 529
Dimensions (H x W x D in vertical cabinet orientation) 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)
Net Weight 28.3 kg (62.5 lb)
