JBL CBT 70J-1 Black - Constant Beamwidth Technology Two-Way Line Array Column with Asymmetrical Vertical Coverage

JBL CBT 70J-1 Black - Constant Beamwidth Technology Two-Way Line Array Column with Asymmetrical Vertical Coverage

JBL CBT 70J-1 Black - Constant Beamwidth Technology Two-Way Line Array Column with Asymmetrical Vertical Coverage

Price Each 1,138.20 Exc VAT or (1,365.84 Inc VAT at 20%)

.

Ref: JP3337

<Back

Click Here For PDF User Manual

JBL CBT 70J-1 Black - Constant Beamwidth Technology Two-Way Line Array Column with Asymmetrical Vertical Coverage,

Constant Beamwidth Technology Two-Way Line Array Column with Asymmetrical Vertical Coverage. With improved mounting bracket for enhanced aiming flexibility and stronger grille.

The CBT 70J-1, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers. (shown with included grille removed)

Features

  • Asymmetrical vertical coverage sends more sound toward far area of room to make front-toback sound levels more consistent
  • Sixteen 25 mm (1 in) soft dome tweeters and four 125 mm (5 in) high-power LF drivers, arranged coaxially
  • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing

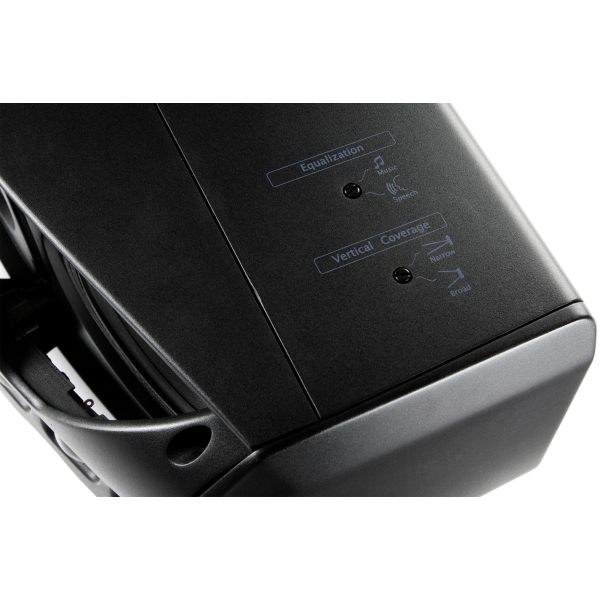

  • Vertical pattern coverage switchable between 45 for medium-throw coverage and 25 for long-throw applications
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
  • Dynamic SonicGuard overload protection of HF devices
  • Swivel (pan) / tilt wall bracket included

Specifications

Components
Four 130 mm (5 in) LF drivers
Sixteen 25 mm (1 in) HF drivers
Frequency Range (-10 dB) 60 Hz 20 kHz
Coverage
Vertical (selectable via switch)
Narrow Mode: 25 (2 kHz - 16 kHz) (10)
Broad Mode: 45 (750 Hz - 16 kHz) (10)
Horizontal 150 (500 Hz 8 kHz, 20)
Sensitivity (2.83V@ 1m)
Narrow: (speech mode) 98 dB (1 kHz - 8 kHz)
(music mode) 93 dB (300 Hz - 18 kHz)
Broad: (speech mode) 96 dB (1 kHz - 8 kHz)
(music mode) 92 dB (300 Hz - 18 kHz)
Nominal Impedance 8 ohms
Power Capacity
500 W (2000 W peak), 2 hrs
350 W (1400 W peak), 100 hrs
Max SPL
Narrow: (speech mode) 125 dB cont ave (131 peak)
(music mode) 120 dB cont ave (126 peak)
Broad: (speech mode) 123 dB cont ave (129 peak)
(music mode) 119 dB cont ave (125 peak)

Low Frequency Drivers
4 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance, shielded.
High Frequency Drivers 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
Enclosure
Fiberglass reinforced ABS cabinet, painted aluminium grille

Outdoor Capability IP-54 rated, per IEC529. UV, moisture and salt-spray resistant.
Colours Black or white (-WH)
Insert Points 10 M6 swivel (pan)/tilt (16 mm deep) insert points on back panel.
Mounting
Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/-15 degree tilt, as well as 5 degree fixed increment points. Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for OmniMount 60.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D)
694 x 170 x 237 mm
(27.4 x 6.7 x 9.3 in)
Net Weight 9.5 kg (21 lb)
Included Accessories Swivel (pan) / tilt wall bracket
Optional Accessories
MTC-PC2 terminal panel cover
MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy duty speaker stand
MTC-CBT-FM2 flush-mount low-profile wall-mount bracket
