JBL CSA240Z - 2 Output Channels With 40W Output. Built-in 70V And 100V. Fanless, Space-saving 1U Design. Sleep Mode Disable Function. Energy-efficient Drivecore Amplifier. Sleek Industrial Look With Illuminated Rings Making Knobs Easy To See And Use. Supports The JBL CSR-V
via CAT 5.
By combining years of innovation, invention and insight from HARMAN brands, JBL Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.
The efficient performance of Crown’s DriveCore Technology continues to set new standards in commercial power amplifier technology.
Simple to configure, the CS amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.

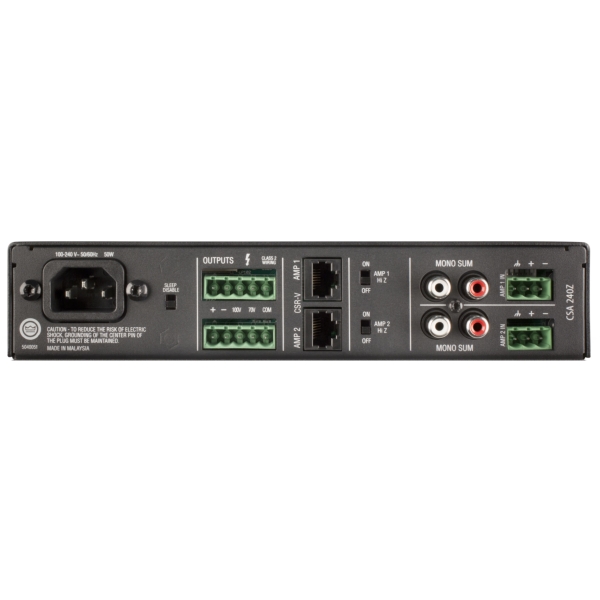

Supporting 70V and 100V installations out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls.
And with HARMAN’s GreenEdge environmental initiative, CS amps quickly pay for themselves in energy savings.
Energy Star Certified.
1 or 2 output channels with 40W, 80W, 120W per channel
Built-in 70V and 100V
Fanless, space-saving 1U design
Sleep mode disable function
Sleek industrial look with illuminated rings making knobs easy to see and use
Supports the JBL CSR-V wall controller via Ethernet cable
Universal power supply
Energy Star Certified
Power Output 40W
Output Channels 2
Input Sensitivity 1.4Vrms for 8-ohms
Phantom Power 27VDC
AC Line Voltage 100 - 240V, 50/60 Hz
Input Impedance 20K ohms/50K ohms
Dimensions 1.7 inches x 8.6 inches x 11.9 inches (43.3mm x 218.5mm x
Included Accessories Rack mounting kit
