JBL CSM14 - 4-input Mixer With One Ouput Channel. Fanless, Space-saving 1U Design.Independent Bass/treble Controls. Euro-block Type Mic/line Input And Output Connectors, And Unbalanced RCA Inputs For Consumer Connection. Supports JBL CSR-V Wall Controller Via CAT 5.
Backed by the combined technological prowess of multiple HARMAN brands, the JBL Commercial Series Mixers (CSM) deliver unsurpassed quality in commercial sound.
Easily configured for a range of applications, such as background music, security, and paging, CSM units are designed for everything from schools and hospitals to restaurants and fitness facilities.
They feature RJ45 connectors for use with JBL CSR-V in-wall volume controls, and a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz. Plus, they’re built using HARMAN’s GreenEdge clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design, and conforming to RoHS standards.
4 or 8 inputs with 1 or 2 channel outputs
Fan-less, space-saving 1U design
Configurable output routing (2 channel models only)
Independent bass/treble controls

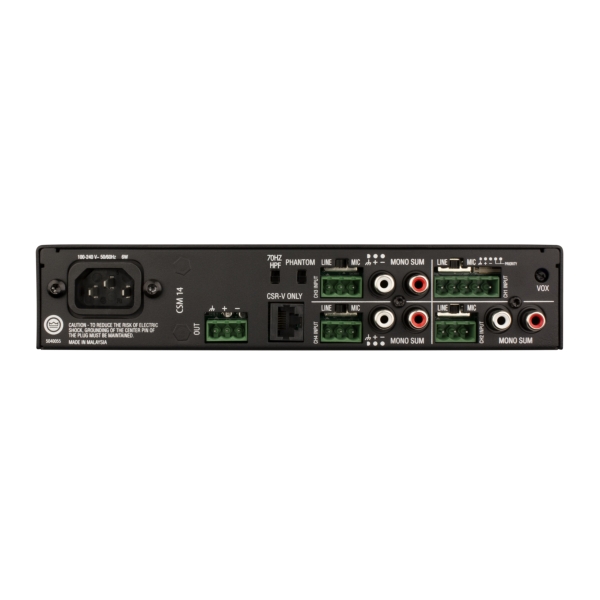

Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection
Supports JBL CSR-V wall controller via Ethernet cable
Priority muting, VOX ducking, and phantom power for all models
Output Channels 1
Input Sensitivity (Mic) 3mVrms
Input Sensitivity (Line) 775mVrms
Input Sensitivity (RCA) 300mVrms
Phantom Power 27VDC
Priority Muting Yes
Configurable Output Routing No
AC Line Voltage 100 - 240V, 50/60 Hz
Dimensions 1.7 inches x 8.6 inches x 11.9 inches (43.3mm x 218.5 mm x 303.4mm)
