JBL CSS8018 8", 10W, Commercial Series Ceiling Speakers

JBL CSS8018 8

JBL CSS8018 8", 10W, Commercial Series Ceiling Speakers

Pack of 4 132.90 Exc VAT or (159.48 Inc VAT at 20%)

.

Ref: JP3318

<Back

Click Here For PDF User Manual

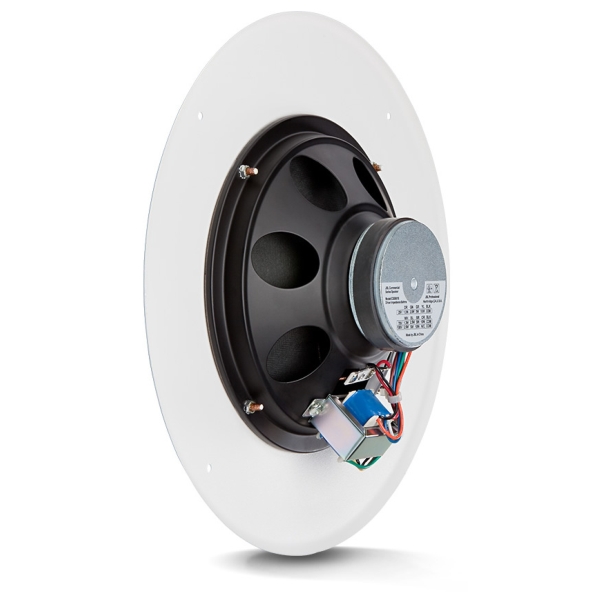

JBL CSS8018 8", 10W, Commercial Series Ceiling Speakers,

JBL's Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Features

  • Very high 97 dB sensitivity
  • 10 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • Fits CSS-BB8 backcan

Specifications

Driver Size (dual-cone) 200 mm (8 in)
Driver Sensitivity (mid-range) (1W [2.83V], 1m, 2k - 6k Hz) 97 dB
Frequency Range (-10 dB) Driver/Grille Assembly 50 Hz - 17 kHz
Installed in CSS-BB backcan 90 Hz - 17 kHz
Coverage (2 kHz) 110
Driver Continuous Power Handling 20 Watts
100V Taps 10W, 5W, 2.5W
70V Taps 10W, 5W, 2.5W, 1.3W
25V Taps 10W, 5W, 2.5W, 1.3W
Transformer Insertion Loss 1.5 dB Maximum
Transformer Connection Bare wire
Motor Mass 283 g (10 oz)
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

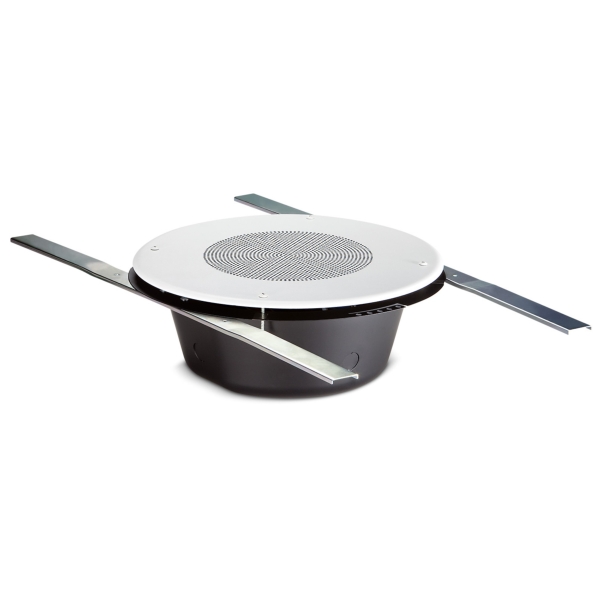

Matching CSS Backcan CSS-BB8 (0.15 cu ft)
Other Compatible Backcans MTC-81BB8 (0.26 cu ft) MTC-200BB6 (0.5 cu ft) MTC-300BB8 (1.0 cu ft)
Bolt Mounting Circle to Backcan 4 points on 286 mm (11.25 in) diameter
Cutout DiameterOpen-back 216 mm (8.5 in)
In CSS-BB backcan 295 mm (11.7 in)
Depth (behind grille) 73 mm (2.9 in)
Grille Diameter 327 mm (12.9 in)
Net Weight (ea) 1.58 kg (3.5 lb)
Shipping Weight (ea) 2.25 kg (5.0 lb)
Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
