JBL Control 414C/T Micro Plus 4-Inch 2-Way LP Ceiling Loudspeaker, 25W @ 70V/100V Line

For Install and Dealer Volume prices please contact us.

Need to Price Match it ? Click Here to see what we can do.

Price Per Pair £271.44 (£325.73 Including VAT at 20%)

REF: JP114700

Quantity:

JBL Control 414C/T Micro Plus 4-Inch 2-Way LP Ceiling Loudspeaker, 25W @ 70V/100V Line

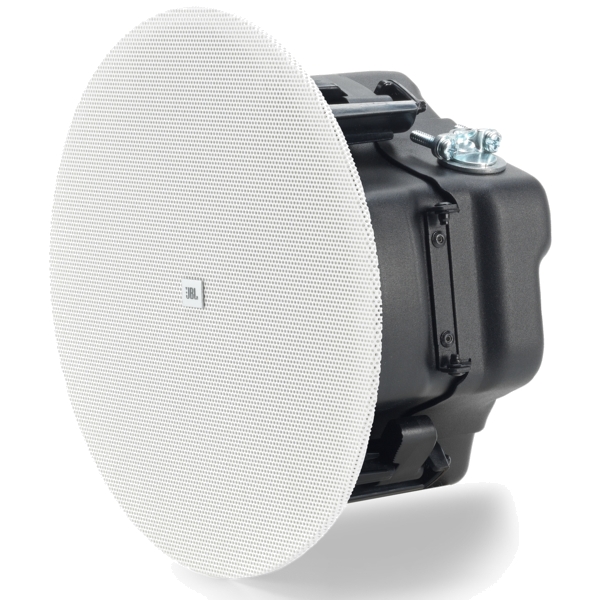

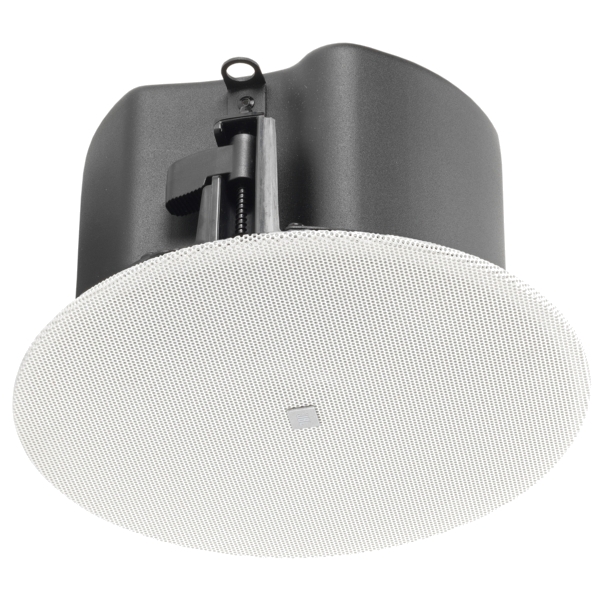

The JBL Control 414C/T Micro Plus 4-Inch 2-Way LP Ceiling Loudspeaker is a two-way high-output ceiling loudspeaker, featuring a 4-inch woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

The Control 414CT Micro Plus includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.

Efficient, Flexible Installation

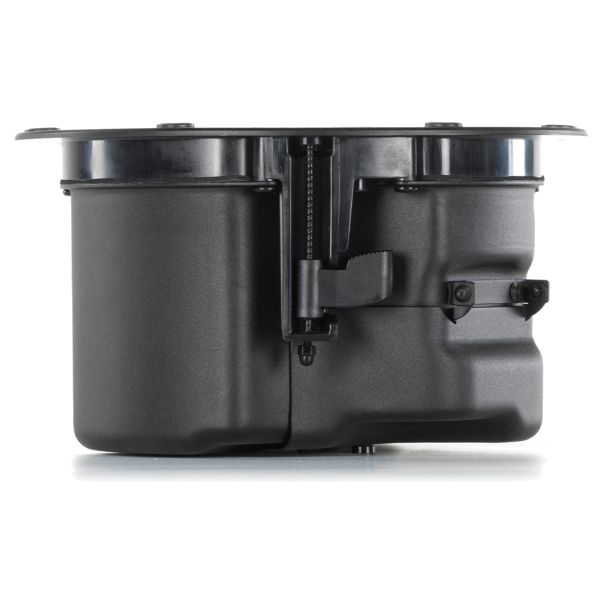

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

Refined, Modern Aesthetics

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Click Here for Printer Friendly Version

JBL Control 414C/T Micro Plus 4-Inch 2-Way LP Ceiling Loudspeaker Features

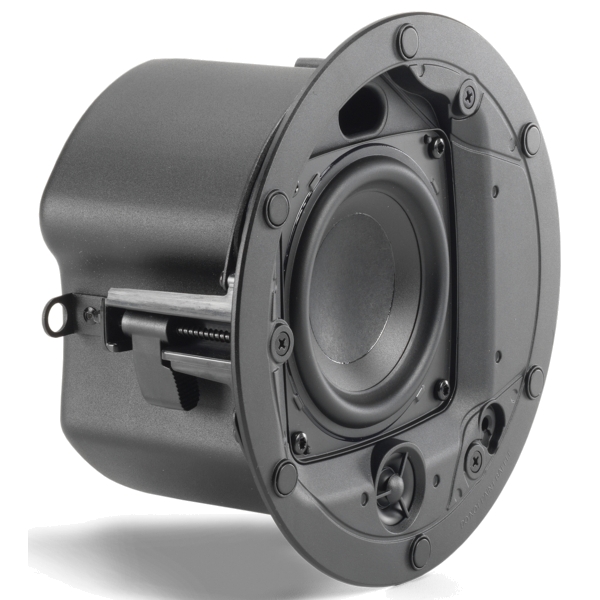

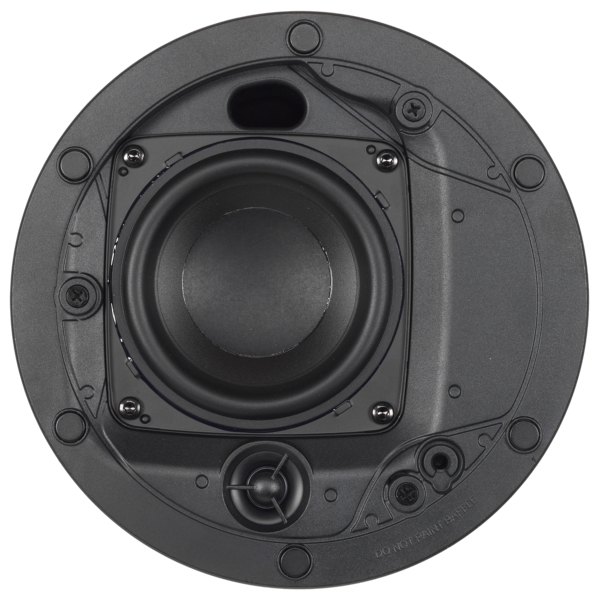

- 100 mm (4 in) woofer and 12mm (0.5 in) PEI dome tweeter
- Shallow 105 mm (4.13 in) depth
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- Built-in 70V/100V multi-tap transformer

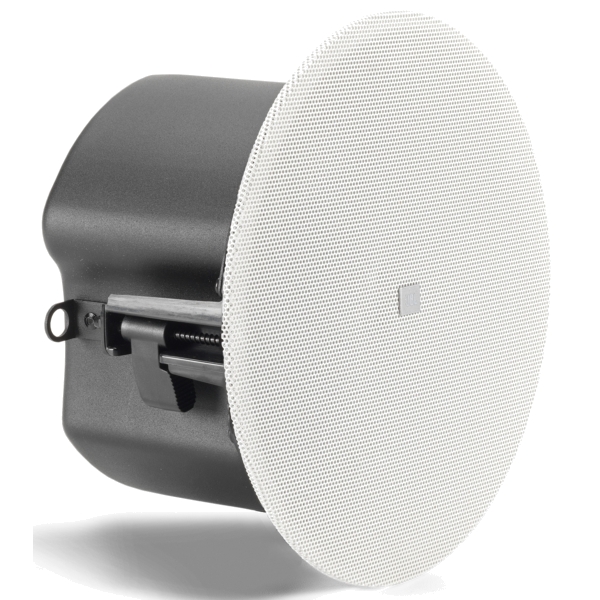

- Full-face, easily paintable magnetic grilles

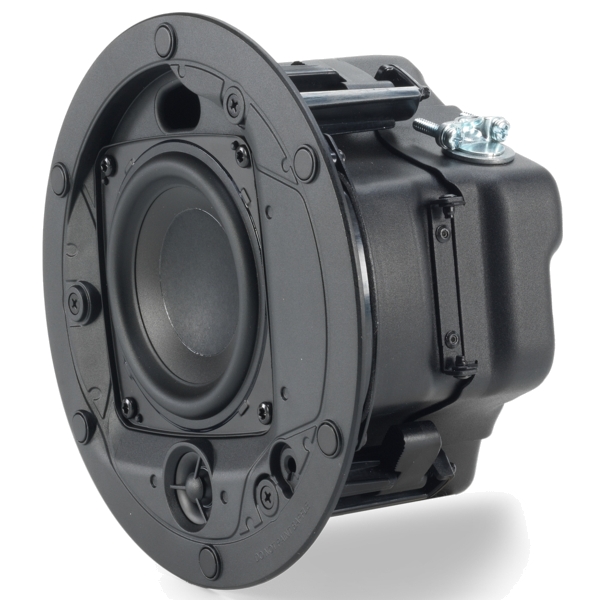

- Top and side cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP32 rated

JBL Control 414C/T Micro Plus 4-Inch 2-Way LP Ceiling Loudspeaker Specifications

- Frequency Range (-10 dB): 69Hz - 25kHz
- Power Capacity: 25 W (100 W Peak) Cont. Pink Noise Power (100 hrs)
- Sensitivity (1m/1W): 85dB
- Coverage Angle: 160° conical
- Maximum SPL (1m): 99 dB continuous pink noise (105 dB peak)
- Nominal Impedance: n/a

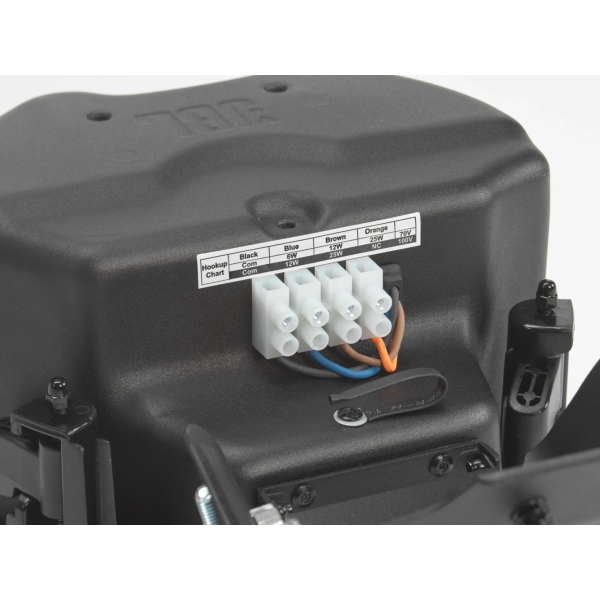

- Transformer Taps:
  - 70 V: 25 W, 12 W & 6 W
  - 100 V: 25 W, 12 W
- Drivers:
  - LF: 103 mm (4 in) with PP cone and paper cup, SBR surround
  - HF: 13 mm (0.5 in) PEI dome
- Ceiling Cutout Size: 168 mm (6.6 in)
- Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
- Environmental:
  - IP rating: IP32 per EN/IEC 60529.
  - Operating temperature: 0° C to 45 °C.
- Dimensions:
  - 114 mm (4.6 in) H x 203 mm (8.1 in) dia.
  - 105 mm (4.2 in) from bottom of ceiling tile to top of backcan
- Colour: Stock grille is white (RAL9003), paintable.
- Net Weight (each): 2.12 kg (4.67 lbs)

Further Product Information Below

JBL Control 414C/T Micro Plus Data Sheet (PDF)

JBL Control 414C/T Micro Plus Manual (PDF)

JBL Control 400 Series Brochure (PDF)

JBL Control 414C/T Micro Plus Optional Accessories

- JBL-MTC-414BG black (RAL9004) round grille
- JBL-MTC-414SG white (RAL9003) square grille
- JBL-MTC-414WG white (RAL9003) weather grille
- JBL-MTC-424NC new construction bracket
- JBL-MTC-424MR mud-ring construction bracket
- JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

JBL Control 414C/T Micro Plus 4-Inch 2-Way LP Ceiling Loudspeaker, 25W @ 70V/100V Line

Related products:

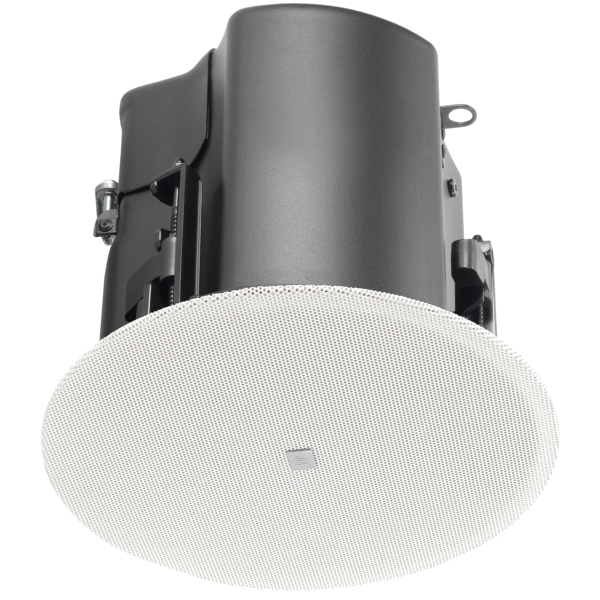

JBL Control 414C/T 4-Inch 2-Way Ceiling Loudspeaker, 45W @ 8 Ohms or 70V/100V Line

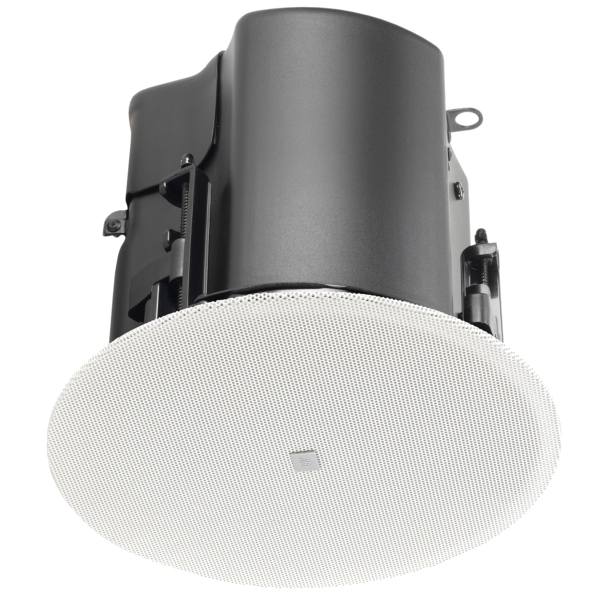

JBL Control 414C/T-VA 4-Inch EN54 2-Way Ceiling Loudspeaker, 45W @ 8 Ohms or 70V/100V Line

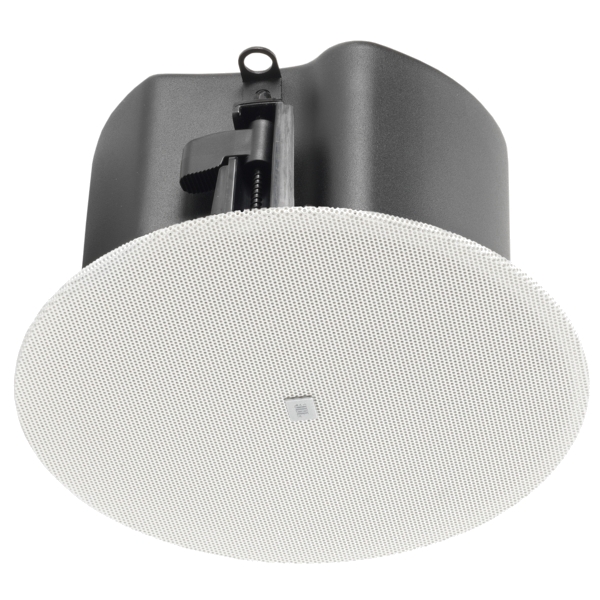

JBL Control 414C/T Micro 4-Inch 2-Way LP Ceiling Loudspeaker, 22W @ 8 Ohms or 70V/100V Line

elumen8 INSTALL LSZH 2 Core 0.75mm Speaker Cable (SP2X0.75B) - 100m Drum, Black

elumen8 INSTALL LSZH 2 Core 1.5mm Speaker Cable SP2X1.5B, 500m Drum Black

elumen8 INSTALL LSZH 2 Core 2 x 2.5mm2 Speaker Cable SP2X2.5B, 100m Drum Black

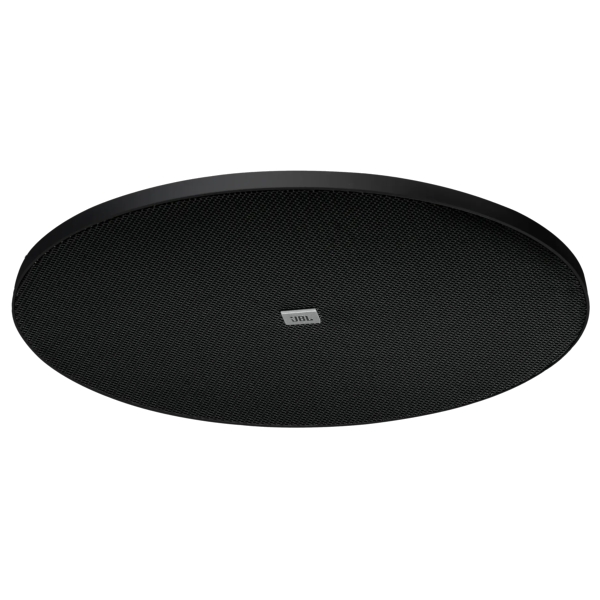

JBL MTC-424BG Round Grille for Control 424C/T, Black (Pack of 6)

JBL MTC-424SG Square Grille for Control 424C/T, Black (Pack of 6)

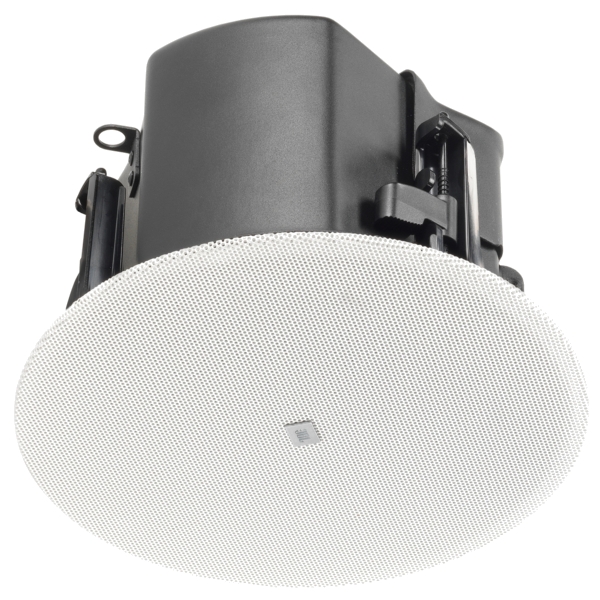

JBL Control 412C/T 3-Inch Full Range Ceiling Loudspeaker, 30W @ 8 Ohms or 70V/100V Line

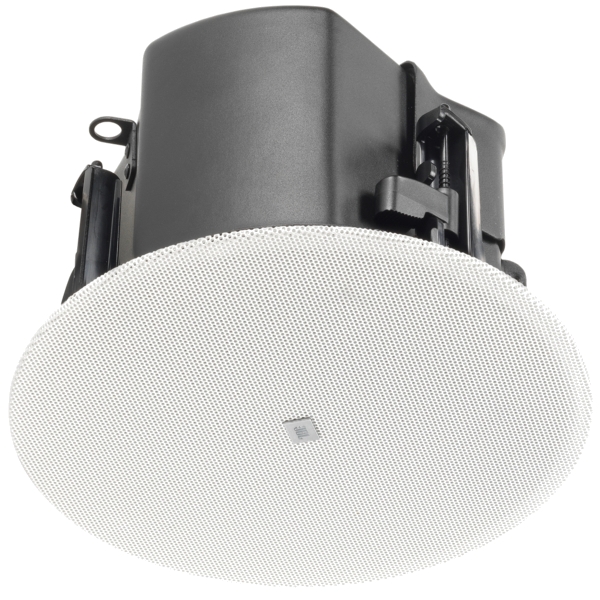

JBL Control 412C/T-VA 3-Inch EN54 Full Range Ceiling Loudspeaker, 30W @ 8 Ohms or 70V/100V Line

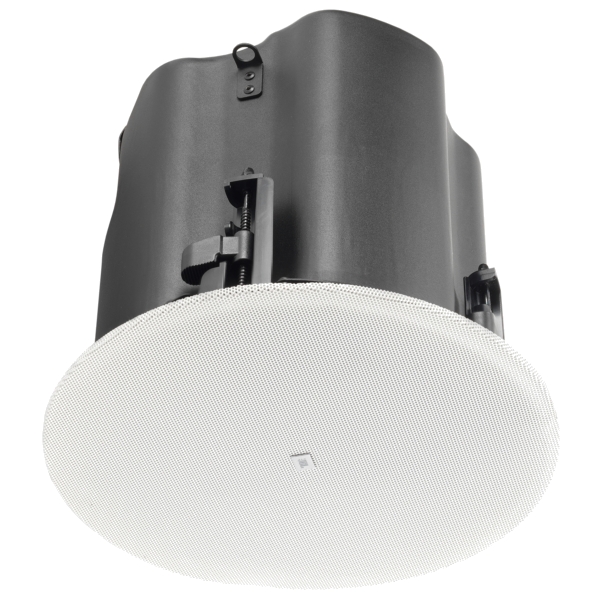

JBL Control 416C/T 6.5-Inch 2-Way Ceiling Loudspeaker, 75W @ 8 Ohms or 70V/100V Line

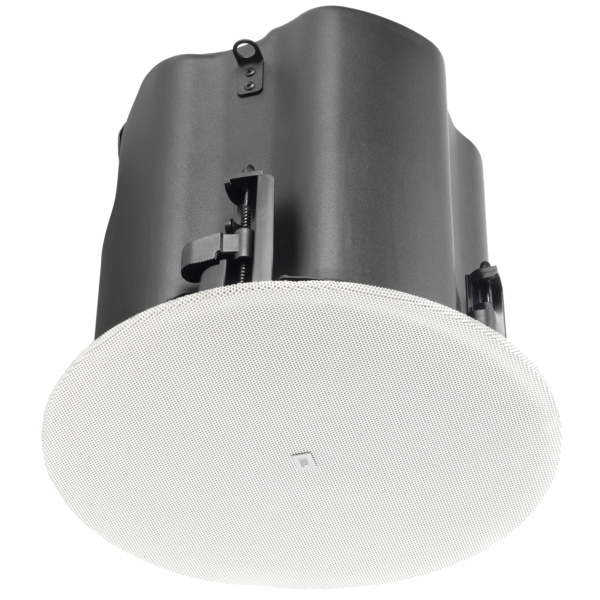

JBL Control 416C/T-VA EN54 6.5-Inch 2-Way Ceiling Loudspeaker, 75W @ 8 Ohms or 70V/100V Line

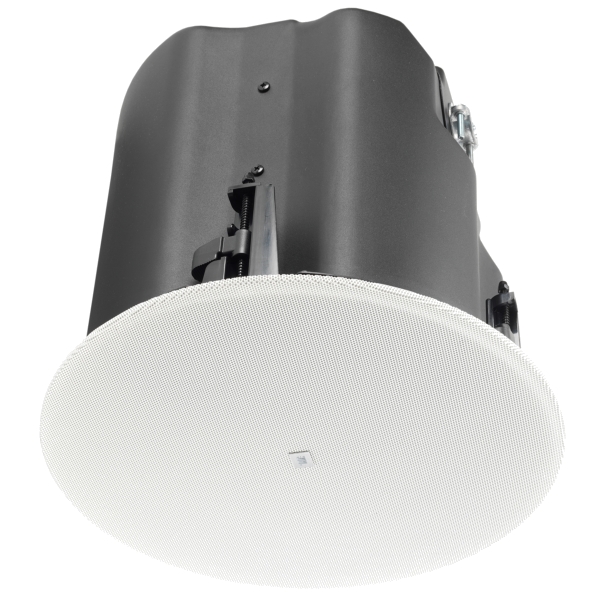

JBL Control 418C/T 8-Inch 2-Way Ceiling Loudspeaker, 135W @ 8 Ohms or 70V/100V Line

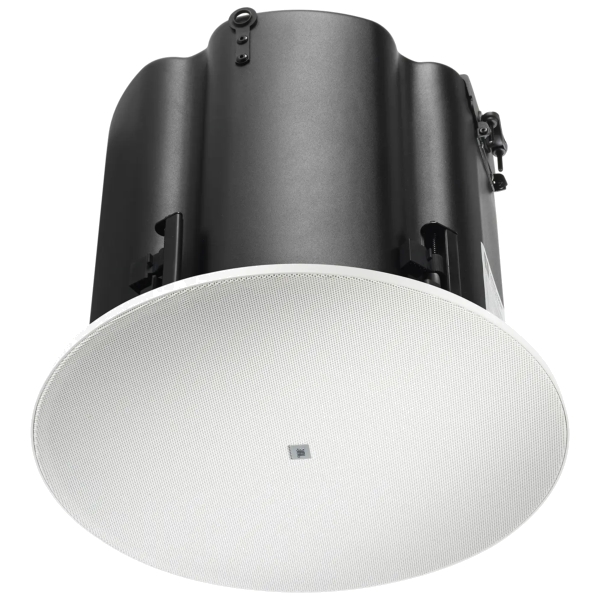

JBL Control 419CS/T 8-Inch Ceiling Subwoofer, 160W @ 8 Ohms or 70V/100V Line
