JBL Control 440CS/T 8-Inch Ceiling Subwoofer, 150W @ 8 Ohms or 70V/100V Line

For Install and Dealer Volume prices please contact us.

Need to Price Match it ? Click Here to see what we can do.

Price Per Pair £587.18 (£704.62 Including VAT at 20%)

REF: JP114715

Quantity:

JBL Control 440CS/T 8-Inch Ceiling Subwoofer, 150W @ 8 Ohms or 70V/100V Line

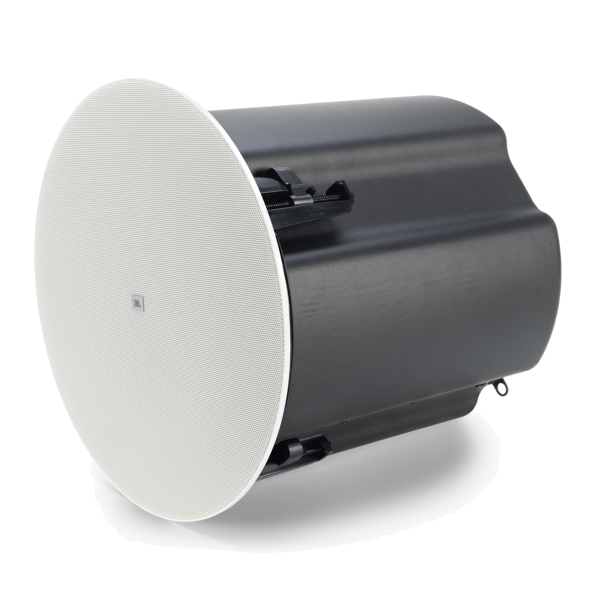

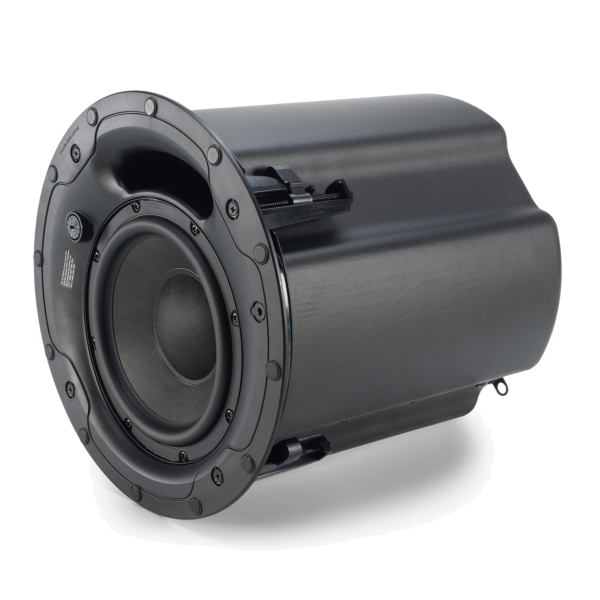

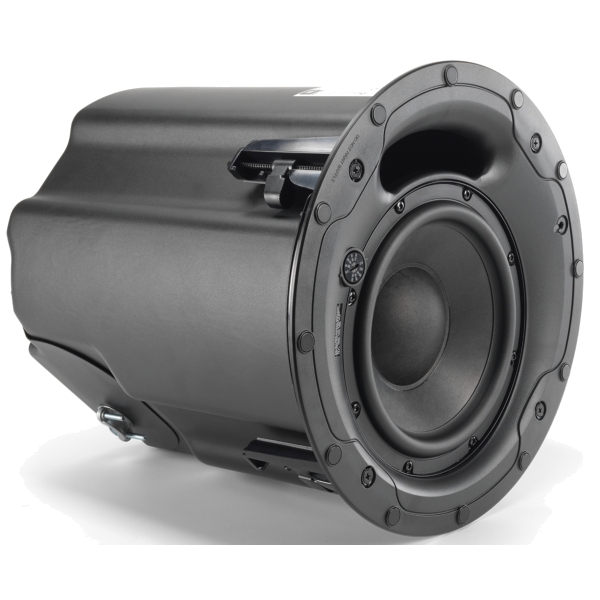

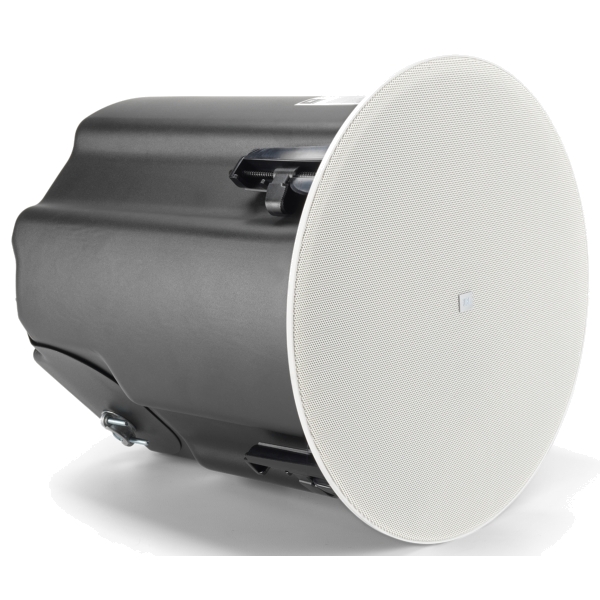

The JBL Control 440CS/T 8-Inch Ceiling Subwoofer is a high-power, low-distortion in-ceiling subwoofer, featuring an 8” woofer, passive crossover, and an extremely durable, reinforced enclosure.

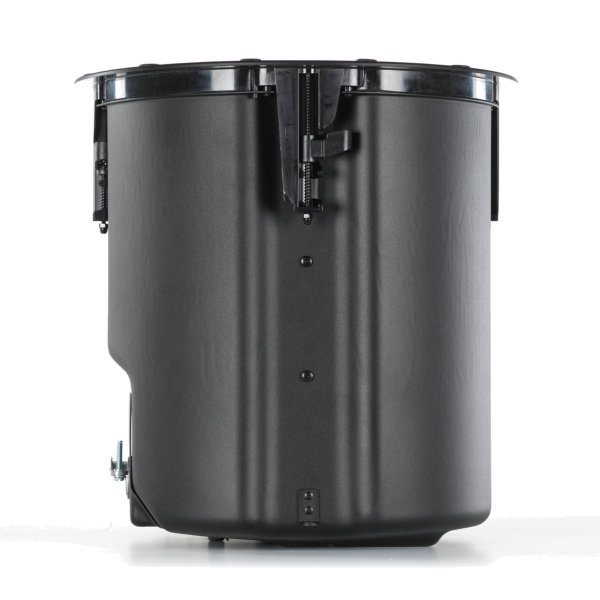

Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.

All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 440CS/T supports both 70V/100V and low impedance applications.

Efficient, Flexible Installation

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

Refined, Modern Aesthetics

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Efficient, Flexible Installation

Click Here for Printer Friendly Version

JBL Control 440CS/T 8-Inch Ceiling Subwoofer Features

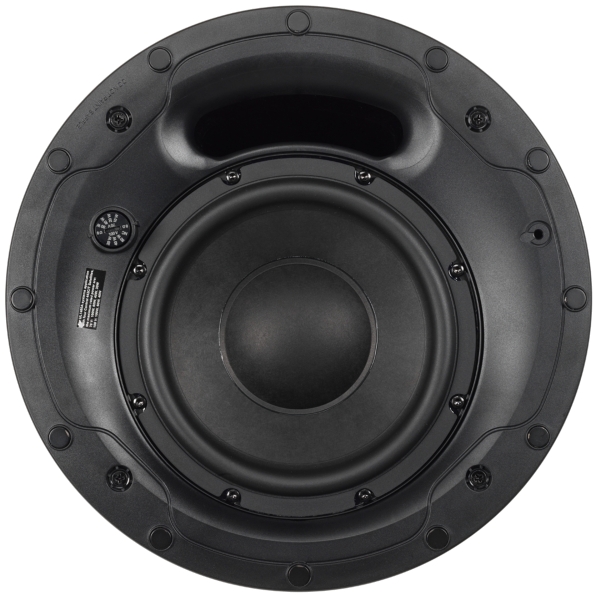

- 200 mm (8 in) woofer with SBR surround
- Integrated enclosure with large, tapered dual ports for warm, smooth bass response

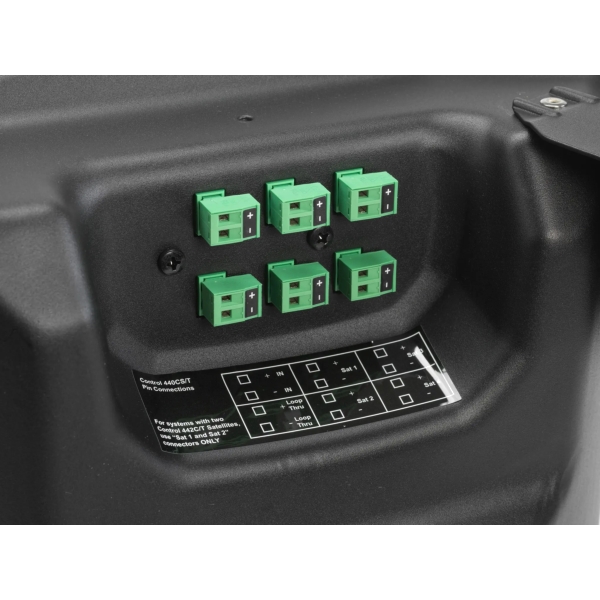

- Built-in passive crossover network enabling it to be used as part of a subwoofer-satellite system
- Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
- Full-face, easily paintable magnetic grilles

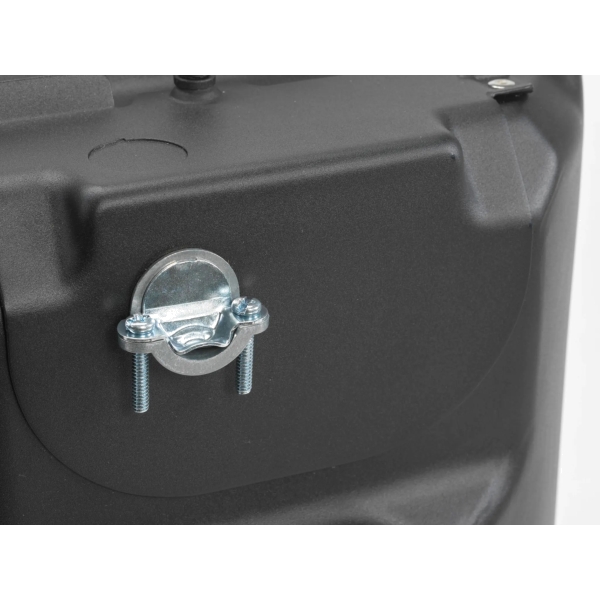

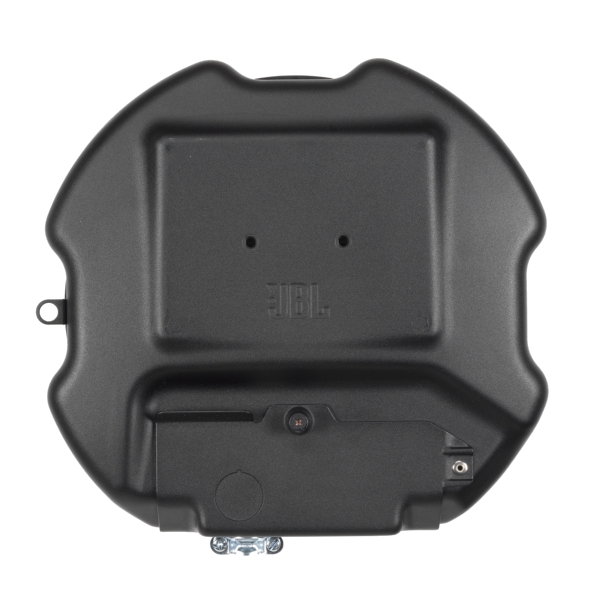

- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated

JBL Control 440CS/T 8-Inch Ceiling Subwoofer Specifications

- Frequency Range (-10 dB): 32Hz - 300Hz
- Power Capacity:
  - 150 W (600 W Peak), Cont. Pink Noise (2 hrs.)
  - 100 W (400 W Peak) Cont. Pink Noise Power (100 hrs.)
- Sensitivity (1m/1W): 95dB in ceiling near corner (π/2 loading)
- Maximum SPL (1m): 117 dB Cont. pink noise (123 dB peak, π/2 loading)
- Nominal Impedance: 8Ω
- Transformer Taps:
  - 70 V: 80 W, 40 W, 20 W & 10 W
  - 100 V: 80 W, 40 W, 20 W
- Driver: 200 mm (8 in) treated paper cone with SBR surround and high-performance magnet
- Ceiling Cutout Size: 307 mm (12.1 in)
- Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
- Environmental:
  - IP rating: IP33 per EN/IEC 60529.
  - Operating temperature: 0° C to 45 °C.
- Dimensions:
  - 351mm (13.8 in) H x 342 mm (13.5 in) dia.
  - 337mm (13.3 in) from bottom of ceiling tile to top of backcan
- Colour: Stock grille is white (RAL9003), paintable.
- Net Weight (each): 8.72 kg (19.22 lbs)

Further Product Information Below

JBL Control 440CS/T Data Sheet (PDF)

JBL Control 440CS/T Manual (PDF)

JBL Control 400 Series Brochure (PDF)

JBL Control 440CS/T Optional Accessories

- JBL-MTC-440BG black (RAL9004) round grille
- JBL-MTC-440SG white (RAL9003) square grille
- JBL-MTC-419NC new construction bracket
- JBL-MTC-419MR mud-ring construction bracket
- JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
