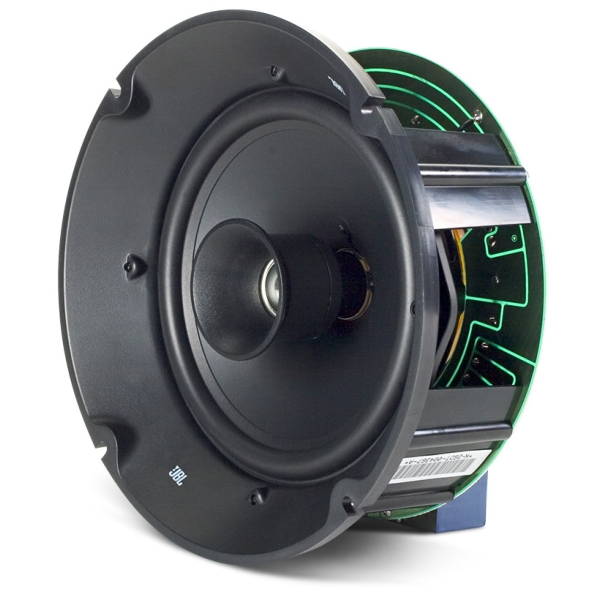

JBL Control 26-DT 6.5 Inch Ceiling Loudspeaker Transducer Assembly

JBL Control 26-DT 6.5 Inch Ceiling Loudspeaker Transducer Assembly

JBL Control 26-DT 6.5 Inch Ceiling Loudspeaker Transducer Assembly

Price Per Pair 232.97 Exc VAT or (279.56 Inc VAT at 20%)

.

Ref: JP3893

<Back

Click Here For PDF User Manual

6.5" Ceiling Loudspeaker Transducer Assembly is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8") drivers.

Features

Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
Comes complete with transducer, network and transformer.
Advanced crossover network provides natural sound and even coverage throughout listening area.
60 W transformer for 70 V or 100 V distributed speaker lines.
Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.

Specifications

Frequency Range 80 Hz - 20 kHz
Power Capacity 150 W Continuous Program Power; 75 W Continuous Pink Noise
Transformer Taps 70V: 60W, 30W, 15W & 7.5W
100V: 60W, 30W, & 15W
Nominal Coverage Angle 110 conical coverage
Directivity Index (DI) 4.6 averaged 500 Hz to 4 kHz
Rated Maximum SPL 107 dB @ 1 m (3.3 ft)
Low-Frequency 165 mm (6.5 in) Polypropylene-coated, 1" coil on aluminum former
High-Frequency 19 mm (3/4 in) Titanium coated polyester
Termination Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)
Outside Dimensions (H x Dia) 210 x 252 mm (8.3 x 9.9 in)
190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (ea) 4.2 kg (10 lb)
Shipping Weight (pair) 9.7 kg (21 lb)
