JBL Control 12C-VA 3 inch Compact Ceiling Loudspeaker for EN54-24 Application

JBL Control 12C-VA 3 inch Compact Ceiling Loudspeaker for EN54-24 Application

JBL Control 12C-VA 3 inch Compact Ceiling Loudspeaker for EN54-24 Application

Price Per Pair 166.26 Exc VAT or (199.51 Inc VAT at 20%)

.

Ref: JP3887

<Back

Click Here For PDF User Manual

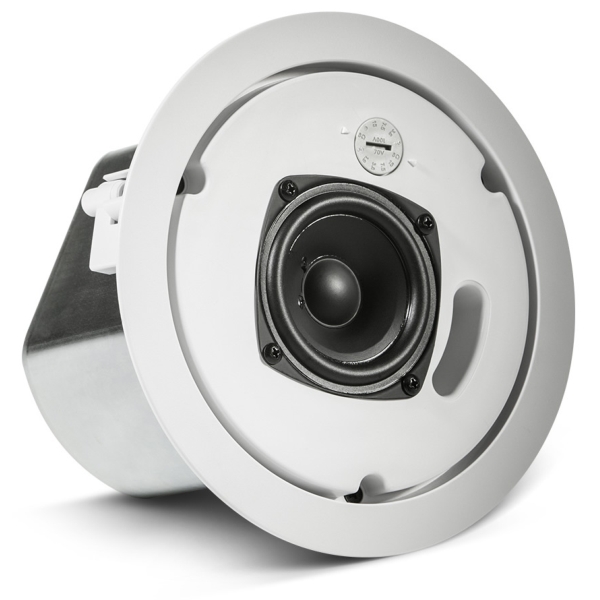

JBL Control 12C-VA 3" Compact Ceiling Loudspeaker for EN54-24 Application is a full-range, EN54-24 certified ceiling speaker consisting of a 76 mm (3 inch) full-range driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with a preattached blind-mount backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of low to medium volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on axis.

Features

76 mm (3 in) full-range driver
EN54-24 Compliant

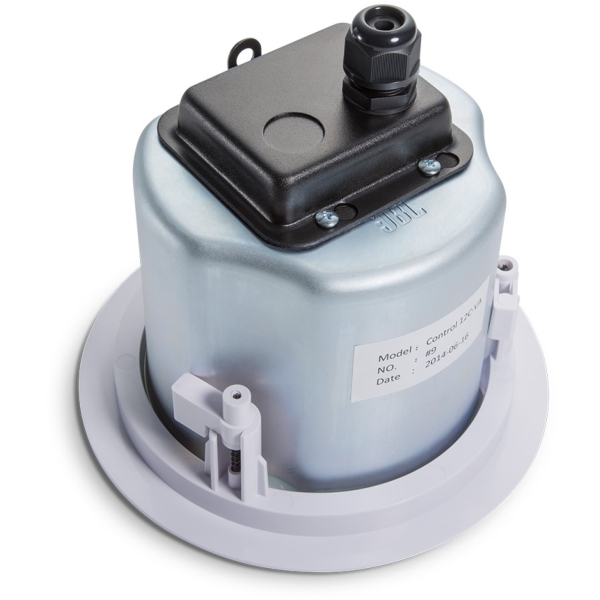

Blind-mount backcan for quick and easy install
Combined 70V/100V and low impedance direct operation
20 Watts at 8O nominal setting
15W multi-tap at 70V/100V
68 Hz 17 kHz bandwidth with wide 130 coverage

Specifications

Frequency Range (-10 dB): 68 Hz 17 kHz
Frequency Response (3 dB): 95 Hz 15 kHz
Power Capacity (at low-Z): 40 Watts Continuous Program Power, 20 Watts Continuous Pink Noise
Rated Noise Power: 15W (15W tap)
Rated Noise Voltage: 70V/100V (with 70V/100V tap settings)
Nominal Sensitivity: 84 dB: 8 ohm tap
EN54 Sensitivity (@ 4m): 72 dB (per EN54-24 spectrum and measurement conditions at 4 meters.)
Coverage Pattern: 130 conical coverage (1 kHz - 16 kHz)
Coverage Angels (by Frequency): 500 Hz:, 1000 Hz, 2000 Hz:, 4000 Hz:
Conical (Vertical & Horizontal):180, 175, 170, 160
Reference Axis: Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane
Directivity Factor (Q): 9.8
Directivity Index (DI): 7.4 dB
Rated Maximum SPL: 97 dB @ 1 m (3.3 ft) average, 103 dB peak
EN54 Max SPL (@ 4m): 84 dB (per EN54-24 spectrum and measurement 15W tap, at 4 meters)
Nominal Impedance 8 ohms (in direct/bypass 8 ohm setting):
- 1.9W@70V; 3.8W@100V Tap: 2667 ohm
- 3.8W@70V; 7.5W@100V Tap: 1333 ohm
- 7.5W@70V; 15W@100V Tap: 667 ohm
- 15W@70V; N/C@100V Tap: 333 ohm
Transformer Taps: 15W, 7.5W, 3.8W @ 70V or 100V (plus 1.9W @ 70V only)
Fuse: Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC
Driver: 76 mm (3 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
Connections: Input +, Input -, Earth (connected to backcan). Ceramic block with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire.
Gland Nut/Strain Relief: Accommodates round jacketed cables 4.0 mm (0.16 in) through 9.0 mm (0.36 in)

Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
Safety Agency: EN54-24:2008 certified Type A (Certificate No. 0359-CPR-00485); Compliant with BS5839/8; UL1480, UL2043, NFPA90 & NFPA70; Suitable for use in air handling spaces, Signaling Speaker; rated IP-21 per IEC529/60529; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/ EN60849 systems
Dimensions (H x W x D): 196 mm diameter x 174 mm from back of baffle to back of gland nut (7.7 in diameter x 6.9 in in depth)
Ceiling Cutout Size Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range: Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
Safety Seismic Attachment: One point, top surface
Net Weight: 1.6 kg (3.5 lbs, one speaker)
Shipping Weight: 6.7 kg (14.7 lbs, pair in master carton)
Included Accessories: C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, grille
