JBL Control 14C-VA Two-Way 4 inch Co-axial Ceiling Loudspeaker for EN54-24 Applications

JBL Control 14C-VA Two-Way 4 inch Co-axial Ceiling Loudspeaker for EN54-24 Applications

JBL Control 14C-VA Two-Way 4 inch Co-axial Ceiling Loudspeaker for EN54-24 Applications

Price Each 125.68 Exc VAT or (150.82 Inc VAT at 20%)

.

Ref: JP3888

<Back

Click Here For PDF User Manual

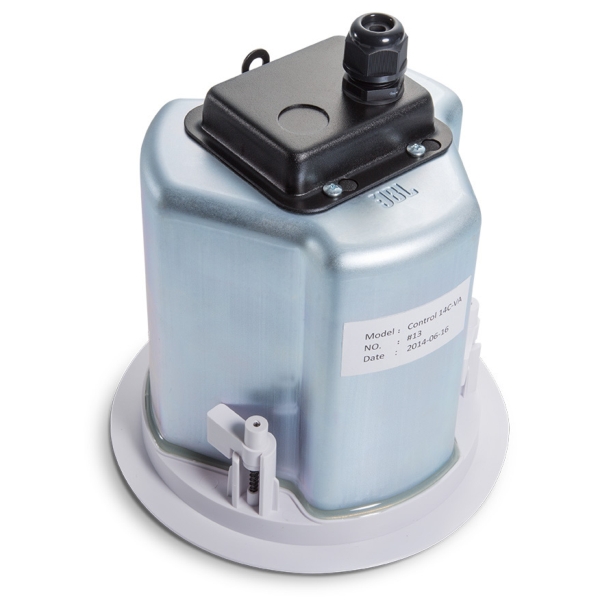

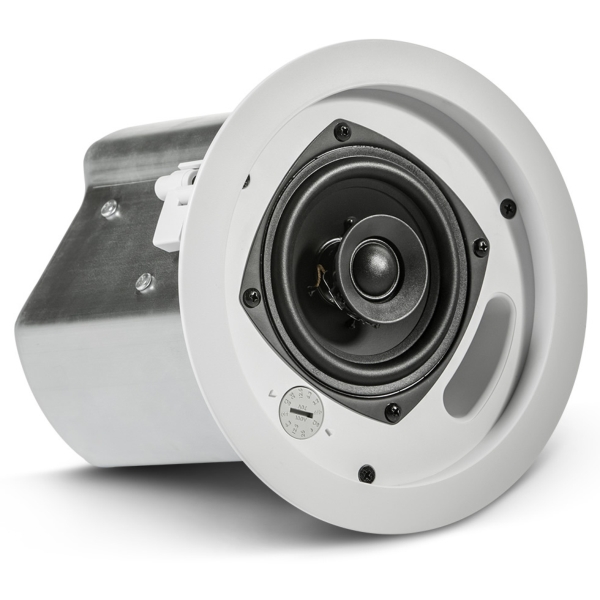

JBL Control 14C-VA Two-Way 4" Co-axial Ceiling Loudspeaker is a full-range, EN54-24 certified ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm softdome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with a pre-attached blind-mount backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/ waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on axis.

Features

Components: 100 mm (4 in) high output driver with polypropylene cone and butyl rubber surround
19 mm (0.75 in) soft-dome liquid-cooled tweeter
EN54-24 Compliant
Blind-mount backcan for quick and easy install
Combined 70V/100V and low impedance direct operation
30 Watts at 8 nominal setting
25W multi-tap at 70V/100V
74 Hz 20 kHz

Specifications

System
Frequency Range (-10 dB): 74 Hz 20 kHz
Frequency Response (3 dB): 100 Hz 15 kHz
Power Capacity (at low-Z): 60 Watts Continuous Program Power
30 Watts Continuous Pink Noise
Rated Noise Power: 25W (25W tap)
Rated Noise Voltage: 70V/100V (with 70V/100V tap settings)
Nominal Sensitivity: 87 dB: 8 ohm tap
EN54 Sensitivity (@ 4m): 75 dB (per EN54-24 spectrum and measurement conditions at 4 meters.)
Coverage Pattern: 120 conical coverage (1 kHz - 16 kHz)
Coverage Angles (by Frequency): 500 Hz 1000 Hz 2000 Hz 4000 Hz
Conical (Vertical & Horizontal): 175 170 150 89
Reference Axis: Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane
Directivity Factor (Q): 7.6
Directivity Index (DI): 8.1 dB
Rated Maximum SPL: 102 dB @ 1 m (3.3 ft) average, 108 dB peak
EN54 Max SPL (@ 4m)4 5: 87 dB (per EN54-24 spectrum and measurement 25W tap, at 4 meters)
Nominal Impedance: 8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz)
3.2W@70V; 6.3W@100V Tap: 1600
6.3W@70V; 12.5W@100V Tap: 800
12.5W@70V; 25W@100V Tap: 400
25W@70V; N/C@100V Tap: 200
Transformer Taps: 25W, 12.5W, 6.3W @ 70V or 100V (plus 3.2W @ 70V only)
Crossover Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct
(2nd order) high-pass to HF driver#

Electrical
Fuse: Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC

Transducers
LF Driver: 100 mm (4 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
HF Driver: 19 mm (3/4 in), highly-damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide

Enclosure

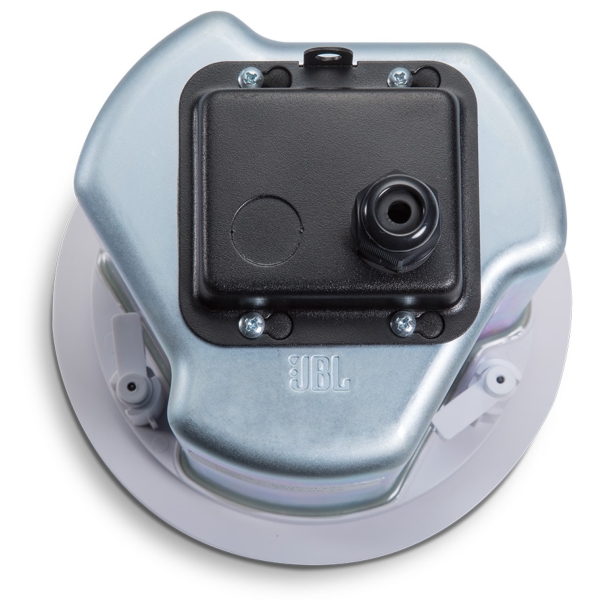

Connections: Input +, Input -, Earth (connected to backcan). Ceramic block with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire.
Gland Nut/Strain Relief: Accommodates round jacketed cables 4.0 mm (0.16 in) through 9.0 mm (0.36 in)
Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
Safety Agency: EN54-24:2008 certified Type A (Certificate No. 0359-CPR-00485);
Compliant with BS5839/8; UL1480, UL2043, NFPA90 & NFPA70;
Suitable for use in air handling spaces, Signaling Speaker; rated IP-21 per IEC529/60529; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/ EN60849 systems

Dimensions: 196 mm diameter x 217 mm from back of baffle to back of gland nut (7.7 in diameter x 8.6 in in depth)
Ceiling Cutout Size: Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range: Up to 35 mm (1.3 in) with stock dog-ears. MTC-TCD thick ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
Safety Seismic Attachment: One point, top surface
Net Weight: 2.2 kg (4.8 lbs, one speaker)
Shipping Weight: 8.2 kg (17.9 lbs, pair in master carton)
Included Accessories: C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, grille
