JBL Control 24CT Background/ Foreground Ceiling Loudspeakers - Black

JBL Control 24CT Background/ Foreground Ceiling Loudspeakers - Black

JBL Control 24CT Background/ Foreground Ceiling Loudspeakers - Black

Price Per Pair 266.33 Exc VAT or (319.60 Inc VAT at 20%)

.

Ref: JP3314

<Back

Click Here For PDF User Manual

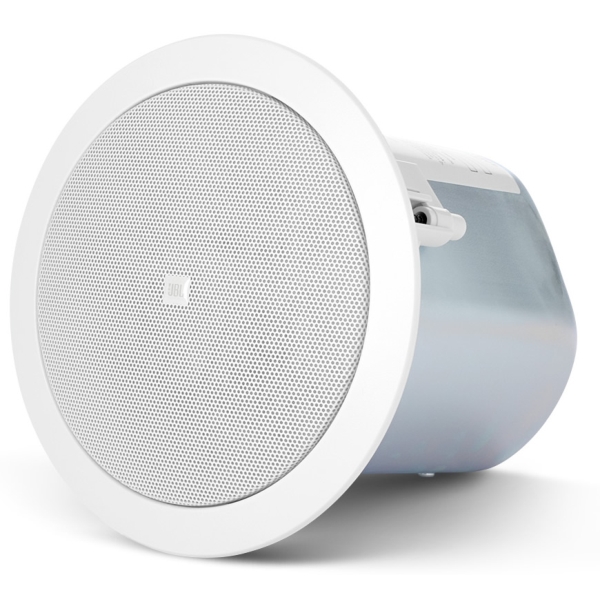

JBL Control 24CT Background/ Foreground Ceiling Loudspeakers,

The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

Features

  • High power, wide frequency response and low distortion for high sound level capability.
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
  • Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
  • Wide coverage allows fewer speakers, reducing the cost of

Specifications

Frequency Range 80 Hz - 20 kHz
Power Capacity 80 W Continuous Program Power; 40 W Continuous Pink Noise
Nominal Coverage Angle 130 conical coverage
Directivity Factor (Q) 2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI) 3.8 dB averaged 500 Hz to 4 kHz
Rated Maximum SPL 102 dB @ 1 m (3.3 ft)
Nominal Impedance 16 ohms (Min Z 16.1 ohms @ 320 Hz)
Transformer Taps 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps100 V: 30 W, 15 W, & 7.5 W taps
