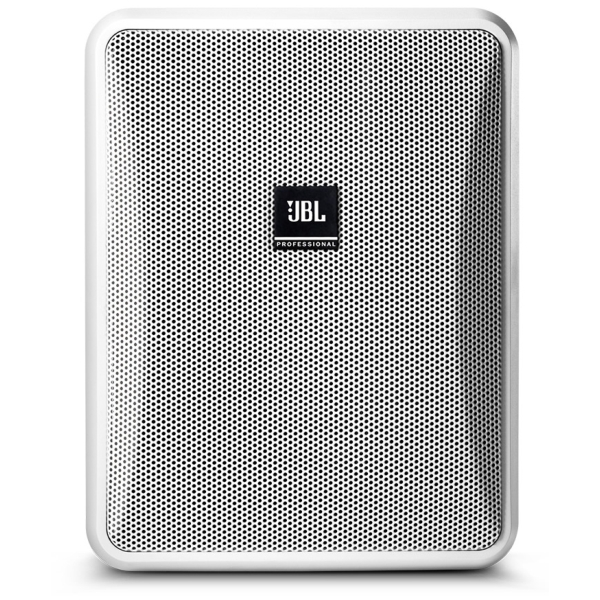

JBL Control 25AV-LS White Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications

JBL Control 25AV-LS White Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications

JBL Control 25AV-LS White Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications

Price Per Pair 446.45 Exc VAT or (535.74 Inc VAT at 20%)

.

Ref: JP3834

<Back

JBL Control 25AV-LS Compact Indoor Outdoor Background Foreground Loudspeaker (white) for Life Safety Applications is built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems. The Control 25AV-LS utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker. Premium performance capability and even coverage ensures excellent sound quality throughout the listening area.

Features

UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems (file S7232); EN54-24 certified (Certificate No. 0359-CPR-00245)
Extremely Smooth Frequency Response
Aluminum Grille with Polyester Powder Coating for Enhanced Durability
60 Watt Transformer for 70V or 100V Lines, with 8 ohm Bypass
SonicGuard Overload Protection
130 mm (5) Polypropylene Coated Woofer, 10 mm () Titanium Coated Horn-Loaded Tweeter
Includes InvisiBall Mounting Hardware and Sealed Input Panel Cover
Captive Screw-Down Input Terminals
110 x 85 High-Frequency Horn

Specifications

Freq. Range (-10 dB) 90 Hz - 20 kHz
Power Capacity: 200 Watts Continuous Program Power (at 8 ohm bypass mode)
Power Capacity: 100 Watts Continuous Pink Noise (at 8 ohm bypass mode)
Power Capacity:  60 Watts (at 60W tap setting)
Transformer Taps 60W, 30W, 15W (& 7.5W @ 70V)
Nominal Sensitivity:  87dB, 1W at 1m (1kHz10kHz, ave., at 8 ohm bypass mode);
Nominal Sensitivity:  71 dB, 1W at 4m per EN54-24 (100 Hz 10 kHz, ave., 60W tap)
Nominal Coverage Angle 110 x 85 (1kHz to 16kHz)
Directivity Factor (Q) 4.8 (500 Hz to 4kHz)
Directivity Index (DI) 6.5dB (500 Hz to 4kHz)
Rated Maximum SPL 107 dB @ 1m (3.3 ft) average, 113 dB peak, at 8 ohms bypass mode, 89 dB at 4 m (13.2 ft.) average, at 60W tap setting, measured
LF Driver 130mm (5.25 in) with polypropylene coated paper cone with
WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
HF Driver 20mm (.75 in) titanium coated PEI
Termination Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
Cabinet Material ABS, (materials rated UL94-5VA)
Grille Aluminum with polyester powder coating
Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating
Environmental Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
Safety Agency UL1480-UUMW Listed (S7232), EN54-24:2008 certified (Certificate No. 0359-CPR-00245), NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849
Dimensions (H x W x D) 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
Net Weight 3.8 kg (8.4 lbs) ea
Shipping Weight 8.6 kg (19 lbs) pair
Included Accessories 1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench
Optional Accessories MTC-25V for vertical columnar mounting of up to 3 speakers MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360 horizontal coverage.
MTC-28/25CM to install speaker down from the ceiling.
