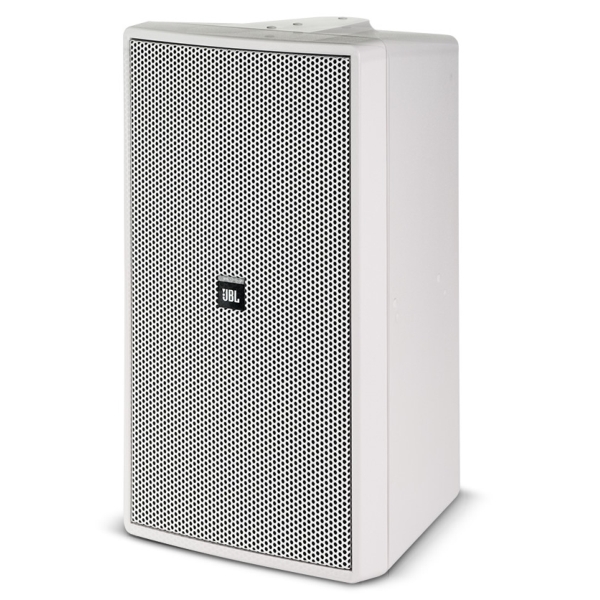

JBL CONTROL 29AV High Output Indoor/Outdoor Monitor Speaker For Mid-Sized Applications (white).
The Control 29AV loudspeaker from JBL Professional fills a market need for a full range speaker, larger than other JBL Control Contractor speakers, yet more compact than the JBL Marquis Series speakers. The two-way Control 29AV speaker has an 8 woofer with kevlar cone for weather resistance and a 1-inch exit compression driver mounted onto a rotatable high-frequency horn, which allows use of the speaker in either vertical or horizontal orientation.
Extended bandwidth, extremely smooth frequency response. 110° x 85° HF coverage, rotatable horn.
110 Watt transformer for 70V or 100V lines, with 8 ohm thru
SonicGuard overload protection.
200 mm (8) Kevlar cone woofer, 25 mm (1) titanium diaphragm compression driver.
Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket
The optional MTC-29UB U-bracket provides an alternative compact installation method and is particularly useful for low profile underbalcony applications. In addition, ten suspension points are provided for suspending the speaker or using a speaker stand adapter.
The Control 29AV has been designed for indoor or outdoor use. The woofer's cone is made of kevlar, the surround is pure butyl rubber, and the driver is rear loaded onto the baffle to minimize direct basket exposure to the elements. The compression driver's diaphragm is pure titanium. The grille is coated in polyethylene and comes with foam backing to minimize incursion of water. Nickel/zinc outdoor rated input terminals ensure a secure input connection, and an MTC-PC2 sealed-entrance cover is included to further protect terminals.
Frequency Range (-10 dB)1: 40 Hz to 19 kHz
Frequency Response (± 3 dB)1: 45 Hz to 18 kHz
300 Watts Continuous Program Power
150 Watts Continuous Pink Noise
Maximum SPL @ 1m 3: Short-Term: 120 dB; Long-Term: 114 dB
Nominal Sensitivity 4: 91 dB, 1W @ 1 m (3.3 ft)
Nominal Coverage Angle 5: 110° H x 85° V, rotatable
Directivity Factor (Q): 7.2, averaged 500 Hz to 16 kHz
Directivity Index (DI): 8.6 dB, averaged 500 Hz to 16 kHz
Nominal Impedance: 8 ohms
Minimum Impedance: 6.3 ohms @ 230 Hz
Crossover Type: 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
Transformer Taps: 70V: 110W, 55W, 28W & 14W: 100V: 110W, 55W, & 28W
Thru Position: 8 ohm nominal Recommended High-Pass:
Transducers Low Frequency: 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former
High Frequency: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
Physical Enclosure Material: High impact polystyrene
Grille: Thermoset composite coated steel
Overload Protection: Full-Range power limiting to protect network and transducers. Servicable internal fuse to protect during exceptional overload conditions.
Environmental: IEC 529 IP-X4 splashproof rating. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
Termination: Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2).
Safety Agency Rating: Transformer is listed per UL1876.
Colors: Black or white (-WH)
Dimensions (H x W x D): 518 x 305 x 280 mm (20.3 x 12.0 x 11.0 in)
Net Weight (ea): 12.2 kg (26.8 lbs)
Shipping Weight (ea): 14.0 kg (30.8 lbs)
Included Accessories: 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench.
