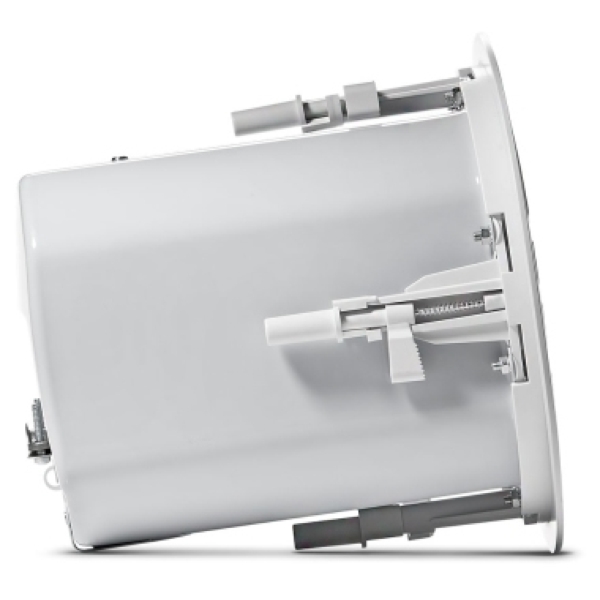

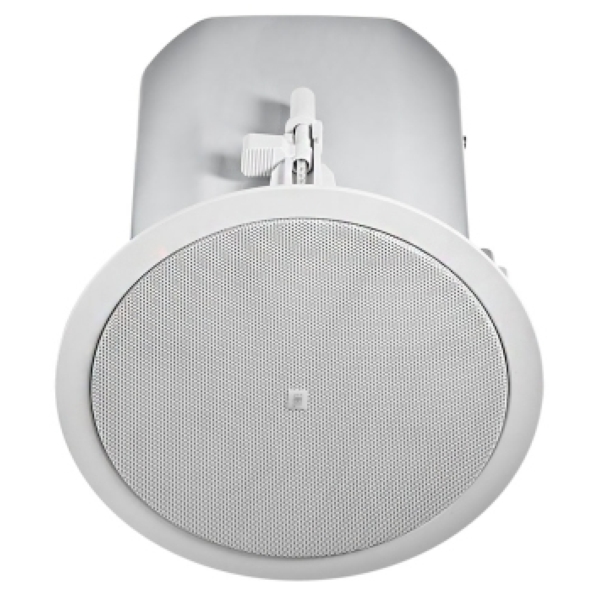

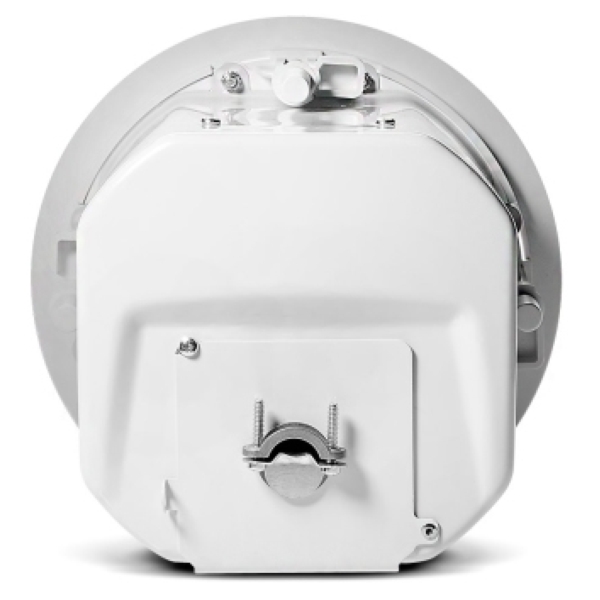

JBL Control 45C/T Two-Way 5.25-Inch Coaxial Ceiling Loudspeaker

JBL Control 45C/T Two-Way 5.25-Inch Coaxial Ceiling Loudspeaker

JBL Control 45C/T Two-Way 5.25-Inch Coaxial Ceiling Loudspeaker

Price Per Pair 426.44 Exc VAT or (511.73 Inc VAT at 20%)

.

Ref: JP3892

<Back

Click Here For PDF User Manual

Two-Way 5.25" Coaxial Ceiling Loudspeaker is a premium in-ceiling professional loudspeaker designed for applications that can benefit from extremely wide bandwidth and very consistent coverage from a ceiling speaker with a small footprint.

Features

Extremely consistent 120 broadband pattern control featuring JBLs exclusive conical Radiation Boundary Integrator (RBI) technology.
Very consistent, full-range coverage of listening area while providing a small ceiling footprint.
Wide, consistent coverage requires fewer speakers, reducing the cost of the installed system without sacrificing performance.
Coaxial design featuring:
130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber surround.
20 mm (.75 in) soft-dome tweeter on 210 mm (8.25 in) diameter wave guide.
Bass extension down to 55 Hz.
8 ohm and 70V/100V operation.
Integrated backcan for easy blind-mount install. Packaged with grille and tile rails for easy installation.

Specifications

Frequency Range (-10 dB) 55 Hz 20 kHz
Frequency Response (+/-3 dB) 80 Hz 17 kHz
Power Capacity 150 Watts Continuous Program Power
75 Watts Continuous Pink Noise
Nominal Sensitivity (2.83V/1m) 88 dB
Nominal Coverage Angle 120 conical coverage
Directivity Factor (Q) 5.6
Directivity Index (DI) 7.3 dB
Rated Maximum SPL 107 dB @ 1 m (3.3 ft) average, 113 dB peak
Rated Impedance 8 ohms (in bypass mode)
Transformer Taps 60W, 30W, 15W, (& 7.5W @ 70V)
Transformer Insertion Loss 0.76 dB @ 60W, 0.70 dB @ 30W, 0.61 dB @ 15W, 0.58 dB @ 7.5W
LF Driver 130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber urround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil former.
HF Driver 20 mm (0.75 in) soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former.
Input Connectors Two removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm).
Key: 1) + in, 2) - in, A)+ loop thru, B) - loop thru
Knockouts Two (top, and side)
Safety Agency Suitable for use in air handling spaces per UL1480 Speakers for Fire Alarm, Emergency and Commercial and Professional Use, complies with UL-2043 Fire Tests for Heat and Visible Smoke Release for Discrete Products, CUL, NFPA-70, NFPA- 90A Installation of Air Conditioning and Ventilation Systems. Inaccordance with the requirements of IEC60849/EN60849.
Dimensions 250 mm (9.9 in) diameter, 239 mm (9.4 in) mounting depth
Cutout Size 220 mm (8.75 in)
Ceiling Thickness Range Accommodates tiles / drywall up to 70 mm (2.75 in) thick
Net Weight 3.9 kg (8.6 lb)
Shipping Weight 8.6 kg (19.0 lb), pair pack
