JBL Control 64P/T Compact Full-Range Pendant Loudspeaker - White

JBL Control 64P/T Compact Full-Range Pendant Loudspeaker - White

JBL Control 64P/T Compact Full-Range Pendant Loudspeaker - White

Price Per Pair 319.70 Exc VAT or (383.64 Inc VAT at 20%)

.

Ref: JP3824

<Back

Click Here For PDF User Manual

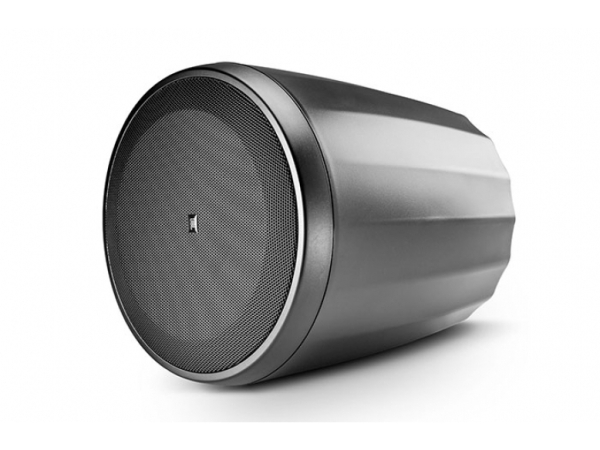

The JBL Control 64P/T (White) is a compact full-range, pendant-type loudspeaker that provides superb sound reproduction for rooms with open architecture ceilings and other locations where a pendant form factor is desired. The 120 coverage pattern (average mid-range coverage) distributes the sound broadly for the listening space. Stylish design and easy installation makes the Control 64P/T ideal for a wide variety of applications including retail, restaurants, hotels, casinos, fitness centers, convention centers, exhibit spaces, conference rooms, atriums, museums, transit centers and other open-ceiling applications.

Features

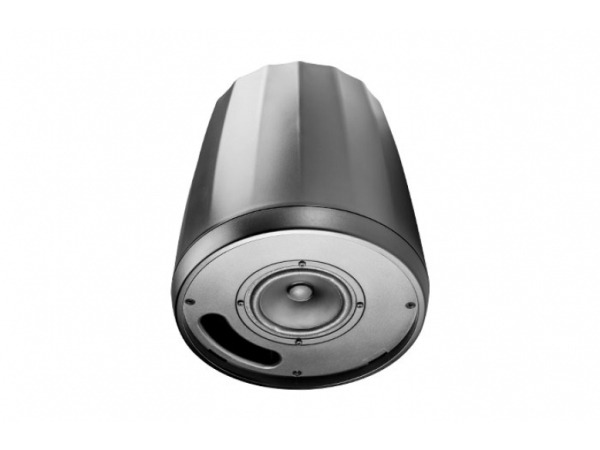

100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil.
Hanging hardware with 4.5 m (15 foot) galvanised steel cable and easy to adjust clamp.
Stylish design, available in black or white (-WH).
UL listed (speaker and hanging cable system).
8 Ohm and 70V/100V operation

Specifications

Frequency Response (-10 dB): 65 Hz - 15 kHz
Frequency Response (+/-3 dB): 85Hz - 14 kHz
Power Rating: 100 W Continuous Program (2 hrs)
Power Rating: 50 W (200W peak), Continuous Pink Noise (2 hrs)
Power Rating: 40 W (160W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage: 18.2 V RMS (2 hrs), 36.4 V peak
Nominal Sensitivity: 88 dB Nominal
Coverage Angle: 120 (averaged 1 kHz to 4 kHz)
Directivity (Q): 6.2
Directivity Index (DI): 7.3dB (averaged 1kHz 16kHz)
Rated Maximum SPL @ 1m: 105 dB continuous pink noise, 111 dB peak
Rated Impedance: 8 Ohm
Transformer Taps  70V: 30W, 15W, 7.5W & 3.7W
Transformer Taps 100V: 30W, 15W, 7.5W
Transformer Insertion Loss:  0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W
Driver:  100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil
Enclosure Material:  High impact polystyrene
Grille:  Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental:  Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 splash-proof rating.
Termination: Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanised-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Ratings: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (L x W x H): 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
Net Weight (ea): 2.35 kg (5.2 lbs)
Shipping Weight (pair): 6.07 kg (13.4 lbs)
Included Accessories: Two suspension cable systems (see Suspension, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories: MTC-PC60 top panel / terminal cover
Colours: Available in black or white (-WH). Paintable
