JBL Control SB2210 Dual 10” Compact Subwoofer, Black provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market. The internal angled baffle allows for a large port opening and compact front dimensions without compromising driver size. The Control SB2210 produces warm, punchy low-end sound.
2 x 250 mm (10 in.) Woven Fiberglass Cone LF Drivers
500 Watts Power handling
Frequency Response Down to 38 Hz
13 x M6 Insert Points Including Inserts for Optional U-Bracket
Compact, Low Profile Design
Frequency Range (-10 dB) 38 Hz - 500 Hz
Frequency Response (-3 dB) 48 Hz - 95 Hz
Power Rating: 500W (2000W peak) Continuous Pink Noise (2 hrs)
Power Rating: 1000W Continuous Program(2 hrs)
Power Rating: 400W (1600W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 60.0VRMS (2 hrs), 120V peak
Sensitivity 95 dB, 1W @ 1m in half-space (2p loading, average 50 – 90 Hz)
Max SPL 122 dB in half-space (2p loading)
Nominal Impedance 8O
Minimum Impedance 7.2O at 160 Hz
Recommended Filter 45 Hz, 24 dB/oct high-pass filter
Low Frequency Two 250 mm (10 inch) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring.
Enclosure Material High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance.
Grille Thermoset composite coated steel, zinc-plated, 3-layer foam backing.
Environmental IP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray.

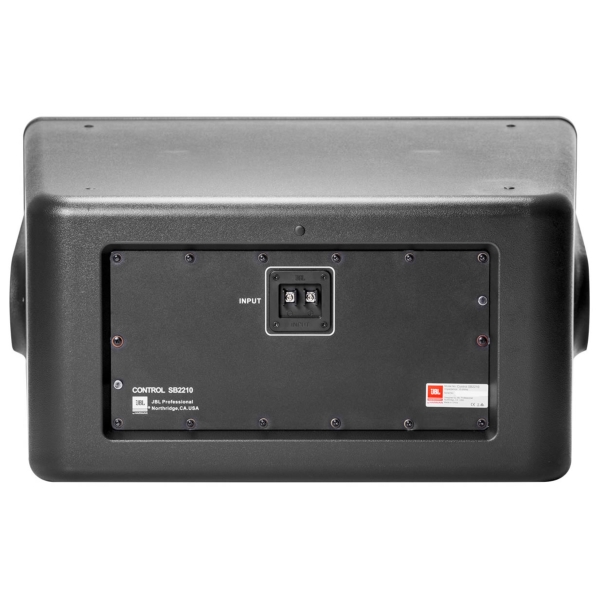

Terminals Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection.
Agency Rating ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876.
Colors Black or white (-WH)
Dimensions (H x W x D) 355 x 590 x 570 mm (14 x 23.3 x 22.5 in.)
Net Weight 23.31 kg (51.4 lb)
Shipping Weight 25.85 kg (57.0 lb)
Included Accessories 1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washers.
