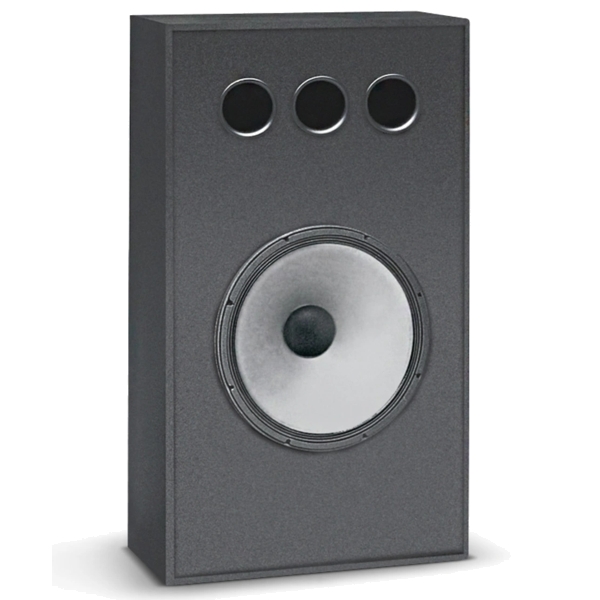

JBL 3635 18-Inch Cinema Subwoofer

Price Each £895,455.60 (£1,074,546.72 Including VAT at 20%)

REF: JP114943

Quantity:

JBL 3635 18-Inch Cinema Subwoofer

The JBL 3635 18-Inch Cinema Subwoofer provides natural low-frequency sound quality for music and dialog in small cinema applications. Enclosure design is shallow in depth (14.5 inches), to increase placement flexibility and minimize behind-screen space requirements. The single 2042H 460 mm (18 inch) LF driver provides exceptional low frequency augmentation for small cinemas desiring to use the subwoofer channel, but whose budgets could previously not support it.

Click Here for Printer Friendly Version

JBL 3635 18-Inch Cinema Subwoofer Features

- Natural low-frequency sound quality for music and dialog in small cinema applications
- 28 Hz to 200 Hz (–10 dB) frequency range
- 100 dB free-field (4pi) sensitivity
- 225-watt (41 Vrms) power handling
- 460 mm (18 in) low-frequency driver
- Shallow profile for minimum behind-screen depth requirements

JBL 3635 18-Inch Cinema Subwoofer Specifications

- Frequency Range (–10 dB): 28 Hz – 500 Hz
- Frequency Response (± 3 dB): 38 Hz – 100 Hz
- Power Handling (AES 2-Hour Rating): 225 W (41 Vrms), pink/IEC
- Free-Field (4 π) Sensitivity: 100 dB, 1 W @ 1m (3.3 ft), ref 2.83 V
- Maximum Continuous Output: 124 dB SPL (1 W @ 1m)
- Maximum Peak Output: 130 dB SPL (1 W @ 1m)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 5.6 Ω
- Recommended Crossover Frequency: 100 Hz
- System Polarity: Positive voltage to red terminal produces forward cone motion
- Input Connectors: Barrier strip screw terminals
- Net System Weight: 51 kg (113 lb)
- Shipping Weight: 54 kg
- Dimensions (H x W x D): 1168 mm x 651 mm x 368 mm

Further Product Information Below

JBL HPD3635 Data Sheet (PDF)
