JBL SRX922 AF Array Frame for the JBL SRX922

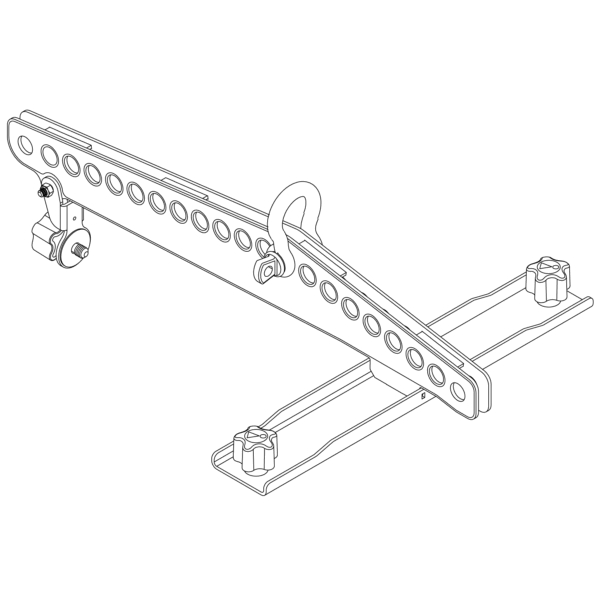

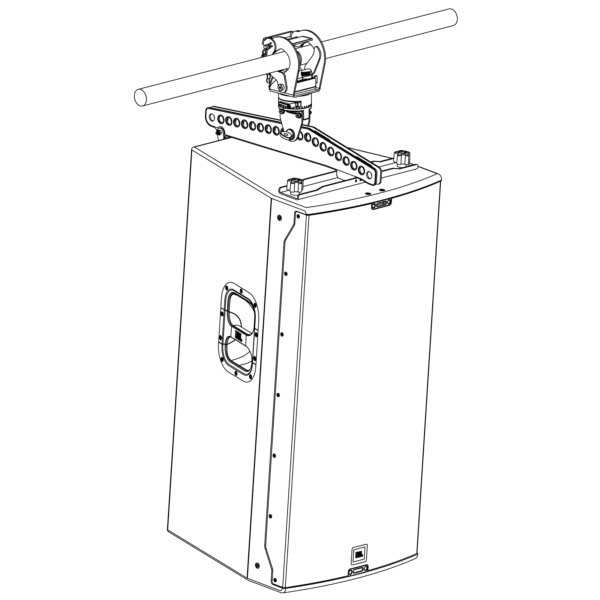

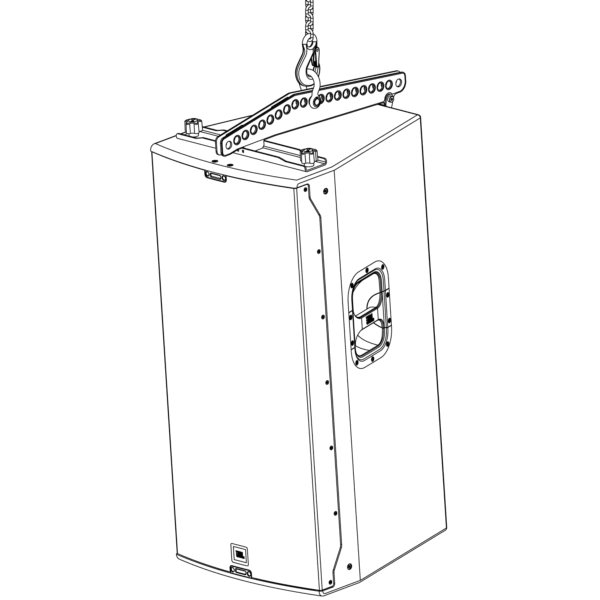

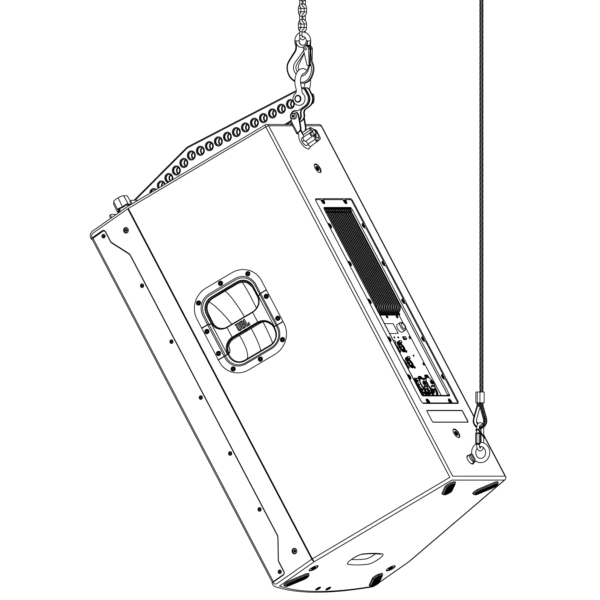

The JBL SRX922 AF Array Frame for the JBL SRX922 is a lightweight, compact array frame designed for suspending SRX922 cabinets. It supports both single-point and dual-point suspension configurations and connects to the SRX922 cabinet using the top and rear-top M10 QuickLink™ attachment points. Multiple shackle mounting positions are provided on the top of the array frame for single-point suspension. The holes are sized for 12 mm (½ in) shackles and allow for a wide range of tilt angles without the need for a secondary attachment point. In applications requiring extreme down angles, a secondary suspension point can be attached to the bottom rear M10 QuickLink™ attachment point for dual-point (front-to-back) configurations using the EBK4 M10-20 eyebolt kit. The array frame is also compatible with the JBL Professional RC500 Rotating Clamp, allowing secure attachment to standard truss or pipe structures.
