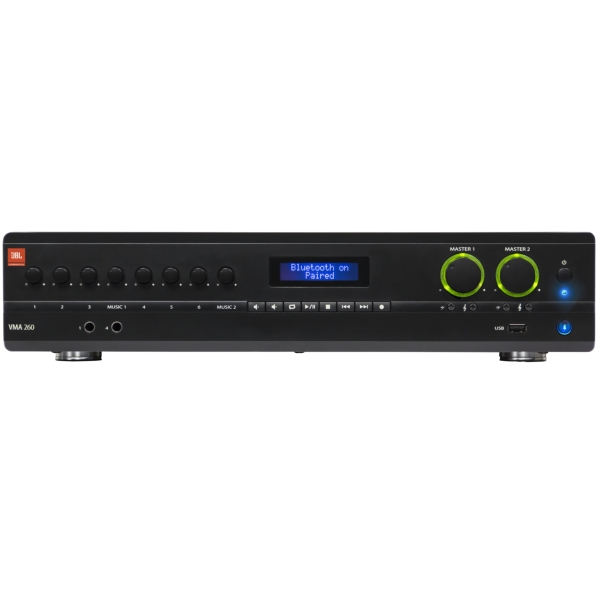

JBL VMA260 - Mixer/amplifier, 8 Inputs, 2 Outputs

JBL VMA260 - Mixer/amplifier, 8 Inputs, 2 Outputs

JBL VMA260 - Mixer/amplifier, 8 Inputs, 2 Outputs

Price Each 426.44 Exc VAT or (511.73 Inc VAT at 20%)

.

Ref: JP100242

<Back

Click Here For PDF User Manual

JBL VMA260 - 8 Inputs With 2 60W Outputs. Independent Bass And Treble Controls For Each Output Channel. 100V And 70V Output, Or 4Ohm/8Ohm. Paging Chime, And Priority Muting. Works With JBL CSR-V Wall Controllers. Cost-effective Mixer/amplifier.

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ohm, 8Ohm) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, particularly price-sensitive emerging markets.

FEATURES

8 inputs with 2 outputs of 60-watts of power
Independent bass and treble controls for each output channel
100V and 70V output, or 4Ohm/8Ohm
Paging Chime, and Priority muting
Works with JBL CSR-V wall controllers
Balanced mic/line inputs; RCA (.775V) inputs
Rack mounting hardware included

SPECIFICATIONS

Max Output Power per Channel into 4 Ohm or 8 Ohm; 1kHz, = 0.5% THD - VMA2120: 120W
Insertion Loss (70V & 100V outputs) 1dB maximum
Number of Inputs 8
Number of Outputs 2
Tone Controls (Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
Input Sensitivity (to obtain full rated power into 8 Ohm load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
Frequency Response (measured at 2.83VRMS into rated load impedance at any output) 4/8 Ohm Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
Total Harmonic Distortion (THD) (measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz
Signal to Noise Ratio (Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
Input Impedance (nominal) Mic: 400 Ohm Line: 20 kOhm (balanced) RCA: 50 kOhm
Phantom Power 27VDC
Crosstalk (reference rated power, volume at mid position, 1kHz) -70 dB
Nominal AC Line Voltages 100V, 120V, 220V, 220-240V, 50/60 Hz
Minimum Load Impedance (Low Impedance Output, 70V Output, 100V Output) VMA2260: 4 Ohm, 80 Ohm, 160 Ohm
Operating Temperature/Humidity 0C to 35C @ 95% R.H. (non-condensing)
Storage Temperature -20C to 85C
Net Weight VMA2120: 29.3 lb (13.3 kg)
Dimensions Width: 17.0 inches (432 mm) Depth: 16.3 inches (415 mm) Height: 3.5 inches (88 mm)
Shipping Weight VMA2120: 34.5 lb (15.7 kg)
