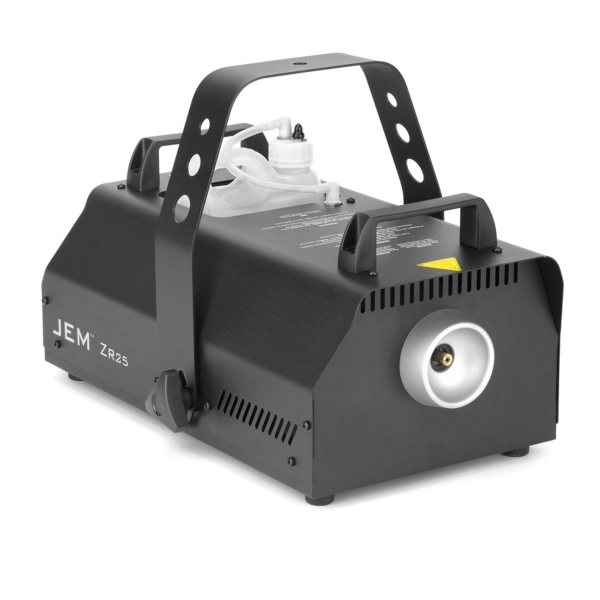

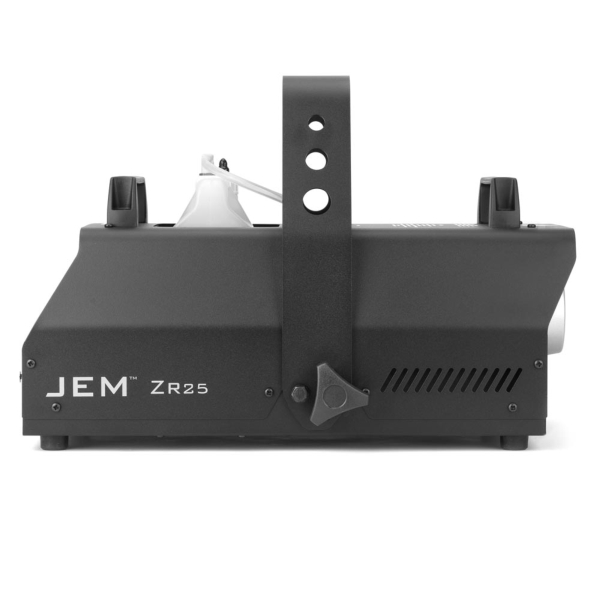

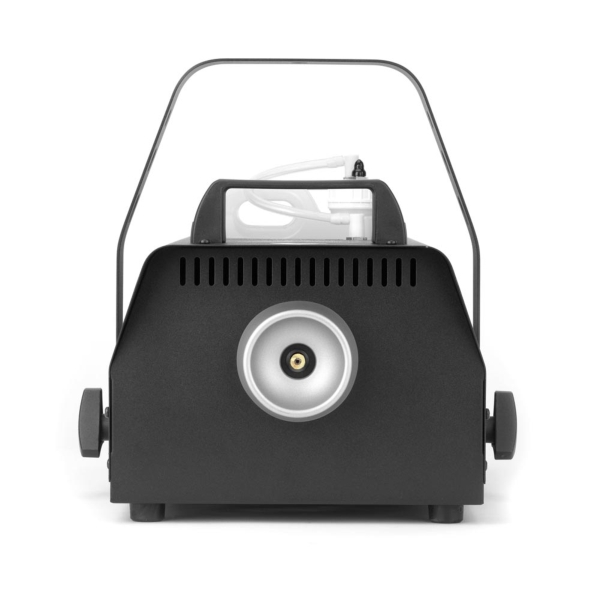

JEM ZR25 Smoke Machine

JEM ZR25 Smoke Machine

JEM ZR25 Smoke Machine

Price Each 455.87 Exc VAT or (547.04 Inc VAT at 20%)

.

Ref: JP11990

<Back

Click Here For PDF User Manual

The JEM ZR25 is a small, yet powerful fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its 1,150 W heat exchanger, the JEM ZR25 produces large amounts of fog ideal for small to medium-sized venues and stages in both install and rental markets. The JEM ZR25 features variable output control for more subtle effects and is fully up-to-date with digital remote, DMX and RDM. The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs continue to perform with great output and low consumption.

Features

1,150 W heat exchanger
40 ml in 30 seconds peak performance
600 m/min fog output
Variable output control for subtle effects
7-8 minute warm-up time
Digital remote, DMX and RDM
Compatible with a wide range of JEM Pro fog fluids
Floor standing or truss mounting (bracket included)
PowerCON TRUE1
2.5-liter bottle

Specifications

Control options: Integrated digital remote control, DMX, optional analog remote control, master/slave link mode
Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Maximum ambient temperature (Ta max.): 40 C (104 F)
Exterior surface temperature, steady state: 30 C (86 F)
Max. nozzle temperature: 290 C (554 F)
Coverage volume: 600 m3 (21,189 ft3) per minute
Fluid consumption (max.): 100 ml per minute
Continuous effect output
Ready time: 7 minutes
AC power: 220-240 V nominal, 50/60 Hz
Main fuse: 6.3 AT (slow blow), 250 V
Typical power and current: 1200 W, 5.3 A*
Housing: Steel and aluminum

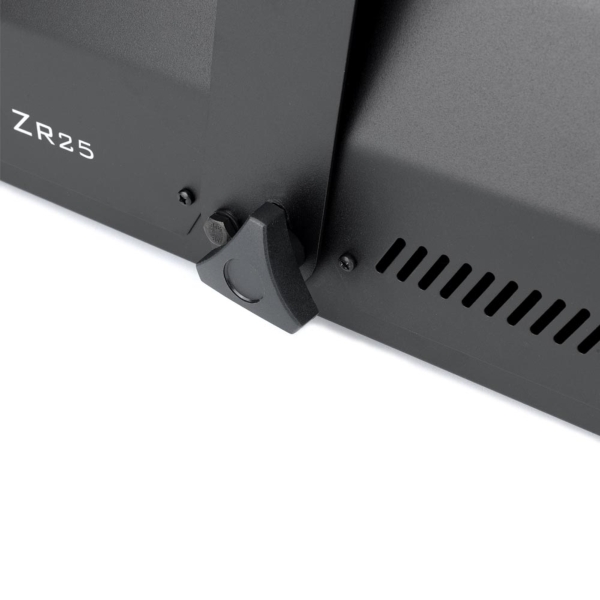

Hanging bracket: Integrated yoke with safety attachment point
Colour: Black
Heat exchanger: 1150 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation

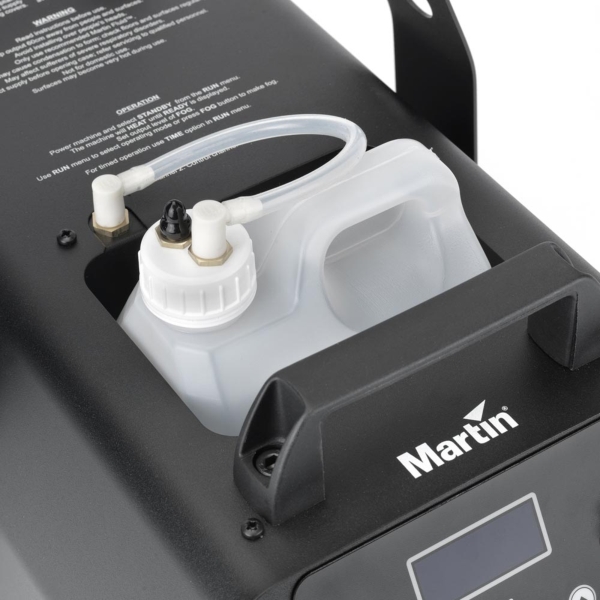

Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
External fluid control: Fluid sensing

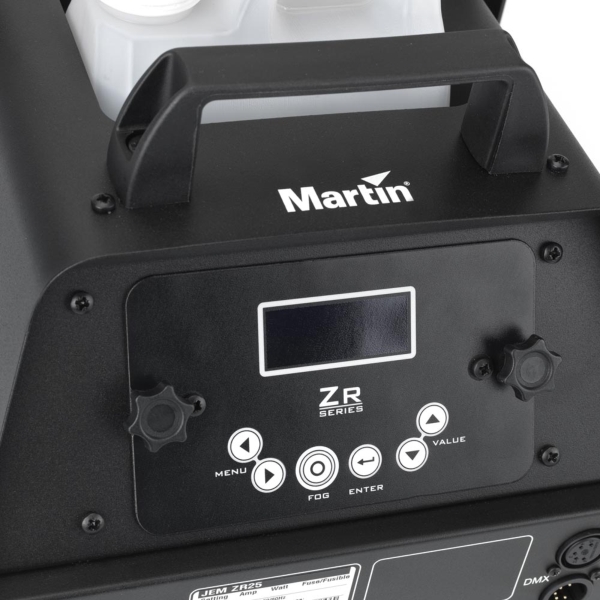

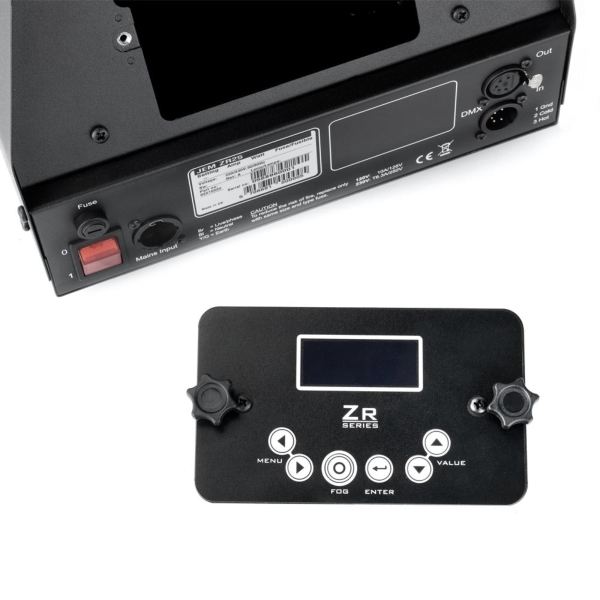

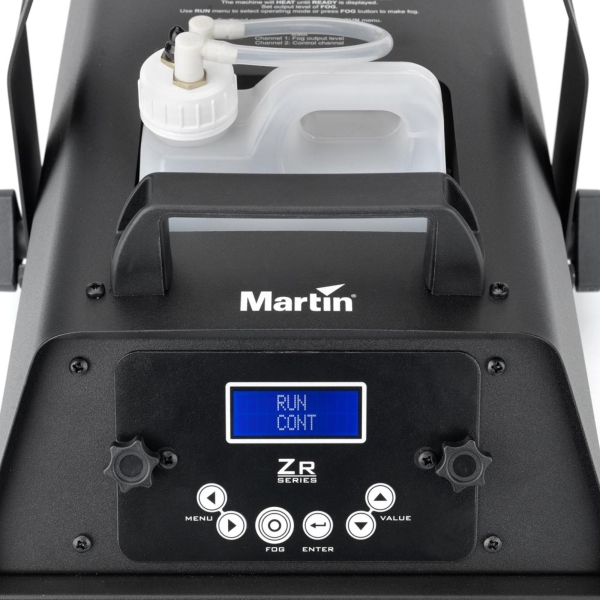

Remote control: Integrated Digital Remote with 3 m cable, 3-pin XLR
Mounting: Standing or hanging
Orientation: Up to +/-40 from horizontal
Clearance around machine: 100 mm (4 in.)

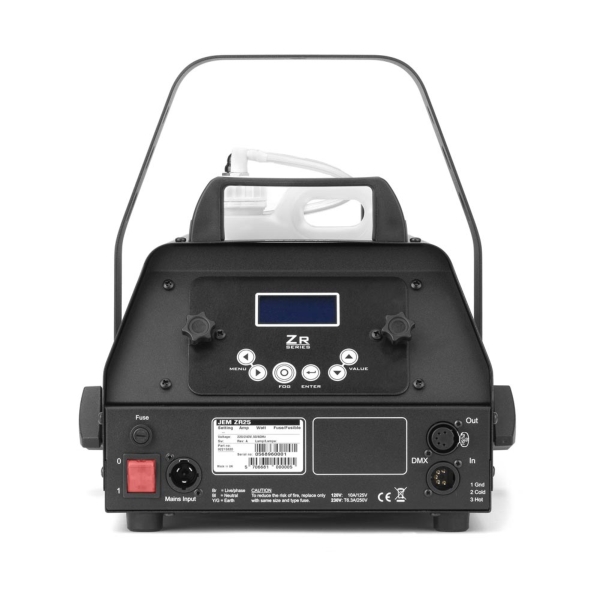

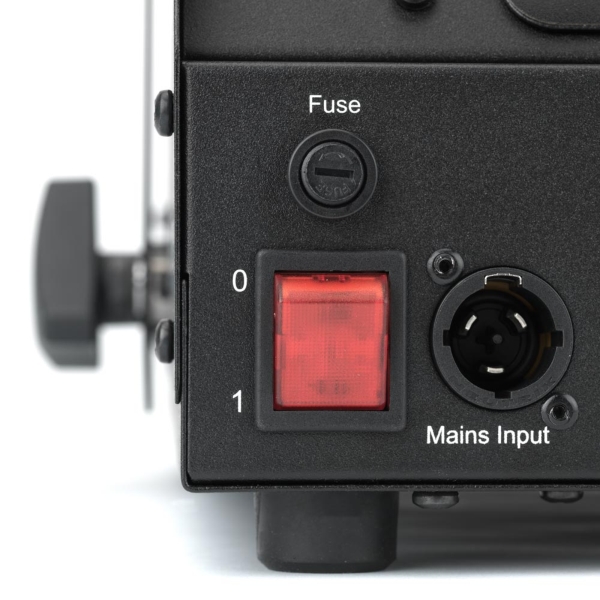

AC Power: Neutrik PowerCON TRUE1
DMX and link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
Length: 485 mm (19.1 in.)
Width: 335 mm (13.2 in.)
Height: 242 mm (9.6 in.)
Height including hanging bracket: 333 mm (13.2 in.)
Dry weight: 11.2 kg (24.7 lbs.)
Filled weight: 13.7 kg (30.2 lbs.)
EU safety: EN 60 335-1+A15, EN62233
EU EMC: EN 61000-6-3
EU immunity: EN 61000-6-1
