PCE IMST Distribution Box 32A 240V In, 4 x TR1 IP65 + 1 x 32A Out

Price Each £295.10 (£354.12 Including VAT at 20%)

REF: JP113663

Quantity:

PCE IMST Distribution Box 32A 240V In, 4 x TR1 IP65 + 1 x 32A Out

The PCE IMST Distribution Box offers a compact, reliable solution for splitting 32A 220-250V power feeds. It features one 32A output and four Seetronic Powertwist TR1 IP65 sockets, each protected by individual 16A MCBs, with an overall 32A RCBO for full circuit protection. Built from shock-resistant polyamide, it provides durability and safety for demanding event, touring, and industrial environments. The unit's stackable design, folding steel carry handle, and IP44 rating make it practical, portable, and ready for on-site use.

Click Here for Printer Friendly Version

PCE IMST Distribution Box Features

- Handy, robust, and lightweight 32A distribution box
- Shock-resistant polyamide housing

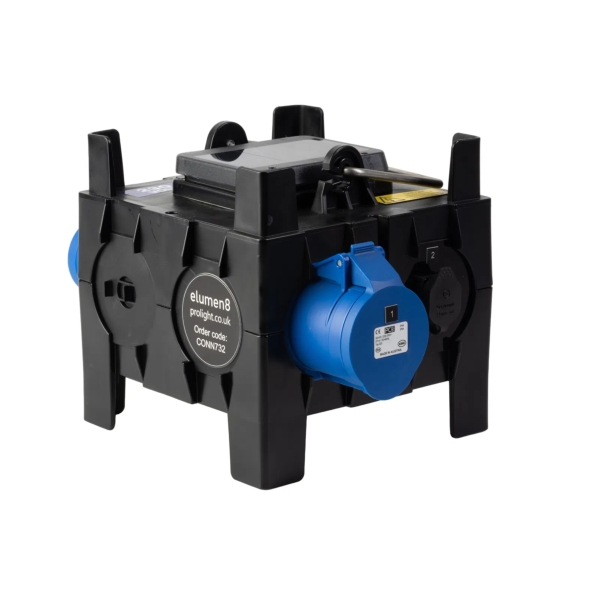

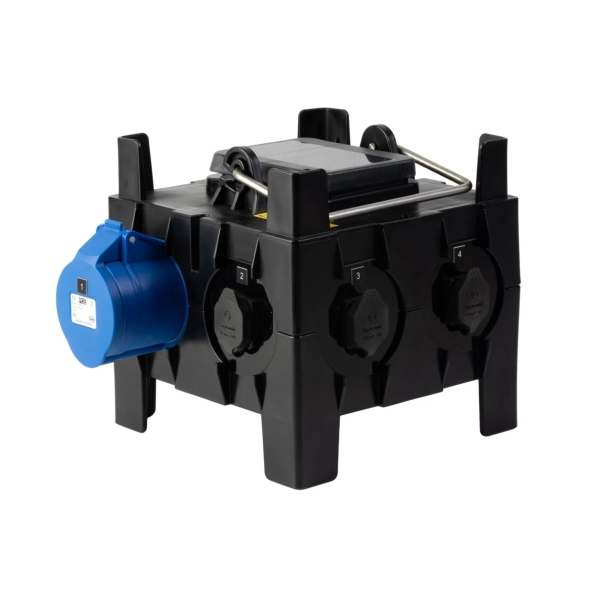

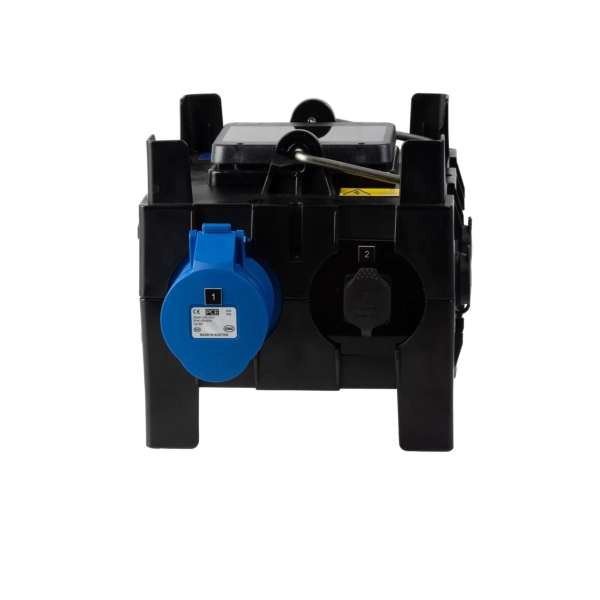

- 1x 32A 2P+E IP44 socket and 4 x TR1 IP65 outputs

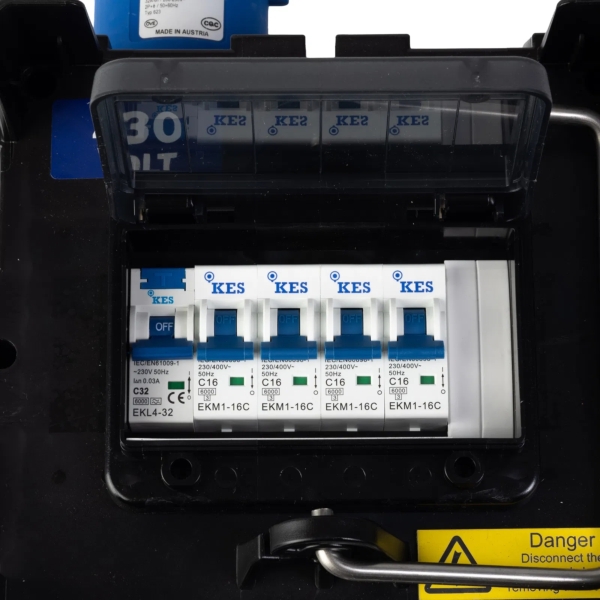

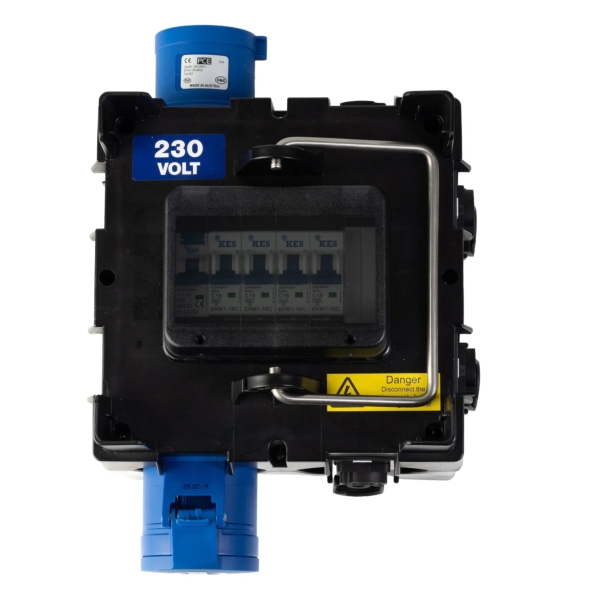

- Each TR1 output protected by 16A 1P MCB (C Curve)
- Type A 32A 30mA 2P RCBO protecting all outputs
- High-grade steel folding carry handle
- Stackable design for convenient storage and transport
- IP44 rated for dust and splash resistance
- Made in the EU

PCE IMST Distribution Box Specifications

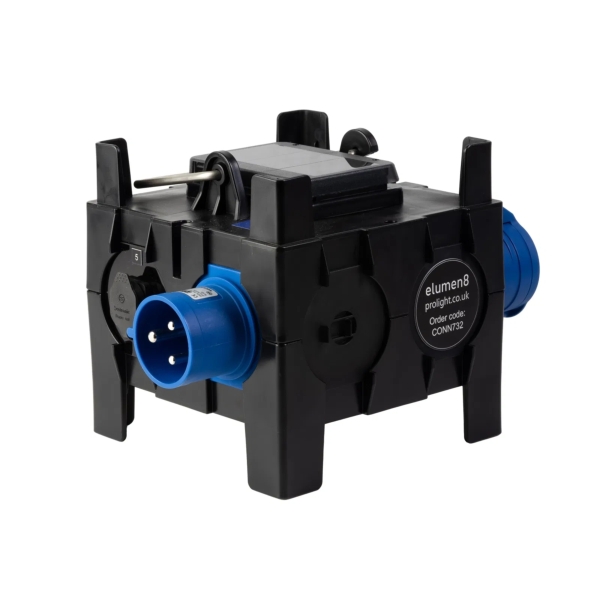

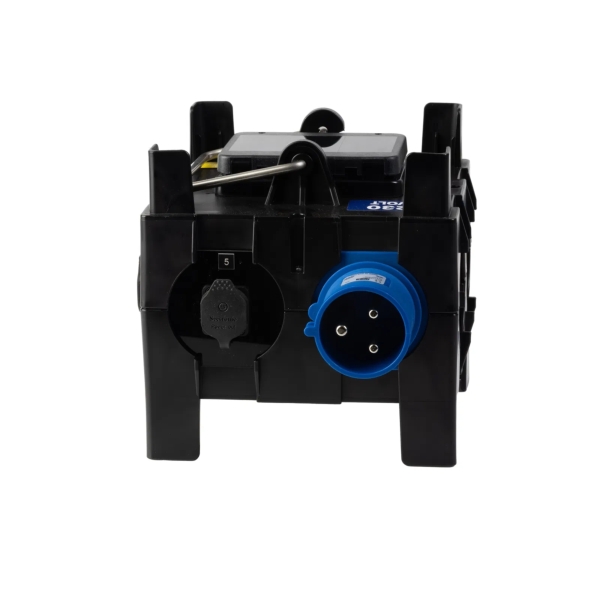

- Input: 32A 220-250V~50/60Hz 3-Pin 2P+E IP44 inlet
- Outputs:
- 1x 32A 220-250V~50/60Hz 2P+E IP44 socket

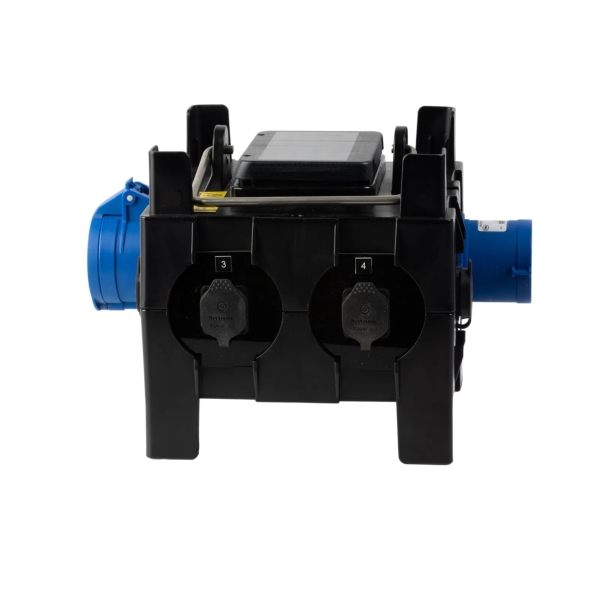

- 4x Seetronic Powertwist TR1 IP65 sockets (each with 16A MCB)
- Protection: Type A 32A 30mA 2P RCBO
- Modules: 6
- Material: Shock-resistant polyamide
- IP Rating: IP44
- Dimensions (H x W x D): 196 x 245 x 300mm (approx.)
- Weight: 2.7kg (approx.)
