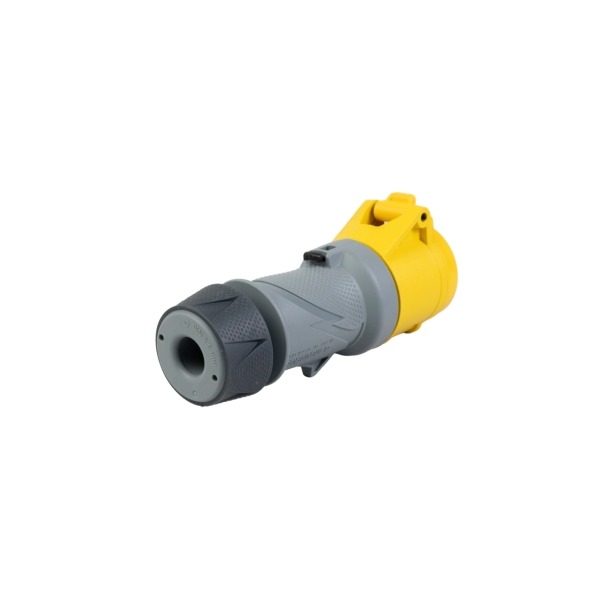

Mennekes 16A 110V 2P+E IP54 PowerTOP Extra Socket

Name: Mennekes 16A 110V 2P+E IP54 PowerTOP Extra Socket
Brand: Mennekes
Price: 9.26 GBP
Availability: InStock

Price Each £7.72 (£9.26 Including VAT at 20%)

REF: JP113900

Quantity:

Mennekes 16A 110V 2P+E IP54 PowerTOP Extra Socket

The Mennekes 16A 110V 2P+E IP54 PowerTOP Extra Socket excels with proven success factors: ergonomic design, easy installation, and safe and straightforward connection. The PowerTOP Xtra plug boasts IP54 protection class and is therefore impervious to water spray and dust.

Click Here for Printer Friendly Version

Mennekes 16A 110V 2P+E IP54 PowerTOP Extra Socket Features

- Screw connection technology ErgoCONTACT
- Economic enclosure design with nubbed grip areas
- Enclosure with thread lock and safety slide
- X-CONTACT
- Protection against kinking
- Strain relief
- Rubberised cable gland with sealing
- Area for self-adhesive labels

Mennekes 16A 110V 2P+E IP54 PowerTOP Extra Socket Specifications

- Ampere: 16A
- Number of poles: 3p
- Clock position: 4h
- Nominal voltage: AC110V
- Nominal frequency: 50-60Hz
- Protection type: IP54
- Contact carrier: standard
- X-CONTACT: yes
- Connection: screw terminals - ErgoCONTACT
- Contact screw drive: PZ2, slot
- Tightening torque connection terminal: 1.2Nm
- Recommended wire end treatment for supply cable connection: terminal ferrule square gasproof crimped
- Strip length jacket: 55mm
- Strip length conductor PH + N: 10mm
- Strip length conductor PE: 10mm
- Pilot contact: without pilot contact
- Conductor cross-section min.: 1mm²
- Conductor cross-section max.: 2.5mm²
- Cable kink protection: integrated in cable gland
- Protective grommet: without protective grommet
- Weight (net): 200g
- Packaging unit: 10pcs
- Quantity per pallet: 880pcs
- EAN / identification number: 4015394305491
- Permanent ambient temperature: -25°C to 40°C
- RoHS 2011/65/EU incl. 2015/863/EU
- POP regulation (EU) 2019/1021
- Norm: DIN EN IEC60309-2
- Declaration of Conformity: CE
- Test label: CB Zertifikat, VDE

Further Product Information Below

Data Sheet (PDF)
