PCE MCB Window, 12 Way IP67 (900612S)

Price Each £25.01 (£30.01 Including VAT at 20%)

REF: JP114886

Quantity:

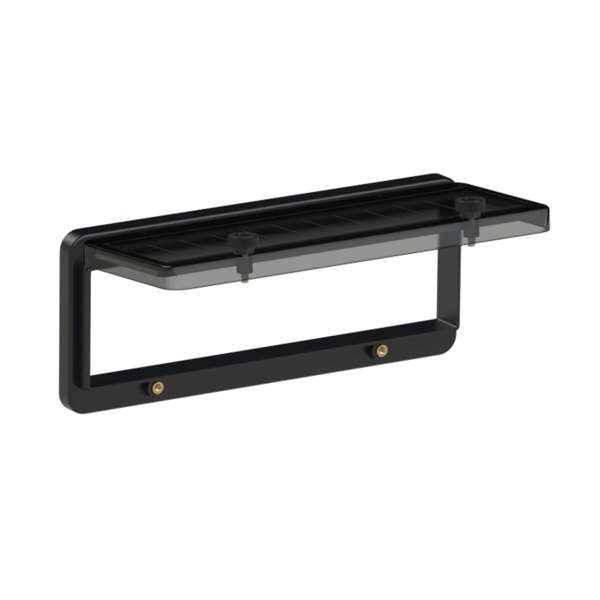

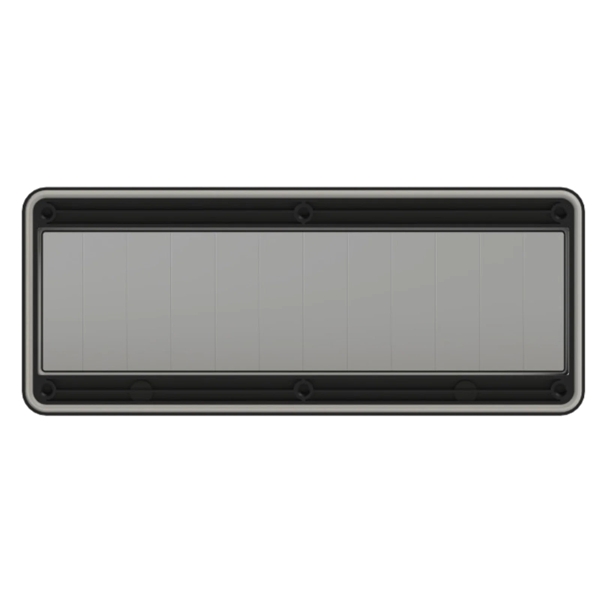

PCE MCB Window, 12 Way IP67 (900612S)

The PCE MCB Window, 12 Way suitable for distribution enclosures. Featuring two thumbscrews allowing the window to be sealed to prevent the window from being left open accidentally.

Click Here for Printer Friendly Version

PCE MCB Window, 12 Way Features

- Hinged window 12TE IP66/IP67 (black) with spring loaded closure
- Material (window/frame): Polycarbonate/PC-ABS
- Six thru hole mounting system
- Sealing gasket on the reverse side
- Protection degree: IP66/67

PCE MCB Window, 12 Way Specifications

- Dimensions (H x W x D): 93 x 229 x 25 mm
- Weight: 150 g

Further Product Information Below

PCE MCB Window Data sheet (PDF)

Technical Drawing (PDF)

Drill Plate (PDF)
