JTS 6 Way UF-20R Pick 'n' Mix Rack System - Channel 38 to 41

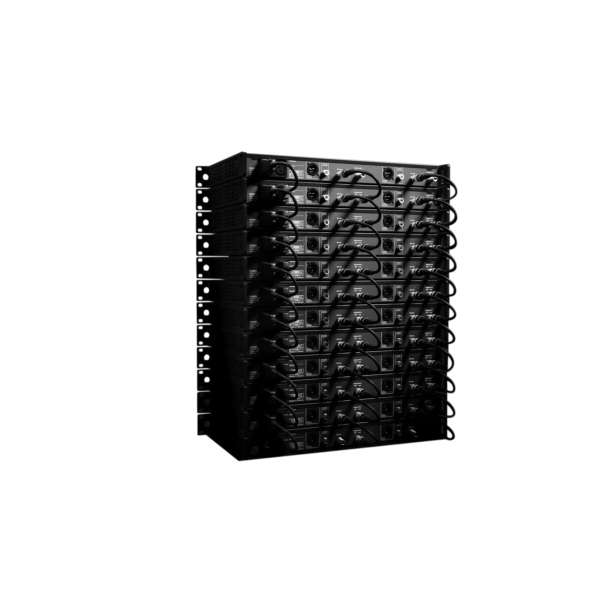

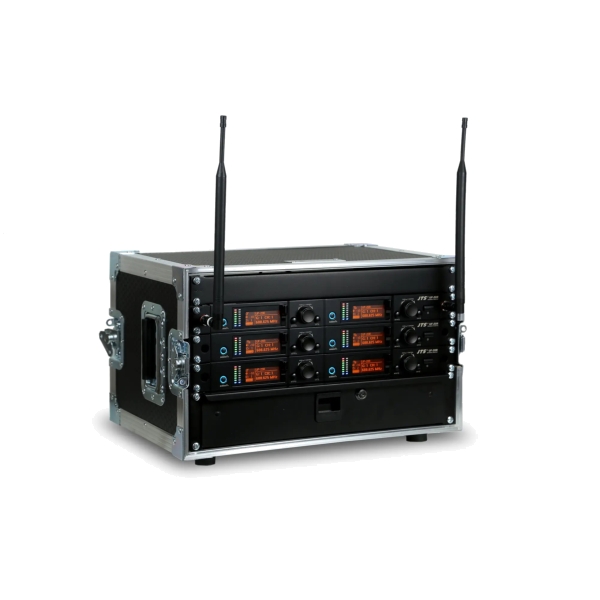

The JTS 6 Way UF-20R Rack Pick 'n' Mix System comprises of comprises 3 x UF 20 dual receivers racked together in a shallow flight case. a handy metal lockable rack drawer is provided together with a Rear to Front cable set in order to mount the antennas on the front of the rack.

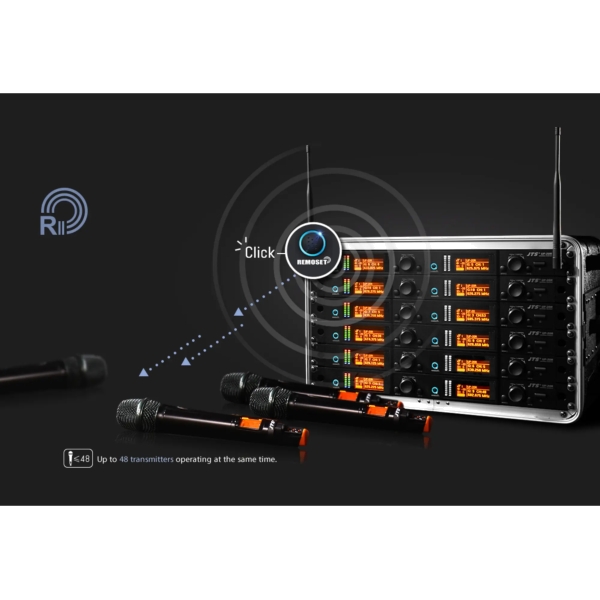

The JTS UF-20 true diversity, dual channel wide band UHF professional wireless system is supplied with Hand Held transmitters, Body Pack transmitters or a self selection 'Pick & Mix' option. It boasts an operating range of 200-480 meters and a one-touch set-up facility, REMOSET, which can set all parameters of the transmitter within an effective distance of 10 metres or more. Controllable via REMOSET are functions including Frequency Data, RF Power, Sensitivity, Low Cut, Key Lock and User name.
Built to the usual rugged JTS quality standard, the UF-20 also features extremely low companding noise, cascadable power and antenna distribution and an optional slide-in re-chargeable transmitter station is available.
The transmitter section is available as either the JSS-20 handheld transmitter or the UF-20TB beltback transmitter. Both are manufactured to the highest standards for professional use, featuring rugged aluminium alloy chassis. The JSS-20 features interchangeable capsule modules compatible with other microphone brands, if required. As standard it comes with the newly developed JTS SAM-8WLN capsule which delivers outstanding performance while minimising handling noise.
Further key features of the UF-20 include a maximum 3000 selectable frequencies across 75 MHz operation, 15 preset groups each of up to 63 compatible channels, user programmable 6 groups each of 64 channels, a free space scan function, Mute and Low Battery alert at the receiver display.
Please Note:
- Transmitters are sold separately. See related links for options.
- This will be supplied as individual items boxed to reduce the risk of transit damaged - so you will need to assemble the receivers into the rack.
Set up Tip: ID / Label the radio transmitters channel 1 to X number, then tune the receivers as per the Group and Channel allocation table- Power up the transmitters 1 at a time and place them 3M away from the rack, you can then use the Remo set function to sync the transmitter to the Receiver.
