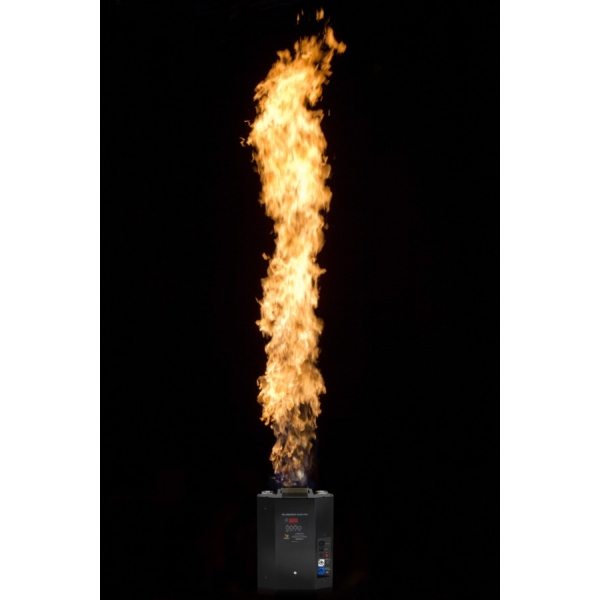

The Salamander Quad Pro - Code 4015 is a larger, more versatile system than the Salamander. A four canister system, it can be operated with each canister being fired independently and the option of multiple colours being loaded to provide a truly stunning visual display from a single machine. Firing the canisters sequentially can also be used to increase the duration of the effect, with up to 120 hits in total and each flame reaching around 3.5m -4.5m* in height. Alternatively, all four canisters can be fired at the same time to produce a much bigger single flame reaching up to a spectacular 6m-8.5m* – terrific for stadiums! (*Flame heights are approximate and depend upon fluid colours used)
A unique firing system which eliminates internal valves and accumulators, thus minimising the chance of the system becoming blocked or leaking.
Canister-based fluids, offering an ideal solution for anyone wanting to create a propane-style flame without the headaches. These eliminate the need for inconvenient external propane tanks, trailing pipes and multiple valves, enabling quick set-up and at a fraction of the cost.
A choice of colours – natural, red and green as well as a choice of fuels – butane/propane (natural canisters) and where the use of propane isn’t permitted, ethanol/methanol (red and green canisters), provide a great alternative solution.
A number of safety features including a safety tilt sensor as well as igniter monitoring are also incorporated.
The unit is operated through DMX, 5 channels (Igniter plus 4 Fire Channels), and Igniter Channel Address can be set independently from fire channels (eg, Fire: 2, 3, 4, 5; Igniter: 12).
A key feature of the original Salamander is its small footprint at just 204x170x433mm, and despite housing 4 canisters, the new Salamander Quad Pro is almost as compact at just 260x330x433mm.
Control and Programming
Onboard control panel
x4 Multi-function buttons
Control is via 5 channel DMX 512
DMX data filter ¡V in case of noisy DMX environments (can be disabled)
Tilt switch ¡V unit is disabled if tilted beyond 40 degrees (can be disabled)
Front & rear fixing points (M6 rivet bushes)
Coloured Flames max heights:
3.5m/12ft (x1 canister); 4.5m/15ft (x2 canisters); 5.5m/18ft (x3 canisters); 6m/20ft (x4 canisters)
Natural Flames max heights:
4.5m/15ft (x1 canister); 6m/20ft (x2 canisters); 7.5m/25ft (x3 canisters); 8.5m/28ft (x4 canisters)
30 seconds continuous flame per canister
Circa 120 fire balls (30 per canister)
Hot surface flame ignition provides a reliable ignition method
Natural canister use a propane/butane mix
Red and green canisters use an ethanol/methanol mix
Natural Fuel Cell: 500ml canister containing propane/butane mix
Red & Green Fuel Cells: 500ml canister containing ethanol/methanol mix
Orientation: Floor or Truss (with adaption)
Physical / Electrical
Size (HxWxL): 433 x 330 x 260mm
Weight: 16 Kg
Power: 230v, 50/60Hz, 250W, 3.15A
