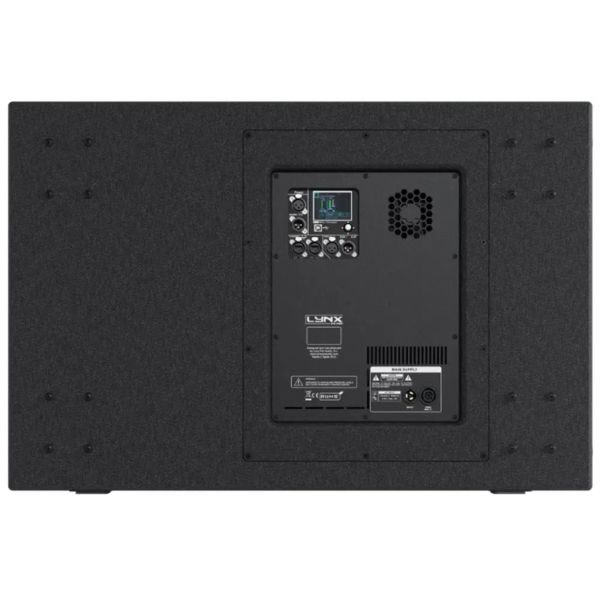

Lynx CPS-18S 18-Inch Bandpass Active Subwoofer, 3000W

Lynx CPS-18S 18-Inch Bandpass Active Subwoofer Features

- 18-inch neodymium LF driver with 4-inch QUATTRO copper voice coil
- 3000W Class D amplifier with switching PSU and PFC
- 6th-order band-pass design for extended low-frequency performance
- 64-bit/96kHz FIR DSP with EQ, delay, and user presets
- 2.8-inch IPS display with joystick for intuitive system control
- Quasi-omnidirectional low-end coverage
- Peak SPL up to 138dB
- Durable 15mm birch plywood enclosure with black polyurea finish
- Designed to complement CPS-214 point source systems
- Rear acoustic fabric and ergonomic handles for easy transport

Lynx CPS-18S 18-Inch Bandpass Active Subwoofer Specifications

- LF Driver: 1x 18-inch neodymium, 4-inch QUATTRO voice coil
- Frequency Range: 35Hz - 100Hz (-6dB)
- Max SPL: 138dB peak / 132dB continuous
- Sensitivity: 97dB (1W/1m)
- Amplifier Power: 3000W Class D with PFC
- DSP: 64-bit/96kHz FIR processing with built-in presets
- Control: 2.8-inch IPS display, joystick, USB, Ethernet (OCS compatible)
- Enclosure: 15mm birch plywood, polyurea-coated
- Dimensions: 600 x 900 x 750mm
- Weight: 62kg
