Lynx CPS-214 Dual 14-Inch Coaxial Active Loudspeaker, 6000W

Lynx CPS-214 Dual 14-Inch Coaxial Active Loudspeaker Features

- 3-way coaxial point source design with dual 14-inch neodymium LF drivers
- 2-inch exit dual-diaphragm coaxial compression driver (MF 3.5-inch VC, HF 1.5-inch VC)
- Rotatable 60° x 40° horn for horizontal or vertical orientation
- 6000W total Class D amplification (3000W LF, 3000W MF/HF)
- Integrated 64-bit/96kHz FIR DSP with linear-phase filters
- 2.8-inch IPS display with joystick for control and configuration
- Supports Ethernet control and Rainbow 3D prediction software
- Compact symmetrical design for versatile deployment
- Polyurea-coated birch plywood enclosure with internal bracing
- Designed for large venues, arenas, and fixed installations

Lynx CPS-214 Dual 14-Inch Coaxial Active Loudspeaker Specifications

- LF Drivers: 2x 14-inch neodymium, 4-inch dual-layer voice coils (2000W AES each)
- MF Driver: 3.5-inch voice coil diaphragm
- HF Driver: 1.5-inch voice coil diaphragm
- Frequency Response: 55Hz - 22kHz (-6dB)
- Maximum SPL (Peak): LF up to 143dB, MF/HF up to 142.6dB
- Dispersion: 60° horizontal x 40° vertical (rotatable horn)
- Amplifier: Class D, 6000W total (2 x 3000W channels)
- DSP: 64-bit/96kHz FIR with EQ, delay, presets, and filtering

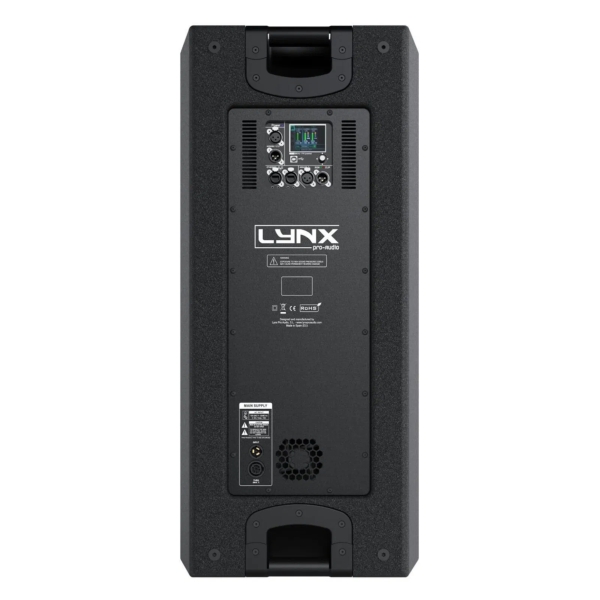

- Control: Ethernet, USB, joystick + IPS screen interface
- Construction: 15mm birch plywood with polyurea coating
- Connectors: XLR analog, optional AES/EBU, dual Ethernet, USB, powerCON TRUE1 TOP
- Dimensions: 900 x 420 x 515mm
- Weight: 49kg

Further Product Information Below

Lynx CPS-Series Manual (PDF)

Lynx CPS-214 Data Sheet (PDF)

Lynx CPS-Series Brochure (PDF)
